• Model NO.：TSLY-60
• Material：304 Stainless Steel or According to Customer Requi
• Rated Power：1.5kw
• Filting Paper：with
• Transport Package：According to Customer Requirements
• Specification：850*880*1000mm
• Trademark：AMBITIOUS
• Origin：China
• HS Code：8438600000
• Production Capacity：2000pieces,Year

Basic Info.

Model NO. TSLY-60 Material 304 Stainless Steel or According to Customer Requi Rated Power 1.5kw Filting Paper with Transport Package According to Customer Requirements Specification 850*880*1000mm Trademark AMBITIOUS Origin China HS Code 8438600000 Production Capacity 2000pieces/Year

Product Description

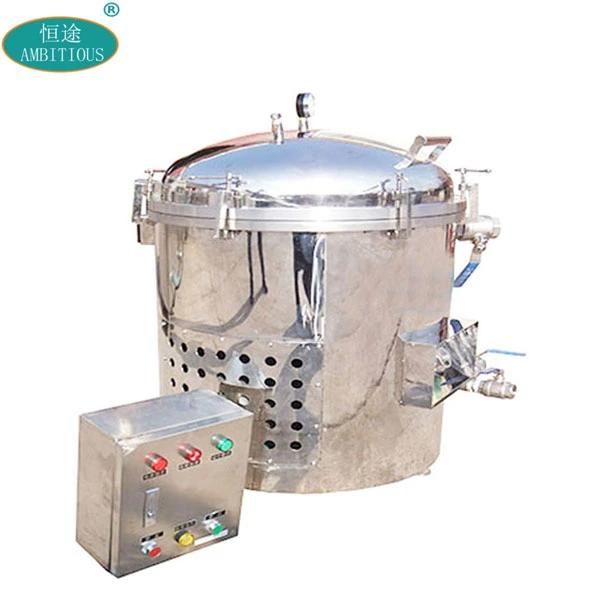

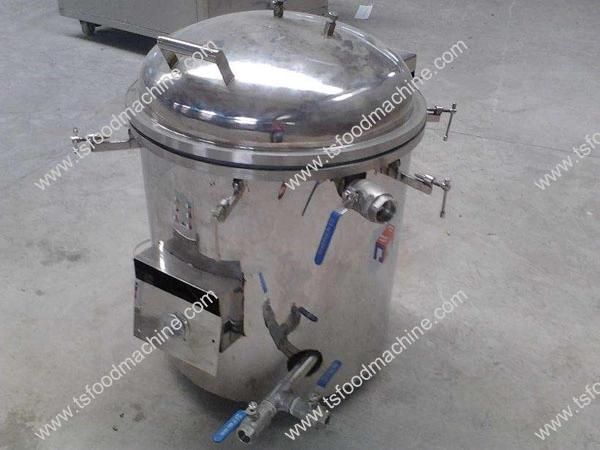

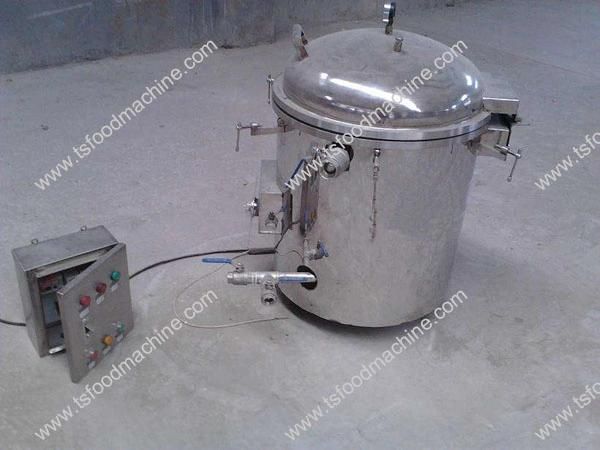

1.- Fryer Filter Unit Filtering Machines Frying Oil Filter Machine

Frying oil filter is widely used for oilf filtering of potato chips,fried chicken,fried bean curd,fried fish,instant noodles,fried nuts,shrimp,and other fried foods.It can improve and delay the aging of edible oil.


Features:

1. Frying oil filter works with negative pressure created by vacuum circumstance to suck the high-temperature frying oil of frying machine into the filter chamber, and then it is sent back to the frying machine after being purified by filter paper.

2. Through filtration, the impurities above 5 μ m and other harmful substances are basically separated, so as to inhibit the increase of acid value of frying oil and the production of peroxide, improve the frying environment, reduce oil consumption and improve product quality.

3. It can effectively filter out the suspended particulate impurities in frying oil, significantly improve the frying environment, inhibit the increase of frying acid value, prevent oxidation, greatly extend the service life of frying oil, and improve the appearance and color quality of fried food.



 2.- Applications of Filtering Machines Frying Oil Filter Machine
Mainly used for filtering the oil on the surface of fried foods and vegetables, such as nuts, onions, but it is not available for fragile foods such as crisps.




3. -Technical Index of Filtering Machines Frying Oil Filter Machine


Model	TSLY-60
Power	1.5KW
Voltage	380V/50HZ
Overall Dimensions	850*880*1000mm

.

4.-Packaging and Delivery

Packaging	With Wrapping film and in wooden case, or according to the customer needs.
Delivery Time	20-30 Working days.
Shipping Type	By sea, railway, etc.

5. -Introduction of Our Company

Zhucheng Tianshun Machinery Co.,Ltd. has grown into a large, specialized food machinery manufacturing enterprise which integrates R & D and manufacturing. Currently has more than 100 employees, the division of labor is professionalization and specific, there are technical department, after-sales service department, domestic marketing department, international business department, etc. The company has all kinds of welding equipment, machining equipment to meet the needs of different customers.

Main products: Food machinery and complete production lines, including:
Vegetables&fruits cutting machines,
Peeling&washing machines,
Frying equipment,
Air drying machinery,
Blanching&cooking machine,
Food flavoring machine,
Food coating machine,
Packing machine,
Freeze dryer,
Complete production lines,includes potato chips/french fries production line,plantain chips production line,vegetable processing
line,etc.

All of them can be designed semi-automatic and full automatic, and widely used for processing varieties of vegetable, fruits, fish, seafood, etc. Some of them have pass the CE certificate. All of them could be customized, and we also provide and design individual machines for customers.
