• Model NO.：1500L
• Material：SS304
• Tank Thickness：Inner 3mm Outside :2mm
• Temperature Control：Automatic
• Heating：Gas Steam Generator
• Heat Insulation：Rock Wool Th:80-100mm
• Inner Surface：Pickled and Passivation
• Welding：Argon Arc TIG 100%
• Function：Boiling Wort
• Transport Package：Steel Frame or Wooden Case
• Specification：as customer request
• Trademark：Zunhuang
• Origin：China
• Production Capacity：500piece

Basic Info.

Model NO. 1500L Material SS304 Tank Thickness Inner 3mm Outside :2mm Temperature Control Automatic Heating Gas Steam Generator Heat Insulation Rock Wool Th:80-100mm Inner Surface Pickled and Passivation Welding Argon Arc TIG 100% Function Boiling Wort Transport Package Steel Frame or Wooden Case Specification as customer request Trademark Zunhuang Origin China Production Capacity 500piece

Product Description

1000L Brewery Specifications


Item	Capacity
Malt miller	300-500KG/H
Mashing system	1500L 2-vessel brewhouse (mash&lauter tun + boil kettle&whirlpool tank) -Hot water tank Heating method can be steam or direct fire.
Fermentation system	1000L / 2000L
Cooling system	3000L glycol water tank + chiller
Control system	PID / PLC
CIP cleaning system	Disinfection tank + alkali tank
Necessary parts	Fitting

Mash & Lauter TUN

• Volume + ~30% headspace
• Inner-shell (SUS304L), thickness: 3.0mm;
• External-shell (SUS304L), thickness: 2.0mm;
• Insulation: Rock wool thickness: 100mm;
• Inner surface is pickled and passivated.
• Mash rakes with grain out plow
• Sparge arm; False bottom, Laser filter with 0.7mm gap;
• PT100 Temperature sensor probe;
• Spent grain manway
• Glass manhole(glass): Φ500mm;
• Balancing tank / grant
• Sparging monitoring level gauges
• CIP spray ball

KETTLE / WHIRLPOOL

• Volume + ~50% headspace
• Inner-shell (SUS304), thickness: 3.0mm;
• External-shell (SUS304), thickness: 2.0mm;
• Insulation: Rock wool,thickness: 80mm;
• Inner surface is pickled and passivated.
• Tangential port
• Level gauge
• PT100 Temperature sensor probe;
• Glass manhole(glass): Φ500mm;
• CIP spray ball
• Condensation stack valve
• Indoor exhausted device

HLT

• Volume + ~30% headspace
• Inner-shell (SUS304), thickness: 3.0mm;
• External-shell (SUS304), thickness: 2.0mm;
• Insulation: Rock wool thickness: 80mm;
• Inner surface is pickled and passivated.
• Level gauge
• PT100 Temperature sensor probe;
• Top manhole.
• Overflow pipe
• CIP spray ball

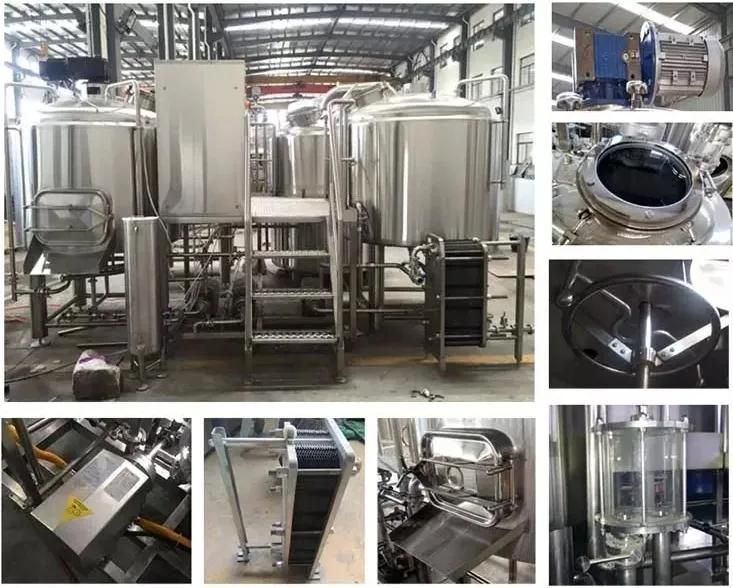

Gas steam generator:

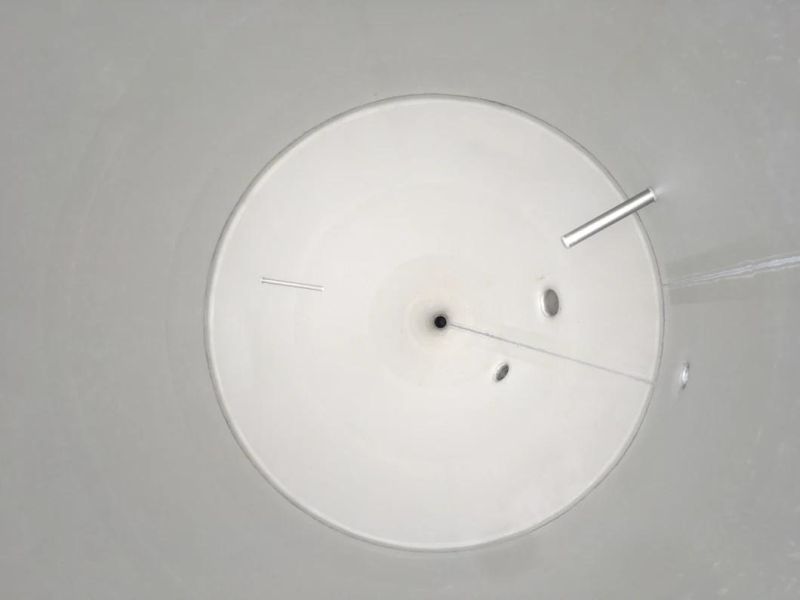

Inner surface pickled and passivation:

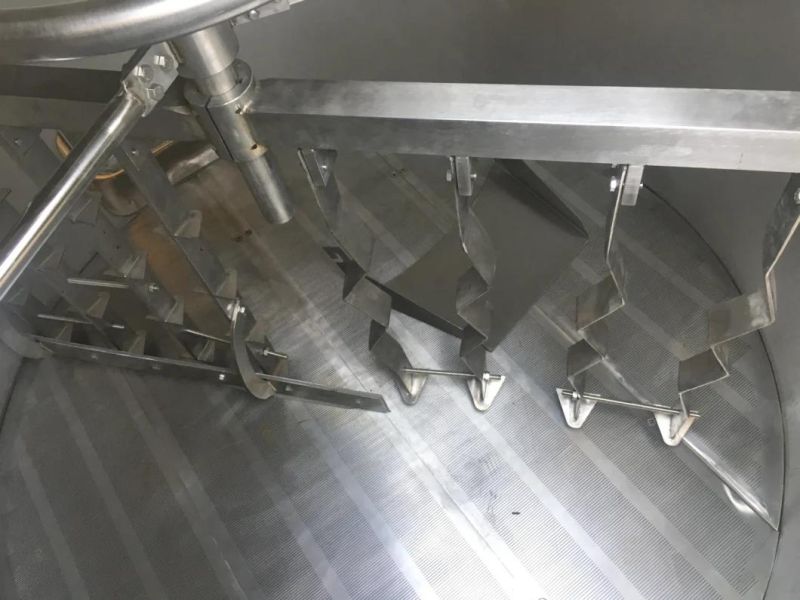

Lauter tun inside with raker:

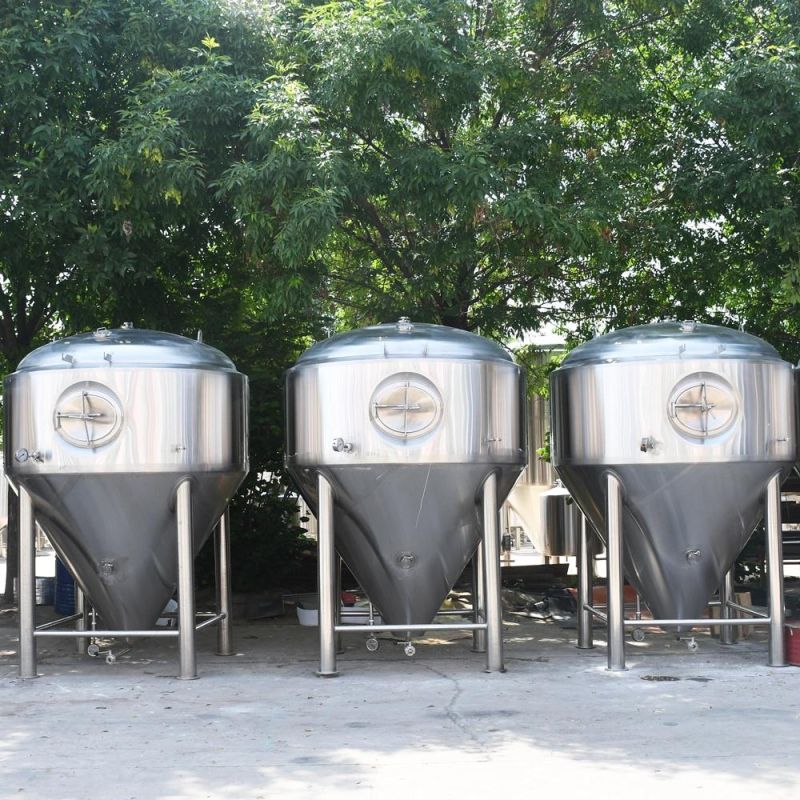

Fermentation tank details:

Fermenter cooling method is cooling dribbling with standard parameters, layout and control mode in domestic. Zunhuang companies design and manufacture cooling dribbling according to 0.4-0.5 meters per cubic meter cooling area. And the fermentation tank adopt two-stage cooling refrigerant control mode at the end of the cone and the tank level 10--15cm down. So such design and cooling method to control the flow of the cooling liquid state in fermentation tank by the size of the two-stage cooling refrigerant flow. It will improve heat transfer efficiency and cooling rate, faster cooling, and reduce cooling costs and high economic efficiency equipment commercial operation.

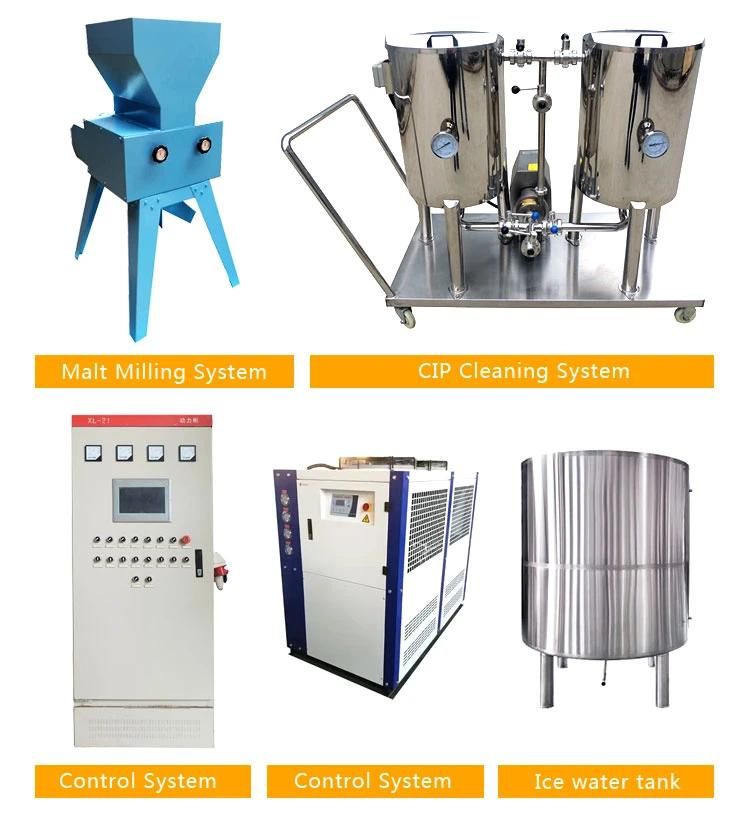

Other Auxiliary Equipment:

1.Malt crusher

2.CIP Cleaning system

3.Control cabinet

4.Cooling system includes glycol tank and chiller unit

Ten provide to service you:
1. After-sale Service for the whole life.
2. 24h service for you, solve your urgent problem first time.
3. 3 years warranty for the main products.
4. Free design for your brewery layout for 2D or 3D.
5. Spare parts replacement and repair service provided.
6. Engineer going abroad for installation, debugging and technical training if you need.
7. Provide the Form E, CO, etc..others necessary reduce import Tax files for you.
8. To provide update information about brewing equipment technology once we test.
9. Help you send the goods if you have others company order, then send to you together.
10. Door to Door service, if you need any brewing parts.
Certificate:
1.Q: Are you a manufacturer?
A: We are the manufacturer of beer brewing equipment for 16 years.

2.Q:Can I have the customized products for myself?
A:Yes,we can design and manufacture as client's requirements.

3.Q: Can you guarantee your quality?
A: All of our products is applied with CE certificate and highly in accordance with GMP. Equipment is made of high quality of SUS304/316. Inspect certificate is available.

4.Q:How about the after sales service?
A:For our after-sale service, we promise all life of technical support to new and old customers.
All of our products is available with 10 years warranty even for spare parts within quality warranty period, our service is free of charge.
