7bbl Brew Kettle Craft Beer Making Machine Brewery Equipment

Shandong Zunhuang Brewing Equipment Co., Ltd.
  • Condition：New
  • Customized：Customized
  • Voltage：380V
  • Composition：SS304
  • Processing Material：Beer
  • Process：Boiling

Base Info

  • Model NO.：7bbl
  • Material：SS304
  • Tank Thickness：Inner 3mm Outside :2mm
  • Temperature Control：Automatic
  • Heating：Gas Steam Generator
  • Heat Insulation：Rock Wool Th:80-100mm
  • Inner Surface：Pickled and Passivation
  • Welding：Argon Arc TIG 100%
  • Function：Boiling Wort
  • Transport Package：Steel Frame or Wooden Case
  • Specification：as customer request
  • Trademark：Zunhuang
  • Origin：China
  • Production Capacity：500piece

Description

Electric/Steam/direct fireArea Request>25M2>30M2>45M2>50M2>60M2>70M2Brewmaster111111

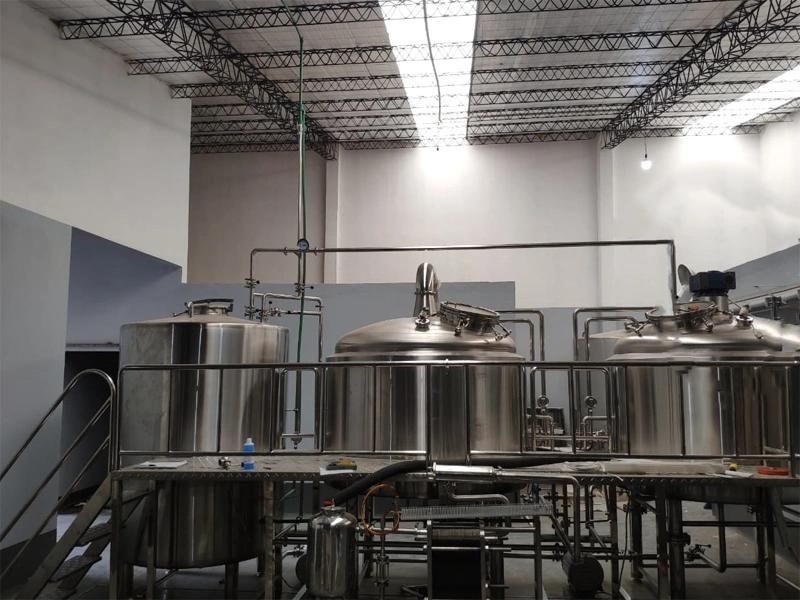

500L brewhouse: mash & lauter, boiling kettle$whirlpool.  with hot liquid tank
7bbl Brew Kettle Craft Beer Making Machine Brewery Equipment

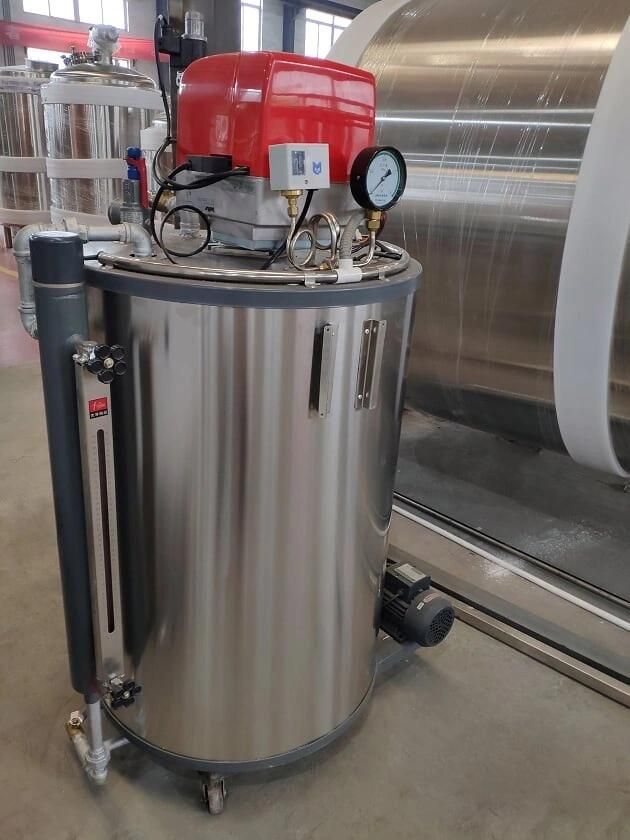

Gas steam generator:
7bbl Brew Kettle Craft Beer Making Machine Brewery Equipment

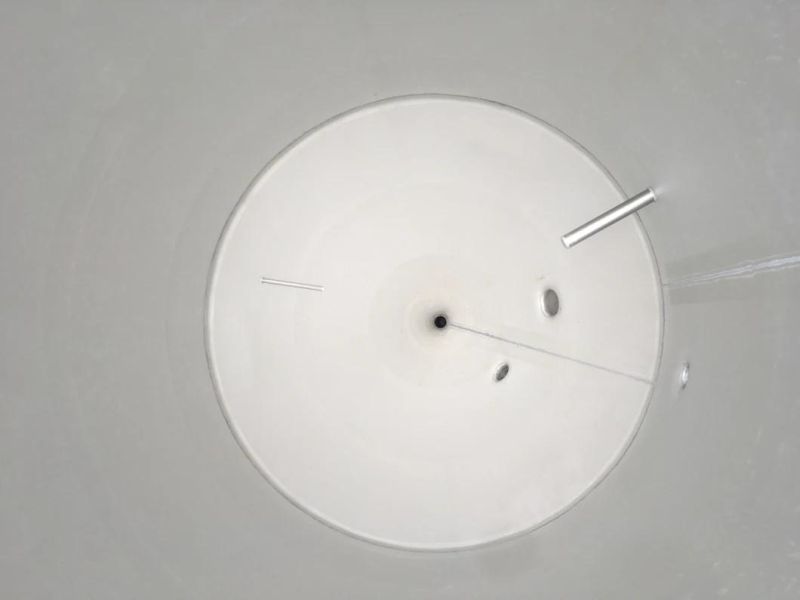

Inner surface pickled and passivation:
7bbl Brew Kettle Craft Beer Making Machine Brewery Equipment
Mash &Lauter tun inside:
7bbl Brew Kettle Craft Beer Making Machine Brewery Equipment

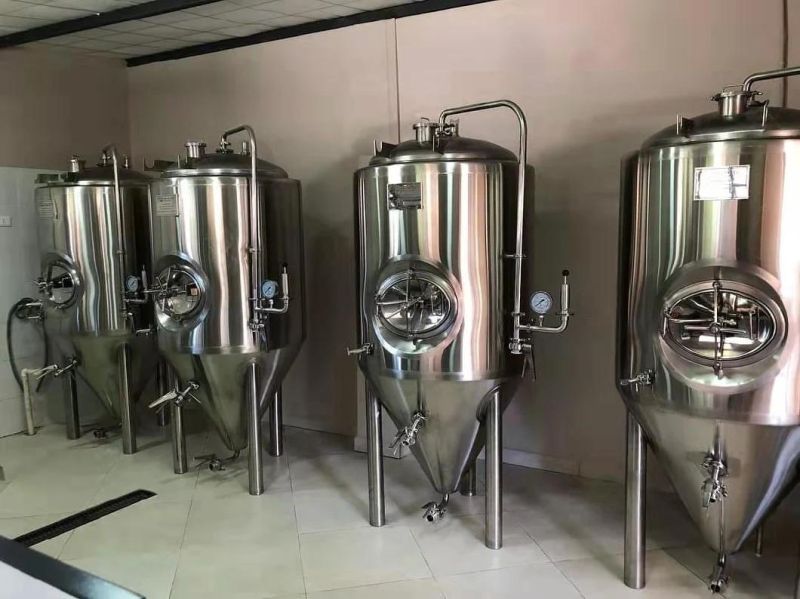

Fermentation system:

1. Capacity:500L OR 1000l working volume +25% Head space
2. Interior shell thickness 3-6mm, Exterior shell=2mm
3. 100% TIG welding with pure argon gas shield
4. Interior finish: pickled and passivated, external polished, 80mm insulated
5. Test pressure 3 bar, working pressure 1.5 bar
6. Glycol zones (Both on side and concial/bottom)
7. 60°conical bottom for Fermener, Shadow less side man way
8. Racking arm, Sample valve, Pressure relief valve on the top, Dry hopping on the top
9. Mechanical relief valve 3 bar on CIP arm with pressure gauge
10.Adjustable tank leveling pads.
7bbl Brew Kettle Craft Beer Making Machine Brewery Equipment

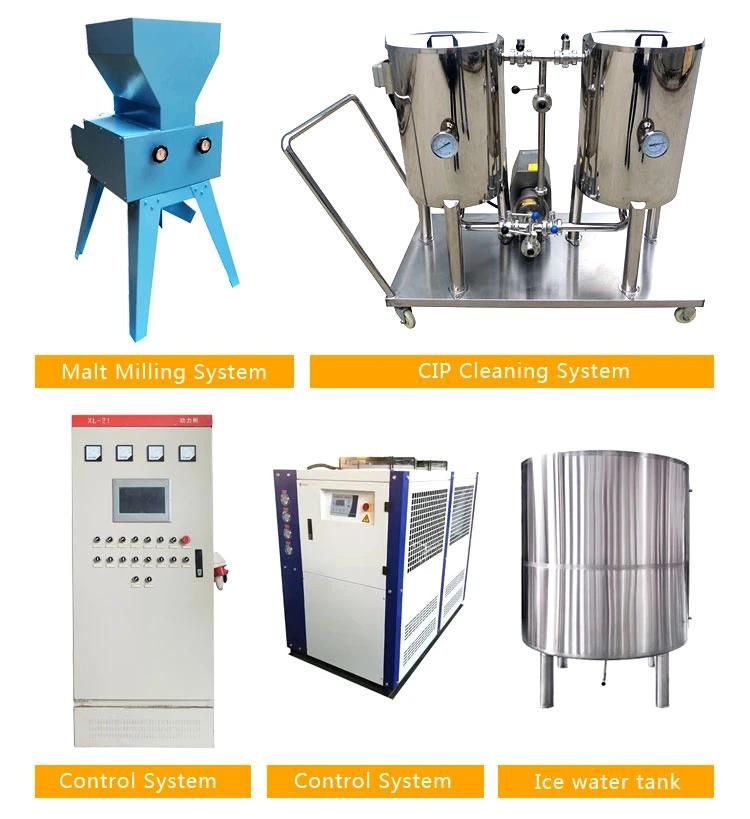

Auxiliary equipment:

7bbl Brew Kettle Craft Beer Making Machine Brewery Equipment
