• Model NO.：CSK-180
• Application：Ham Sausage or Cheese
• Customized：Customized
• Transport Package：Wooden Case
• Specification：L760*W750*H1770(mm)
• Trademark：YH
• Origin：China
• HS Code：8434200000
• Production Capacity：100sets,Year

Basic Info.

Model NO. CSK-180 Application Ham Sausage or Cheese Customized Customized Transport Package Wooden Case Specification L760*W750*H1770(mm) Trademark YH Origin China HS Code 8434200000 Production Capacity 100sets/Year

Product Description

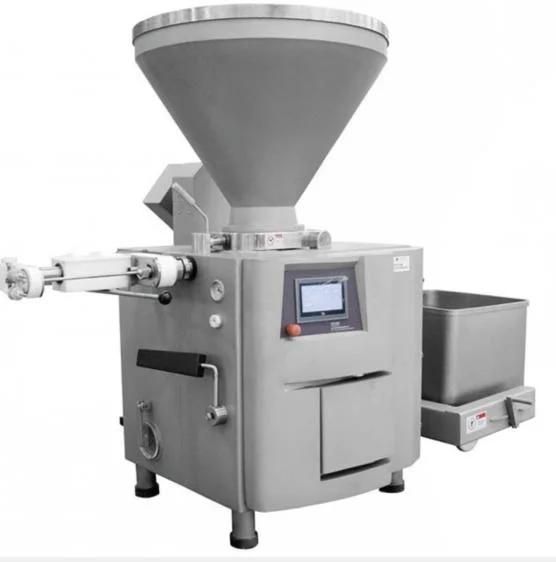

Cheese extrude(ZKG6500):

Features:

1. The filling and twisting of ZKG6500 vacuum blade quantitative filling machine are driven by a servo motor and equipped with a vacuum system to ensure that the filling process is carried out in a vacuum state.
2. The man-machine interface, servo motor, reducer, and PLC controller equipped with this machine are all imported parts, equipped with a hoist, which can automatically load materials and save manpower.
3. The machine adopts a vane type (also called scraper type) filling method, automatic quantitative portioning, and can be connected with a dual card machine to become a filling-punching automatic production line.
4. The filling process is completed in a vacuum state, which can effectively prevent fat oxidation, avoid proteolysis, reduce bacterial survival, and effectively ensure the shelf life of the product and the color of the product, and the taste is mellow.
5. The pump body, impeller and blade of this machine adopt a special heat treatment process, with high smoothness, good wear resistance and easy cleaning.
6. The error of normal minced products does not exceed ±1.5g, and the error of normal block products does not exceed ±3g. Quantitative range 5g-9999g, DC amount 6500kg/h.
7. This machine has an automatic kinking function and is suitable for natural casings, protein casings and smoked casings,the kinking speed of the smoked film is the fastest 400 times/min.

Technical parameter:

Model	ZKG6500
Voltage	380V
Power	7.4KW
Filling and twisting speed	Stepless speed regulation
Tank capacity	220L
Vacuum	-0.08Mpa
Maximum output	6500kg/h
Dimension	L2100*W1400*H2140(mm)
Weight	About 1000kg

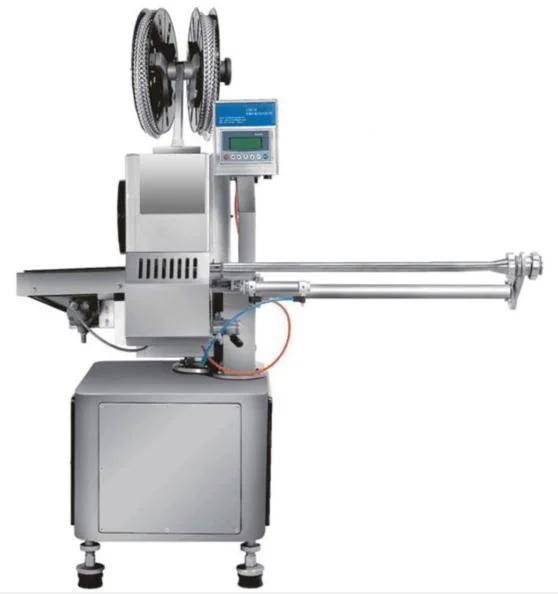

Punch close machine(CSK-180):

Features:

1. The machine has tight sealing, beautiful buckle shape, firmness and reliability.
2. This machine is driven by imported servo motor PLC, multiple cam combinations complete the punching function, compact structure, reliable transmission.
3. The body is made of high-quality aluminum alloy and stainless steel, and its main parts and transmission components are made of stainless steel and high-quality steel.
4. This machine can be used in conjunction with various types of filling machines to form a filling, sealing, and cutting production line, so that your product quality and output can reach a new level.
5. The comprehensive mechanical properties and corrosion resistance of the whole machine can meet your production needs.
6. This machine is controlled by a servo motor, with adjustable speed. The protection level of control and operation electrical appliances is IP67.
7. This machine can be equipped with double-tube filling, which doubles the work efficiency.

Technical parameter:

Model	CSK-180
Voltage	220V±10%(Servo Control)
Power	3.5KW
Applicable Great Wall Card	18-9buckles
Applicable casing folding diameter	30-180(mm)
Gas source	Working pressure 0.5-0.6Mpa
Punching speed	0-120times/minute
Dimension	L760*W750*H1770(mm)
Weight	About 760kg
