• Model NO.：GD150Q
• Origin：China
• Production Capacity：1 Set,Month

Basic Info.

Model NO. GD150Q Origin China Production Capacity 1 Set/Month

Product Description

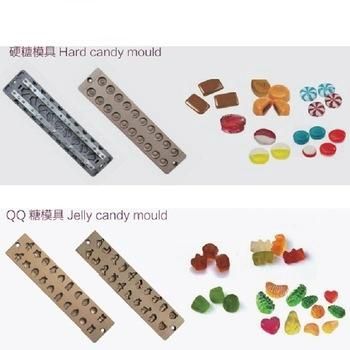

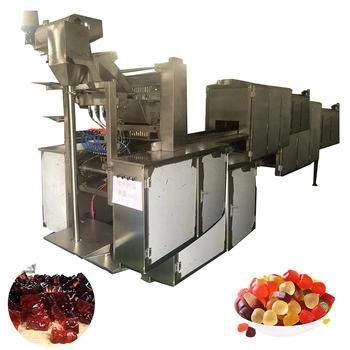

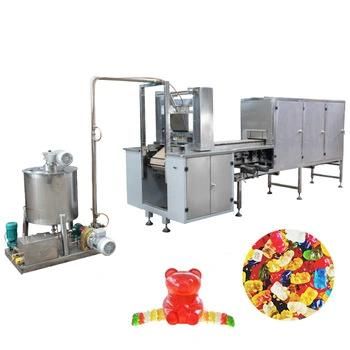

This production line for gummy candy the whole production line 18 meters at length,  and only 260pcs moulds required for this line.

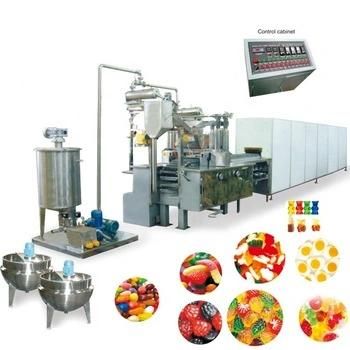

The processing line is an advanced and continuous plant for making different sizes of gelatin-type soft candies. It is an ideal equipment which can produce out good quality products with the saving of both the manpower and the space occupied.


Model	GD150Q
Production capacity   ( kg/h)	150-200
Rated depositing times(n/min)	25~55
Electric power needed	16kw/380V
Refrigerator	MT120   15,000 kcal/h
Compressed air consumption Compressed air pressure	0.20m3/min 0.4-0.6 Mpa
Conditions needed for  the cooling system: 1.Room temperature(ºC) 2.Humidity (%)	20-25 55
Length of the whole line   (m)	18
Gross weight           ( Kgs)	3,000

After sale service.



Our company



Certificate
