• Model NO.：LG200
• Condition：New
• Customized：Can Be Customized
• Product Name：Salt Grinder Pepper Grinding Machine
• Capacity (Kg/H)：30-120
• Work Noise：<85
• Thickness (Mesh)：10-200
• Voltage (V)：220,380
• Power (Kw)：2.2
• Speed of Main Shaft：4200
• Size(mm)：480*520*1040
• Weight (Kg)：80
• Transport Package：Wooden Packing as Export Standard
• Specification：480*520*1040mm
• Trademark：LONGER
• Origin：Henan
• Production Capacity：30-120kg,H

Basic Info.

Model NO. LG200 Condition New Customized Can Be Customized Product Name Salt Grinder Pepper Grinding Machine Capacity (Kg/H) 30-120 Work Noise <85 Thickness (Mesh) 10-200 Voltage (V) 220/380 Power (Kw) 2.2 Speed of Main Shaft 4200 Size(mm) 480*520*1040 Weight (Kg) 80 Transport Package Wooden Packing as Export Standard Specification 480*520*1040mm Trademark LONGER Origin Henan Production Capacity 30-120kg/H

Product Description

Sugar Herbs Powder Milling Machine Grain Salt Grinder Pepper Grinding Machine

♦ 1.Application of chilli powder making machine:
The powder grinding machine has wide application, it's wide used for pharmaceutical industry, chemical industry foodstuff industry, grain industry and so on.
♦ 2.Introduction of Chilli Grinding Machine:
This salt grinding machine uses the relative motion between movable and fixed fluted discs, the raw materials to be crushed undertakes the comprehensive actions such as impacted by teeth, friction, impacted between raw materials are crushed. The pepper grinding machine's features are simple and solid in structure, stable in operation, high crushed efficiency. The crushed raw material can be discharged through the grinding chamber. Moreover, different size of raw material to be crushed can be got through exchanging screen with different mesh.
The sugar grinding machine's inner wall is processed finely, so it is smooth and level.
♦ 3.Advantages of herb grinding machine:
All the parts in the chamber which contact materials surficial parts are made of stainless steal, it's in conformity with the requirements of state standard and meet the requirements of GMP
According to customer needs, may increase water cooling device and conveyor screw.Details plscontact us.
♦ 4.Parameter of powder grinding machine:

Model	Capacity (Kg/h)	Work noise	Thickness (mesh)	Voltage (V)	Power (KW)	Speed of main shaft	Size (mm)	Weight (kg)
LG200	30-120	<85	10-200	220/380	2.2	4200	480*520*1040	80
LG300	60-200	<85	10-200	380	5.5	4200	750*600*1260	180
LG400	80-300	<85	10-200	380	7.5	4200	780*700*1350	260
LG500	100-500	<85	10-200	380	11	4200	800*900*1550	320
LG600	500-1000	<85	10-200	380	15/22	4200	1200*1000*2000	520

♦ 5.Finished product show:

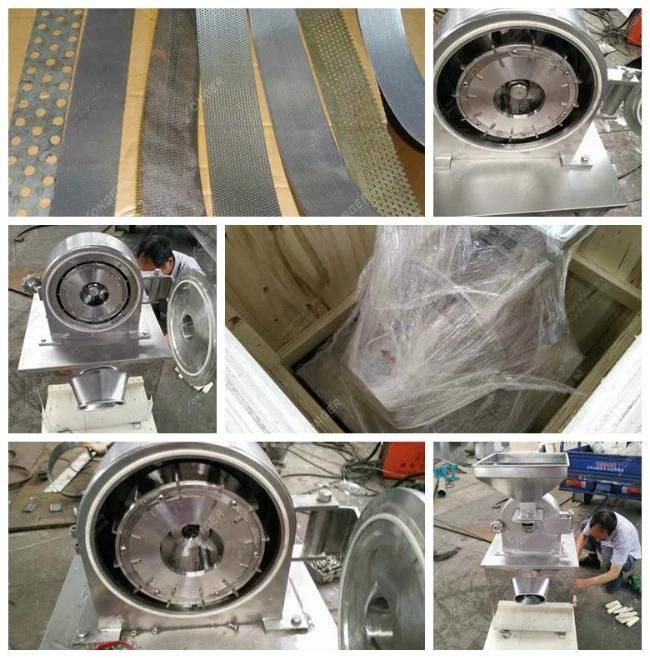

♦ 6. Chilli Grinding Machine Pictures:

♦ 7. Contact Cherry:
