• Model NO.：YZLXQ130-8
• Condition：New
• Customized：Customized
• Dimension(L*W*H)：2050*1522*1915mm
• Daily Processing Capacity：8tont,24hours
• Weight：1320kgs
• Power：18.5 Kw
• Transport Package：Fumigated Wooden Packing, or as Customers′ Request
• Specification：ISO BV SGS
• Trademark：GUANGXIN
• Origin：Sichuan, China
• HS Code：8479200
• Production Capacity：400 PCS,Month

Basic Info.

Model NO. YZLXQ130-8 Condition New Customized Customized Dimension(L*W*H) 2050*1522*1915mm Daily Processing Capacity 8tont/24hours Weight 1320kgs Power 18.5 Kw Transport Package Fumigated Wooden Packing, or as Customers′ Request Specification ISO BV SGS Trademark GUANGXIN Origin Sichuan, China HS Code 8479200 Production Capacity 400 PCS/Month

Product Description

YZLXQ130 -8 Characteristics:

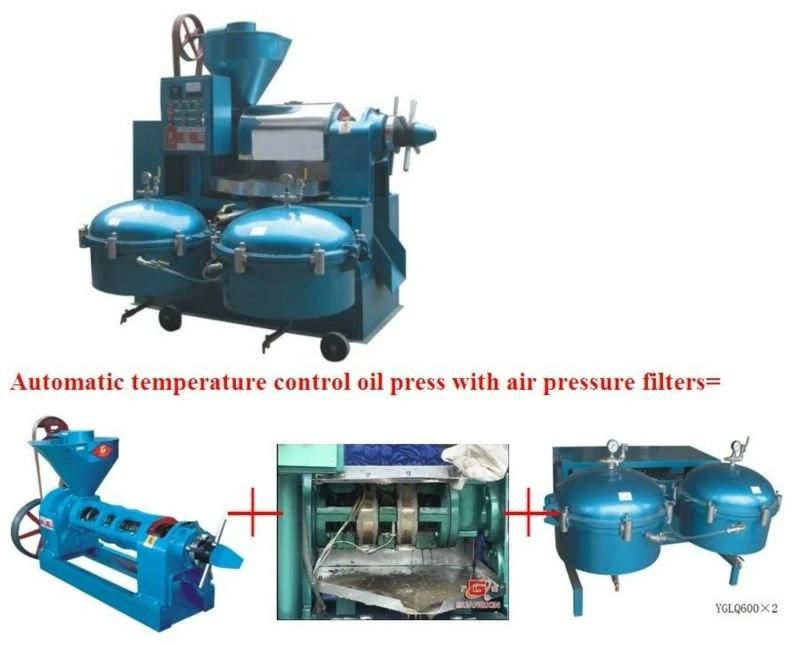

1. Has combined functions in one- The press cage's auto-warming up, oil plants' squeezing and crude oil's filtrating, therefore saves labor cost and time consumption, thus, raises working efficiency.
2. The function of auto-warming up the press cage has replaced the traditional way by squeezing residue cake, which shortened the preparation work and reduced the energy consumption. When the squeezing is suspended, the temperature can be maintained at a certain degree by this system.
3. The two air pressure filters equipped on the machine are making use of the compressed air as force, of which the filtrating ability is quite strong and the result is precise.
4. Day output 6.5ton/24h, oil content of residue cake ≤ 8%.

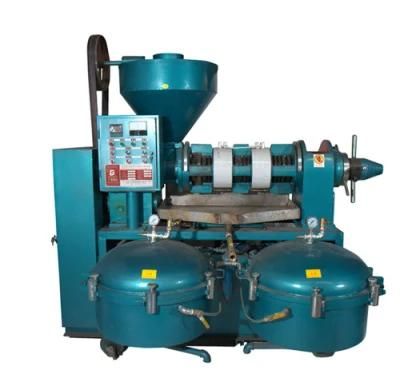

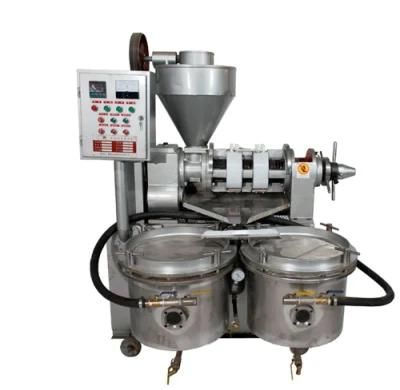

Product Name	Automatic temperature control precision filtration combined oil press
Model	YZLXQ130-8
Processing capacity (t/24h)	>8
Oil content of dry cakes (%)	<8
Main electromotor power (KW)	15
Pump electromotor power ( KW )	1.5
Temperature control power ( KW )	4
Measurement (mm)	2050*1522*1915
Spiral axes rotate speed (r/min)	34
Weight (KG)	1320

Applicable oil plants seeds

2 step squeezing model, suitable for make oil from sunflower seeds, rapeseeds. Soybean, sesame seeds, flaxseed, palm kernel, coconut, camellia seeds and peanut, etc.


Quality Standard

1. Conform to JB/T9793· 1-1999 of the People's Republic of China.
2. ISO9001: 2008 and BV certified.


After-Sale Service

1. We supply spare all year around.
2. We supply technical solutions and helps for buyers at any time.
3. We have professional team, help uses design and plan the oil refinery's construction.


Packaging & Delivery

1. Packaging Detail: Fumigated wooden box packing or as per customer's requests.
2. Delivery Detail: 10-20 day after order confirm
