• Model NO.：500L-30000L
• Material：Ss304,Ss316
• Transport Package：Normal Export Package
• Specification：500L-30000L
• Trademark：Tianlong
• Origin：Wenzhou, China
• Production Capacity：1000 Sets Per Month

ModelVolume LLength mmTank width mmTank height mmWeight kgMotor power KWRotation speed RPMFW-0.5500500106013605100.7525FW-110001000126015106401.135FW-220002000166018008801.135FW-3300030001860196011201.135FW-5500035002015210016202.243FW-8800040002060220017402.243FW-101000050002300250021702.243

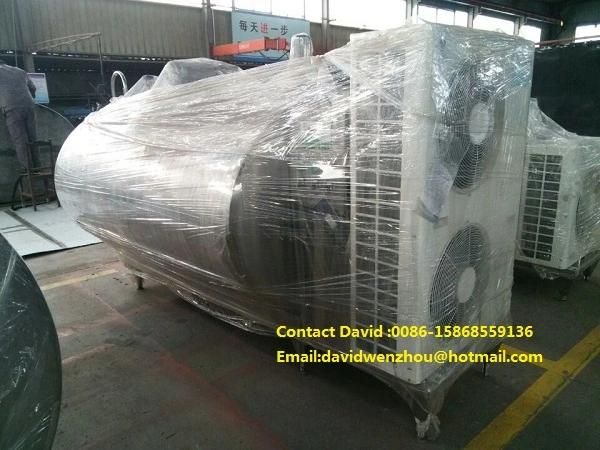

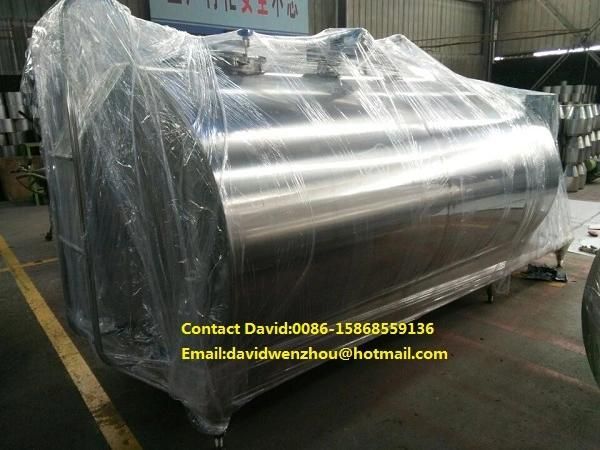

Our Mik Cooling Tank with compressor and evaporator could cool down the fresh milk by direct expansion, the refrigeration compressor adopting USA COPLAND.



With the direct expansion technique, the milk cooled by direct contact with the evaporator. The economic construction in horizontal version with efficient evaporator ensures quick and trouble-free cooling and space saving installation. Thanks to the free evaporation and proper mixing of the milk, the heat exchange is optimal, a high cooling capacity is guaranteed and freezing is prevented, even for small amounts of milk.

The capacity of tank is various complied with customer's requirements.

All tanks are made of high quality stainless steel AISI304. The insulation is compact polyurethane foam. The surface finish of the parts in contact with the milk is perfectly smooth; there are no bacteria traps. The tank can be very easily and thoroughly cleaned.

 Capacity: from 500L to 30000L.
