• Model NO.：JP-NOBL-0329
• End-Products Package：Bottle, Pouch, Pet, Aseptic Bag etc.
• End-Products Type：Orange Juice, Orange Pulp, Juice Concentration
• After-Sale Service：Engineers Available to Service Machine Overseas
• Transport Package：Standard Export Package
• Specification：to be determined after finalizing with customer
• Trademark：SHJUMP
• Origin：Shanghai, China
• Production Capacity：20 Sets ,Year

Cleaning/Grading The fruit must be inspected and graded before it can be used. An inspector takes a 39.7 lb (18 kg) sample to analyze in order to make sure the fruit meets maturity requirements for processing. The certified fruit is then transported along a conveyor belt where it is washed with a detergent as it passes over roller brushes. This process removes debris and dirt and reduces the number of microbes. The fruit is rinsed and dried. Graders remove bad fruit as it passes over the rollers and the remaining quality pieces are automatically segregated by size prior to extraction. Proper size is critical for the extraction process.Extraction
 Proper juice extraction is important to optimize the efficiency of the juice production process as well as the quality of the finished drink. The latter is true because oranges have thick peels, which contain bitter resins that must be carefully separated to avoid tainting the sweeter juice.

There are two automated extraction methods commonly used by the industry:

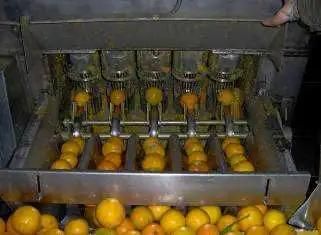

The first places the fruit between two metal cups with sharpened metal tubes at their base. The upper cup descends and the fingers on each cup mesh to express the juice as the tubes cut holes in the top and bottom of the fruit. The fruit solids are compressed into the bottom tube between the two plugs of peel while the juice is forced out through perforations in the tube wall. At the same time, a water spray washes away the oil from the peel. This oil is reclaimed for later use.
The second type of extraction has the oranges cut in half before the juice is removed. The fruits are sliced as they pass by a stationary knife and the halves are then picked up by rubber suction cups and moved against plastic serrated reamers. The rotating reamers express the juice as the orange halves travel around the conveyor line.


When the mature fruit is ready to pick, a crew of pickers pull the fruit off the trees. Once collected, the fruit is sent to plants for juice processing. Before extraction, the fruit is cleaned and graded.

Some of the peel oil may be removed prior to extraction by needles which prick the skin, thereby releasing the oil which is washed away. Modern extraction equipment of this type can slice, ream, and eject a peel in about 3 seconds.

The extracted juice is filtered through a stainless steel screen before it is ready for the next stage. At this point, the juice can be chilled or concentrated if it is intended for a reconstituted beverage. If a NFC type, it may be pasteurized.
ConcentrationConcentrated juice extract is approximately five times more concentrated than squeezed juice. Diluted with water, it is used to make frozen juice and many RTD beverages. Concentration is useful because it extends the shelf life of the juice and makes storage and shipping more economical. Juice is commonly concentrated with a piece of equipment known as a Thermally Accelerated Short-Time Evaporator, or TASTE for short. TASTE uses steam to heat the juice under vacuum and force water to be evaporated. Concentrated juice is discharged to a vacuum flash cooler, which reduces the product temperature to about 55.4° F (13° C). A newer concentration process requires minimal heat treatment and is used commercially in Japan. The pulp is separated from the juice by ultra-filtration and pasteurized. The clarified juice containing the volatile flavorings is concentrated at 50° F (10° C) by reverse osmosis and the concentrate and the pulp are recombined to produce the appropriate juice concentration. The flavor of this concentrate has been judged to be superior to what is commercially available in the United States and is close to fresh juice. Juice concentrate is then stored in refrigerated stainless steel bulk tanks until is ready to be packaged or reconstituted.ReconstitutionWhen the juice processor is ready to prepare a commercial package for retail sale, concentrate is pulled from several storage batches and blended with water to achieve the desired sugar to acid ratio, color, and flavor. This step must be carefully controlled because during the concentration process much of the juice's flavor may be lost. Proper blending of juice concentrate and other flavor fractions is necessary to ensure the final juice product achieves a high quality flavor.PasteurizationThanks to its low pH (about 4), orange juice has some natural protection from bacteria, yeast, and mold growth. However, pasteurization is still required to further retard spoilage. Pasteurization also inactivates certain enzymes which cause the pulp to separate from the juice, resulting in an aesthetically undesirably beverage. This enzyme related clarification is one of the reasons why fresh squeezed juice has a shelf life of only a few hours. Flash pasteurization minimizes flavor changes from heat treatment and is recommended for premium quality products. Several pasteurization methods are commercially used. One common method passes juice through a tube next to a plate heat exchanger, so the juice is heated without direct contact with the heating surface. Another method uses hot, pasteurized juice to preheat incoming unpasteurized juice. The preheated juice is further heated with steam or hot water to the pasteurization temperature. Typically, reaching a temperature of 185-201.2° F (85-94° C) for about 30 seconds is adequate to reduce the microbe count and prepare the juice for filling.Packaging/fillingTo ensure sterility, the pasteurized juice should be filled while still hot. Where possible, metal or glass bottles and cans can be preheated. Packaging which can not withstand high temperatures (e.g., aseptic, multilayer plastic juice boxes which don't require refrigeration) must be filled in a sterile environment. Instead of heat, hydrogen peroxide or another approved sterilizing agent may be used prior to filling. In any case, the empty packages are fed down a conveyor belt to liquid filling machinery, which is fed juice from bulk storage tanks. The filling head meters the precise amount of product into the container, and depending on the design of the package, it may immediately invert to sterilize the lid. After filling, the containers are cooled as fast as possible. Orange juice packaged in this manner has a shelf life of 6-8 months at room temperature.

****Byproducts/Waste

Byproducts from orange juice production come from the rind and pulp that is created as waste. Products made with these materials include dehydrated feed for livestock, pectin for use in making jellies, citric acid, essential oils, molasses, and candied peel. Certain fractions of orange oil (known as d-limonene), have excellent solvent properties and are sold for use in industrial cleaners.

Kind reminder to dear customer:please kindly understand that the fruit production line is a highly customized product. Our company is capable to design a processing line with capacity 10T-1500T per day. The machine configuration also will be varied based on the automation degree and the final products type you want to get.Therefore,If you need a quotation proposal from us, please contact our staff and offer the following data to serve you better: 1.What's the estimated capacity? Namely, How many fresh fruits you plan to process per day? 2.What will be the final package of your products? in drum, in tinplate or in pouch or in bulk?Will your products face wholesale market or retail market?3.When and where you want to start this project?
4.Will this project be cost-oriented or quality-driven?
About Us:

Our company is the first company to manufacture complete food&beverage processing line in China and we are keeping leadership position in the fruit processing line for 30 years since 1986 when China introduce technique from Italy/German and start to manufacture.Till now, we have set up 110 fruit processing factory in domestic and oversea market.

We has independent intellectual property rights of several equipment, including: large vacuum evaporation concentrating equipment (1000L-60000L/H), large sterilization equipment (tube and tube in tube type 1T/H-50T/H), large drying equipment (water evaporation quantity 100-10000T/H), aseptic filling equipment, and many advanced pre-treatment equipment  for different fruits. Among them, the concentrated equipment for juice and jam, with its high performance and ultra-low temperature , has gained high reputation in this industry; And large tube-in-tube sterilization equipment have gain major breakthrough in energy saving, saving 30% energy compared with the industry standard, which has owned  the national patent (Patent No.: ZL 201120565107.2); Various types of advanced juicing and beating equipment have been ranking first for continuous 7 years  regarding their quality and sales volume.

We are the best choice for Orange processing in Turnkey Solution!

Thoughtful After-sale services:

1). We make accurate factory layout design according to customer's factory size; if the customer needed, we could make workshop design.
2). After receiving firm order and down payment, we start to apply for the Visa to your country immediately; while the machines arrives your factory, our engineers are ready to start for the commissioning service.
3). 1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.
4). Our engineers have responsibility to teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line.
5). Our engineers can provide basic formula for the production, and help the customer to produce good quality food according customer's detailed formula
6). It normally costs 10-14 days for the commissioning service, and we supply 1 year guarantee from the date of completion of commissioning service.

Company show:




Contact Us:
To get more information of lemon production line, please feel free to contact our engineer:


Cell//:0086 15901792807
More pictures/vedios and detailed proposal will be offered.
