• Model NO.：2000l 3000L
• Material：SS304
• Tank Thickness：Inner 3mm Outside :2mm
• Temperature Control：Automatic
• Heating：Gas Steam Generator
• Heat Insulation：Rock Wool Th:80-100mm
• Inner Surface：Pickled and Passivation
• Welding：Argon Arc TIG 100%
• Function：Boiling Wort
• Transport Package：Steel Frame or Wooden Case
• Specification：as customer request
• Trademark：Zunhuang
• Origin：China
• HS Code：8438400000
• Production Capacity：500piece

Basic Info.

Model NO. 2000l 3000L Material SS304 Tank Thickness Inner 3mm Outside :2mm Temperature Control Automatic Heating Gas Steam Generator Heat Insulation Rock Wool Th:80-100mm Inner Surface Pickled and Passivation Welding Argon Arc TIG 100% Function Boiling Wort Transport Package Steel Frame or Wooden Case Specification as customer request Trademark Zunhuang Origin China HS Code 8438400000 Production Capacity 500piece

Product Description

 Specifications

 Zunhuang craft beer equipment is consisted of Malt milling system, Mash system, Fermentation system, Refrigeration system, Control system and CIP cleaning system. The tank of the system all adopts Red copper and S.S 304,and the system also have high automatic control capacity.
Simple operation ,PLC automatic control system ,PLC semi-automatic control system.
Equipments characteristics: Small investment, quick effectiveness, high quality, lower prices, the investment repayment is fast, the service life of equipment is long, easy operation, lower cost. Strong technical force.
At the same time if you have requirements, we could design and produce the products you need!

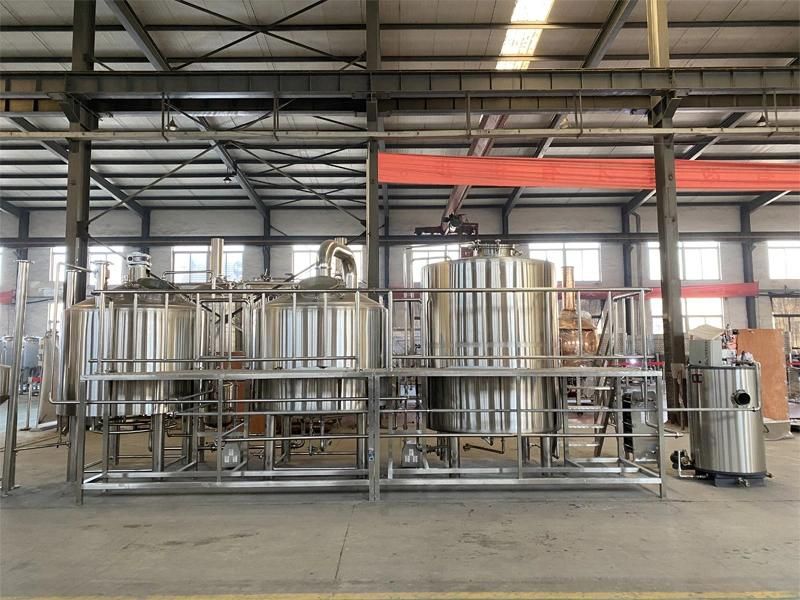

Beer Brewing Equipment List

1	malt milling system	malt miller machine grist case
2	Mash system	Mash tank/Boiling tank lauter tank Whirlpool tank Hot water tank Mash/wort/hot water pump Motors Wort oxygenation device Operation platform Plate heat exchanger
3	Fermenting system	Beer fermenters Bright beer tanks Yeast adding tank Accessories, such as sample valve, pressure gauge, safety valve and so on
4	Cooling system	Ice water tank Refrigerating unit Ice water pump
5	CIP cleaning system	disinfection tank & alkali tank &cleaning pump etc.
6	Controller	Control system, we have PLC automatic and semi-automatic, the elements brand include LG, Siemens and so on.
7	Keg filling system	Keg filling system ( keg washer and keg filler machine), the control system brand is Siemens.

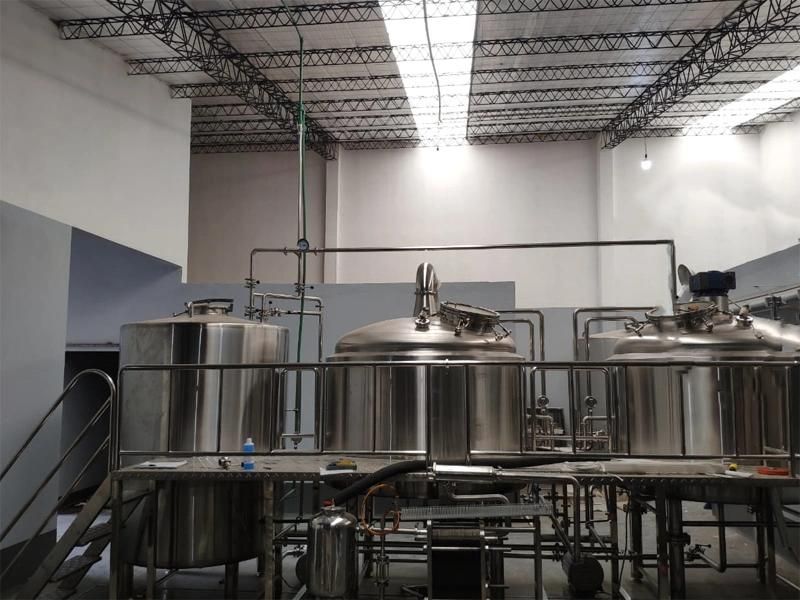

Configuration in mash system

Main configurations	Agitator /Raker/ sieve plate /wort pump/buffer tank/plate heat exchanger/ yeast add tank/oxygenation device/cleaning device/washing ring pipe/ discharge door/platform/PT-100 Temperature probe/Top glass manhole/ whirlpool side manhole/LED light.
Optional	Water mixer/Raker lift/Hops filter tank/steam condensation/wort collector/ Backflush device/pressurized boiling device/pressurized dry out device.
Product outsourcing	Outsourcing can use stainless steel original board/oil film drawing board/copper board/rose golden color decoration board.it can also be customized according to customer's special needs.
Commonly used models	100L 200L 300L 500L 1000L 3000L,etc.can be customized according to the situation.
Heating method	Electric heating/steam heating/direct fire heating, customized type. steam heating can use gas steam generator or fuel oil steam generator
Control method	Manual control/semi-automatic control/full automatic control.

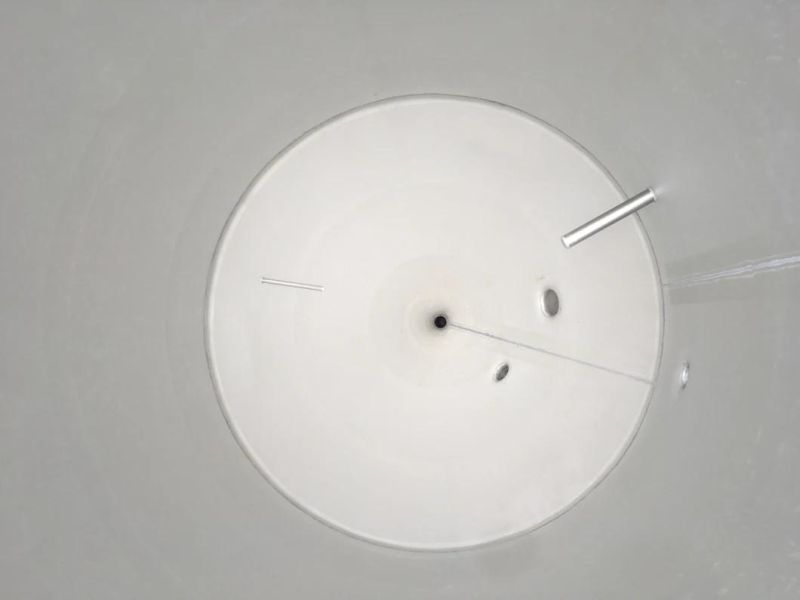

Inner surface pickled and passivation:

Mash tun inside with agitator:

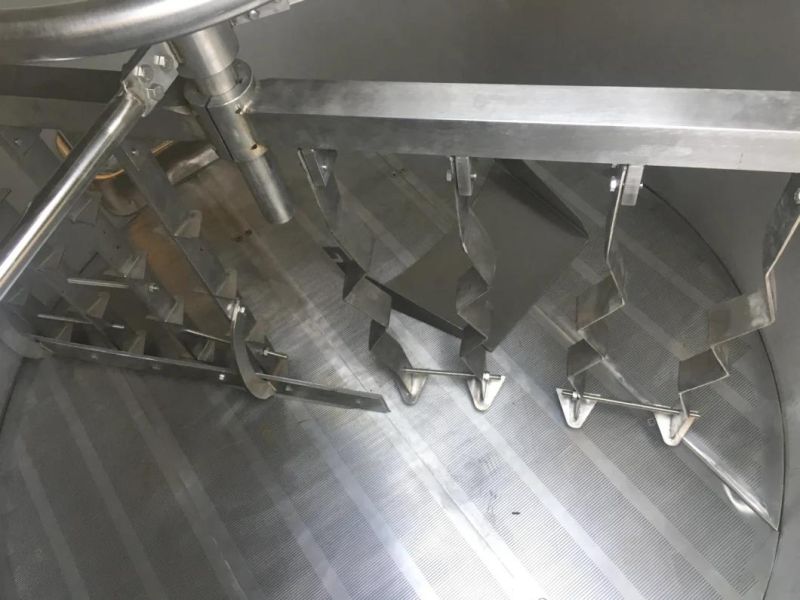

Lauter tun inside with raker:

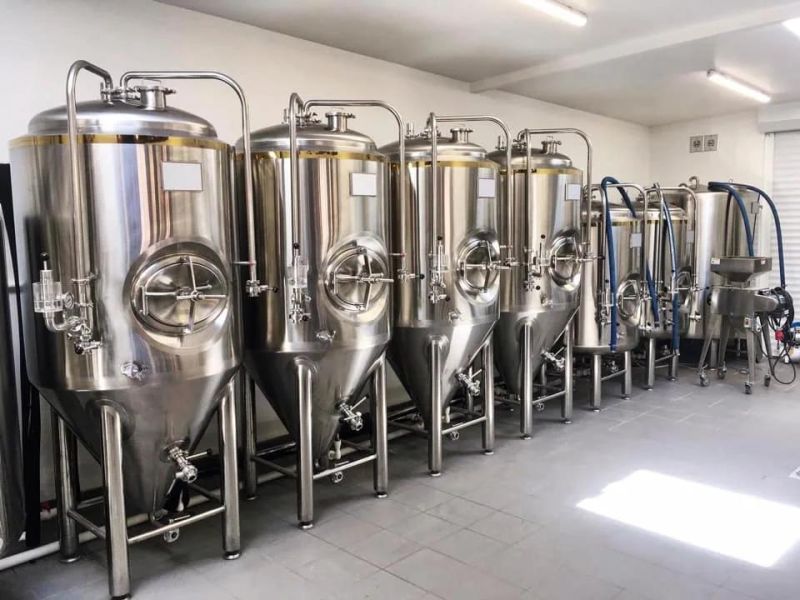

Fermentation tank details:

Fermenter cooling method is cooling dribbling with standard parameters, layout and control mode in domestic. Zunhuang companies design and manufacture cooling dribbling according to 0.4-0.5 meters per cubic meter cooling area. And the fermentation tank adopt two-stage cooling refrigerant control mode at the end of the cone and the tank level 10--15cm down. So such design and cooling method to control the flow of the cooling liquid state in fermentation tank by the size of the two-stage cooling refrigerant flow. It will improve heat transfer efficiency and cooling rate, faster cooling, and reduce cooling costs and high economic efficiency equipment commercial operation.

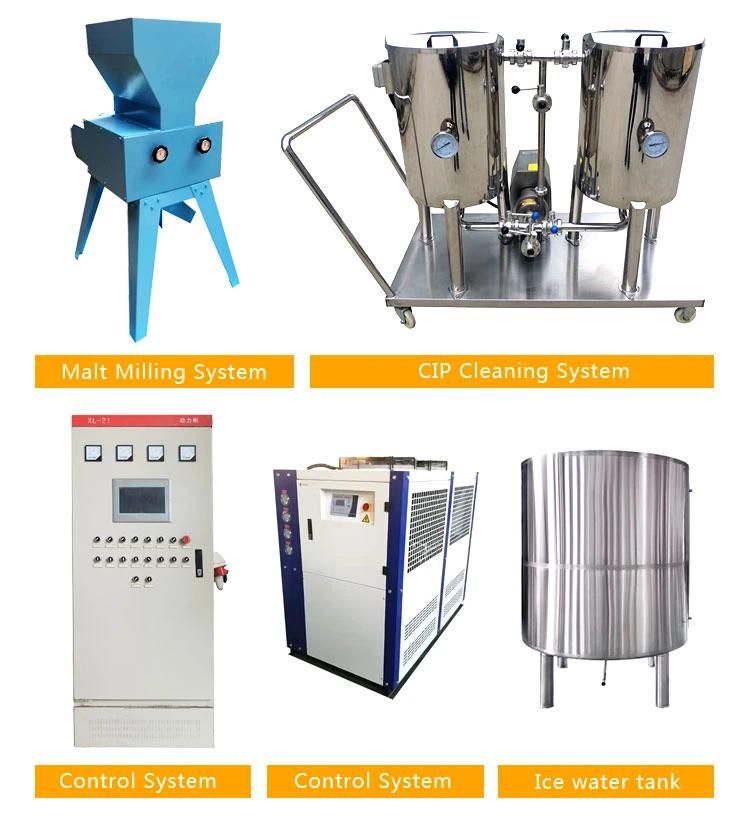

Other Auxiliary Equipment:

1.Malt crusher

2.CIP Cleaning system

3.Control cabinet

4.Cooling system includes glycol tank and chiller unit

Ten provide to service you:
1. After-sale Service for the whole life.
2. 24h service for you, solve your urgent problem first time.
3. 3 years warranty for the main products.
4. Free design for your brewery layout for 2D or 3D.
5. Spare parts replacement and repair service provided.
6. Engineer going abroad for installation, debugging and technical training if you need.
7. Provide the Form E, CO, etc..others necessary reduce import Tax files for you.
8. To provide update information about brewing equipment technology once we test.
9. Help you send the goods if you have others company order, then send to you together.
10. Door to Door service, if you need any brewing parts.
