• Model NO.：CR-600
• HS：8438800000
• Machine Material：304 Stainless Steel
• Cooling：with Cooler
• Spray：Auto Spray System
• Temperature：0-80 Degree Centigrade
• Coating Materials：Sugar, Chocolate, Vitamins and Fruit Shell
• Transport Package：Wooden Case
• Origin：China
• HS Code：842240009
• Production Capacity：10000sets,Month

Basic Info.

Model NO. CR-600 HS 8438800000 Machine Material 304 Stainless Steel Cooling with Cooler Spray Auto Spray System Temperature 0-80 Degree Centigrade Coating Materials Sugar, Chocolate, Vitamins and Fruit Shell Transport Package Wooden Case Origin China HS Code 842240009 Production Capacity 10000sets/Month

Product Description

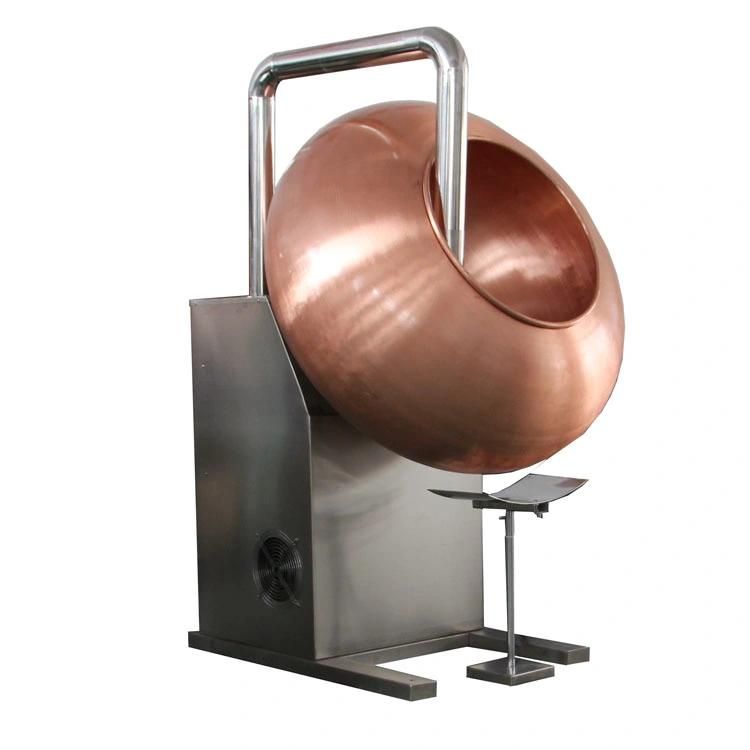

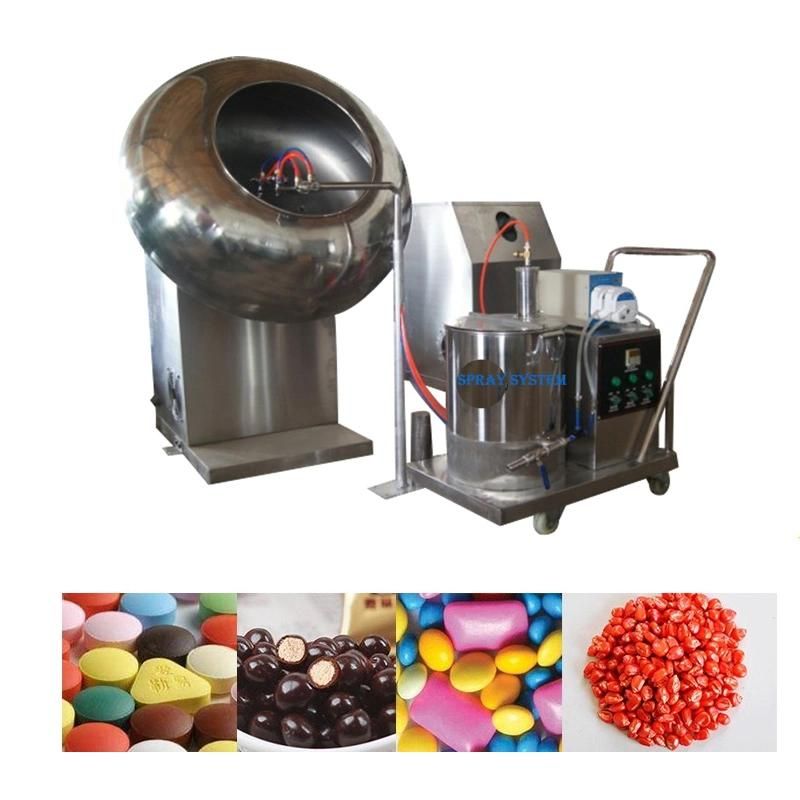

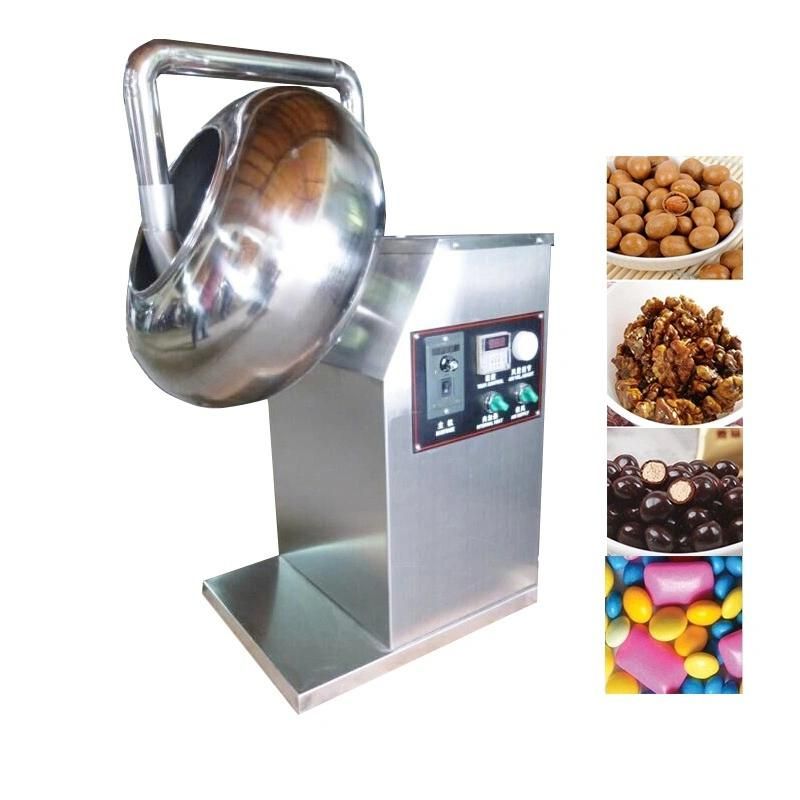

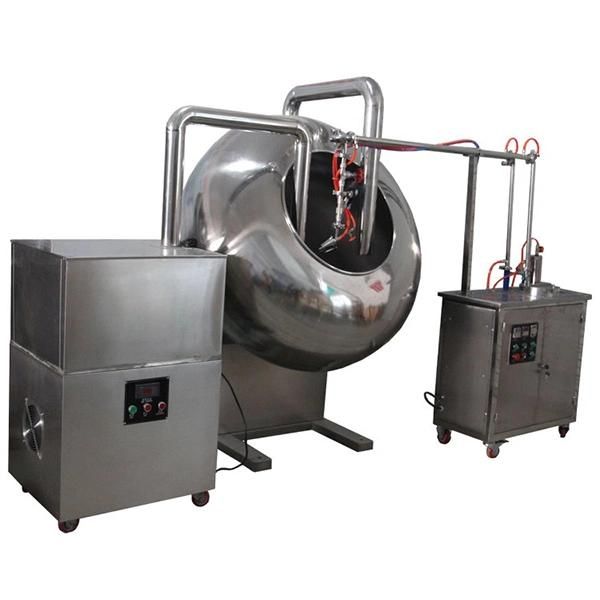

Tablet/Chocolate/Nuts/Sugar Coating Machine
for Food Industry and Pharmaceuticals Industry
Coating machine   is designed for the coating of pills,medicine,nuts, dried fruits, cakes and other products by sugar, chocolate, vitamins and fruit shell.

2. Infinitely variable speed control software and coating drum provide high performance, ease of management, ease of use.

3. Nuts sugar Coating drums are equipped with a special system of blowing hot air.

4. The drums have a reliable and sealed lubrication system. Drum is made of stainless steel, the body is painted with white enamel. The drum is equipped with rubber pads which protect against vibration. Comfortable and easy to maintain and operate.

5.  Automatic discharging type is available.

Coating Machine parameter:

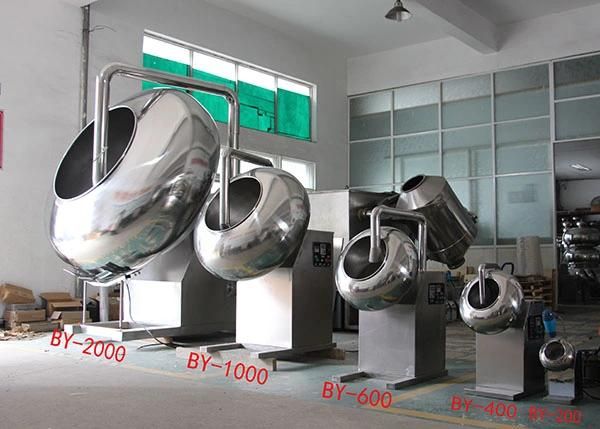

TYPE	BY-300	BY-400	BY-600	BY-800	BY-1000	BY-1250
Pan diameter(mm)	300	400	600	800	1000	1250
Speed(r/min)	0-41	0-41	0-46	0-32	0-32	0-30
Main motor power(KW)	0.55	0.55	0.75	1.1	1.5	3
Blower power(W)	40	40	60	100	100	200
Heating wire power(KW)	1	1	1	1	1.5	3
Capacity(kg/batch)	2-3	3-5	10-25	30-50	50-70	90-150
Machine dimension(mm)	440×550×785	520×550×850	700x600x1100	925x900x1400	1180×1000×1650	1200×1250×1630
Machine weight(kg)	40	80	85	205	230	400

Application:



Delivery:


Our Serivece:
♦ Project Design
Assist you to choose the proper equipment according to your requirement.

♦ Installation Training
Provide telephone guidance for equipment installation and debugging.
Provide free relevant training as customer required.
Long-term technical support.

♦ After-sale service
One year warranty, life-long maintenance;
24 hours online for technical consulting service;

♦ One year warranty time
From the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. The travel and hotel expenses should be paid by buyer.

♦ Full document
All necessary documents will be provided.
