Stainless Steel Hydraulic Oil Press

Henan VIC Machinery Co., Ltd.

Type：Hydraulic Pressure Mechanism for Oil Press
Application：Edible Oil
Voltage：380V
Appearance：Vertical
Press Materials：Sesame, Walnut, Peanut, Rape Seeds etc
Press Series：Second

Base Info

Model NO.：6Y-230-1
Condition：New
Customized：Customized

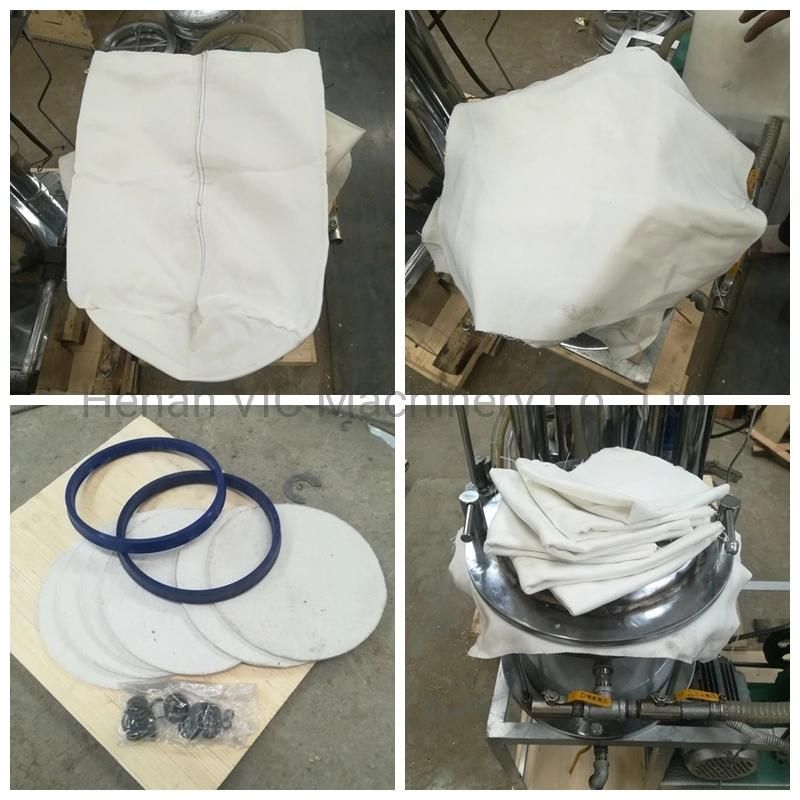

Vacuum Filter：Yes, Glass Filter
Max Pressure：55MPa
English Manual：Yes

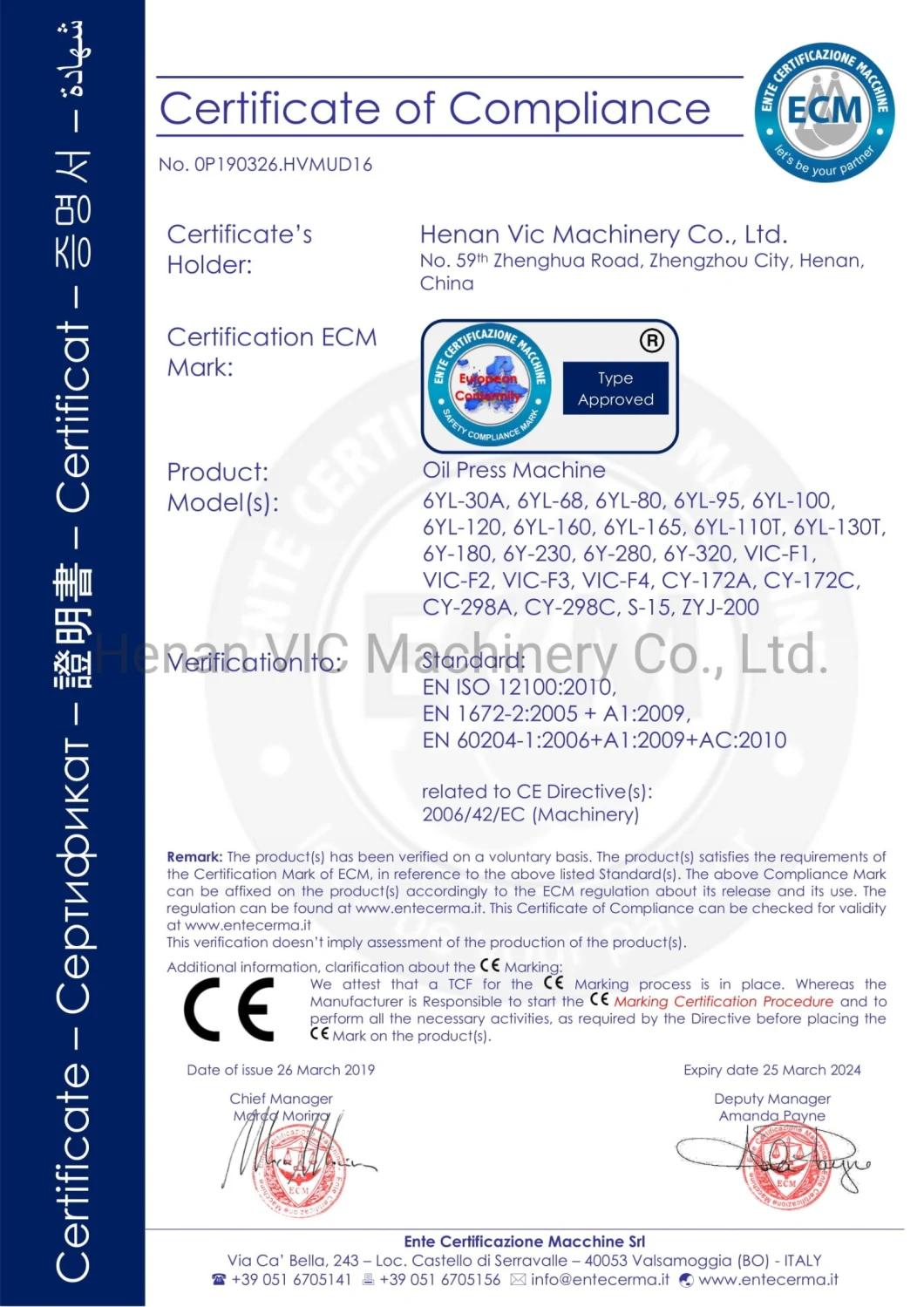

CE Certificate：Yes
Transport Package：Wooden Fumigated Box
Specification：CE, ISO
Trademark：VIC
Origin：China
HS Code：84792000
Production Capacity：5000PCS,Year

Description

Basic Info.

Model NO. 6Y-230-1 Condition New Customized Customized Vacuum Filter Yes, Glass Filter Max Pressure 55MPa English Manual Yes CE Certificate Yes Transport Package Wooden Fumigated Box Specification CE, ISO Trademark VIC Origin China HS Code 84792000 Production Capacity 5000PCS/Year

Product Description

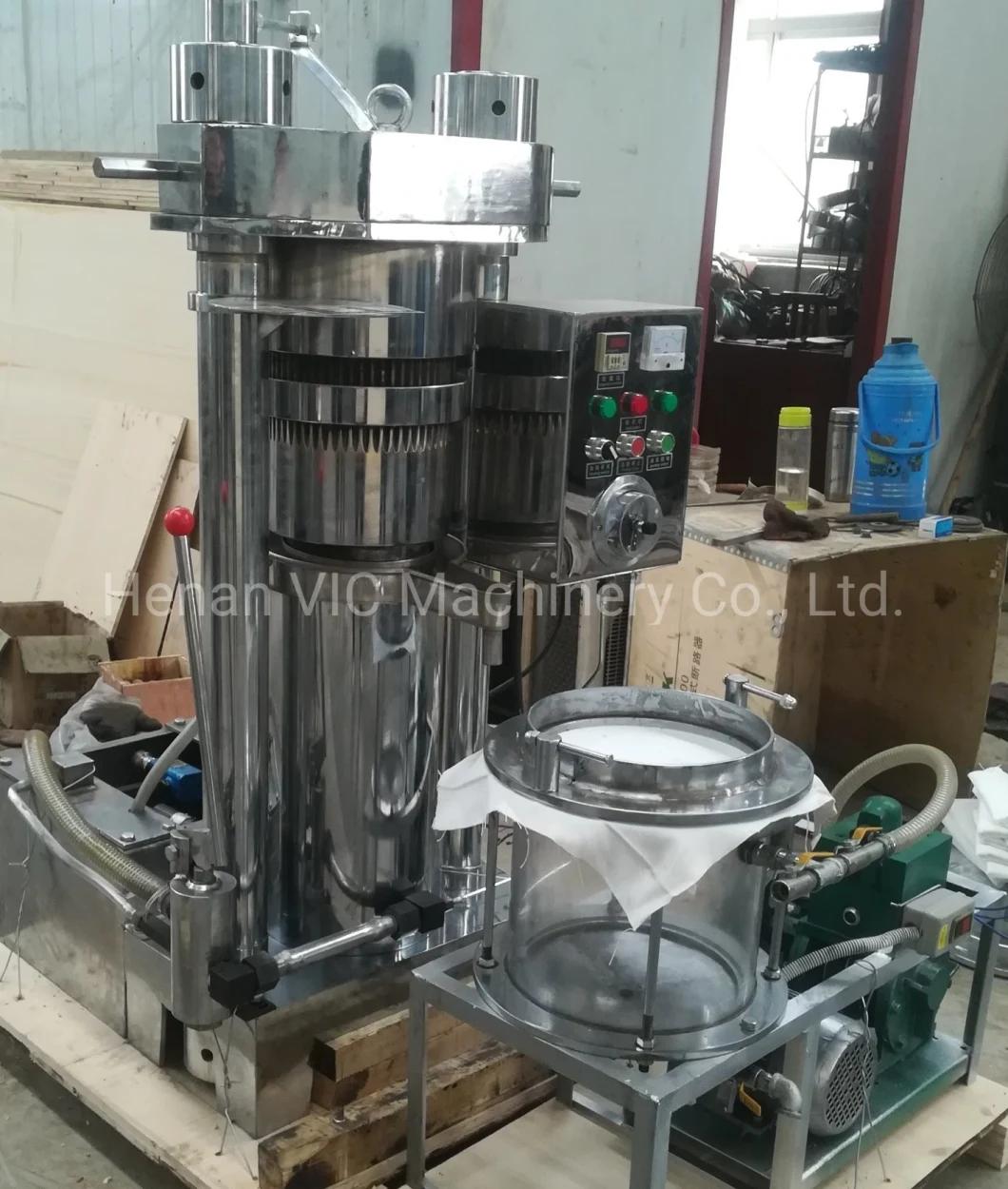

Stainless Steel Hydraulic Oil Press
1.Application:The 6Y-230-I hydraulic oil press is improved based on 6Y-230 by introduced Korean technology and won high praise from users, with vacuum filter the final oil will be much better. It can be applied for oilseeds such as sesames, walnuts and pine nuts, etc.

With lower power consumption and noise, it can be fed with 7-8kg of material every time and completely squeeze in 6-8min. The final oil is good edible oil.

2.Technical data:
Model: 6Y-230-1 hydraulic oil press
Capacity: 50-80 kg/h for raw materials
Heating collar power: 1.5kw+1.1kw (380V/50Hz)
Heating collar control temperature: 70-100° C
Max pressure: 60Mpa
Motor model power: Y901-4. 1.5kw
Pressure Kg: 1900KN
Size: 1300X900X1500mm
Weight: 950kg
6Y series hydraulic oil press machine without filtering system:

Model	6Y-180	6Y-230	6Y-300
Process capacity	15-30kg/h	50-80kg/h	100-150kg/h
Power	1.5kw(380v/50hz)	1.5kw(380v/50hz)	3kw(380v/50hz)
Heating collar power	1kw	1kw	2kw
Heating collar temperature control	70-100 degree	70-100 degree	70-100 degree
Nominal pressure	1600KN	2200KN	3000KN
Max pressure in working	55MPA	55MPA	55MPA
Overall size	800x60x1100mm	900x750x1400mm	2600x1000x2000mm
Weight	530kg	880	3200kg
