• Model NO.：KQ Series
• Application：Milk
• Customized：Customized
• Name：New Stainless Steel Jacketed Mixing Vessel for Fo
• Material：Stainless Steel 304 , 316
• Capacitys：300litres to 10000litres
• Insulation：Polyurethane Foam : 50mm
• Motor Brand：Siemens ,ABB
• Refrigerant：R404A,R22
• Compressor：USA Copeland
• Outside Shape：Vertical and Horinzontal
• Milk Pump：Provide

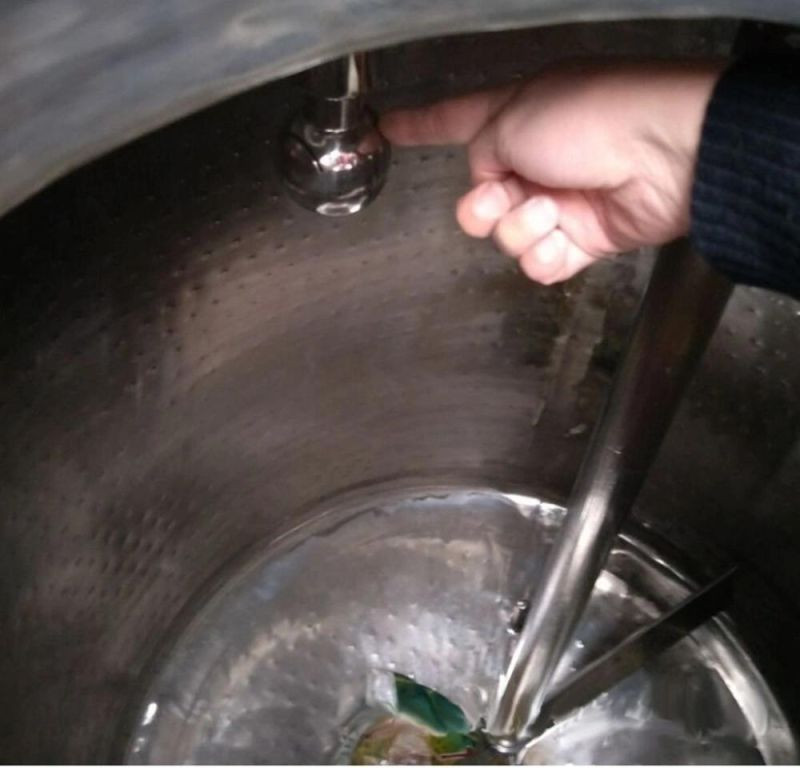

• CIP Cleaning Ball：Included
• Mixer Agitator：Including
• Working Life：More Than 10 Years
• Surface Treatment：Inside Mirror and Outside Polished
• Outlet：with Butterfly Vave
• After Sales Service：Yes
• Transport Package：Standard
• Specification：ISO
• Trademark：KQ
• Origin：China
• HS Code：8479820090
• Production Capacity：1000

TypeKQ-0.5T
Vertical typeKQ-1T
Vertical typeKQ-2T
Laying typeKQ-3T
Laying typeKQ-5T
 Laying typeKQ-6T
 Laying typeKQ-8T
 Laying typeKQ-10T
 Laying typeCapacity(L)50010002000300050006000800010000LRefrigerating Output(W)90009000150002200037000380005500074000Refrigerating  Fluid(R)R22R22R22R22R22R22R22R22Insulating Property≤1ºC/4h≤1ºC/4h≤1ºC/4h≤1ºC/5h≤1ºC/5h≤1ºC/5h≤1ºC/5h≤1ºC/6hAgitator Speed36r/min36r/min36r/min36r/min36r/min36r/min36r/min36r/minPower (Kw)3.83.85.97.510.5111319.2Voltage220V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phasesDimension(mm)1800*1200*15001800*1200*15003400*1550*17503600*1700*19003900*2050*21504500*2050*21506300*2050*22508000*2100*2400Weight(Approximately)0.6T0.6T 0.75T0.9T1.1T1.3T1.8T2.05TUnit Price: FOB SHANGHAIUSDUSDUSD USD USDUSD USDUSD

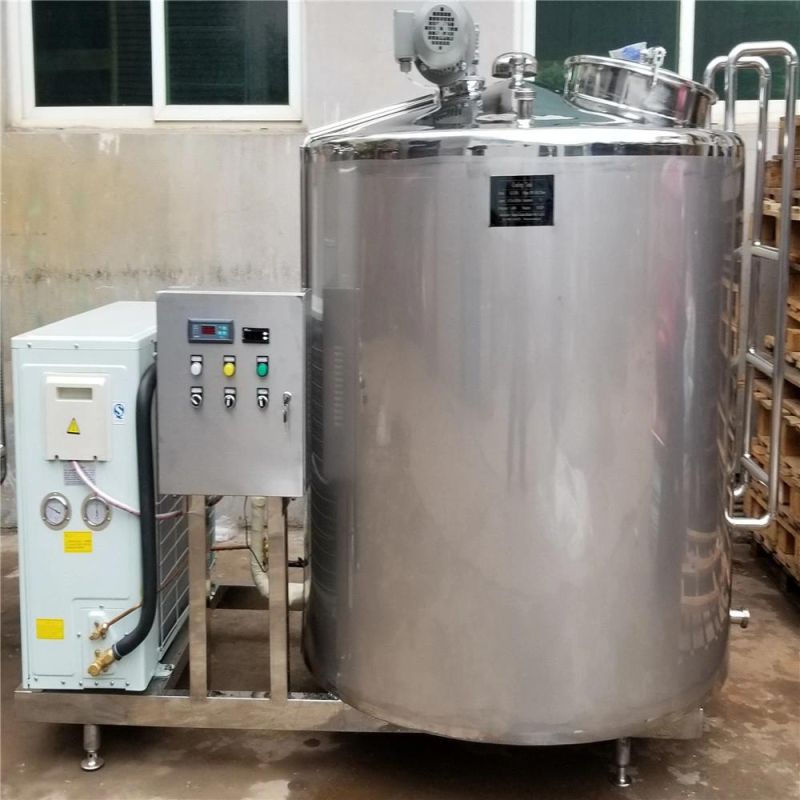

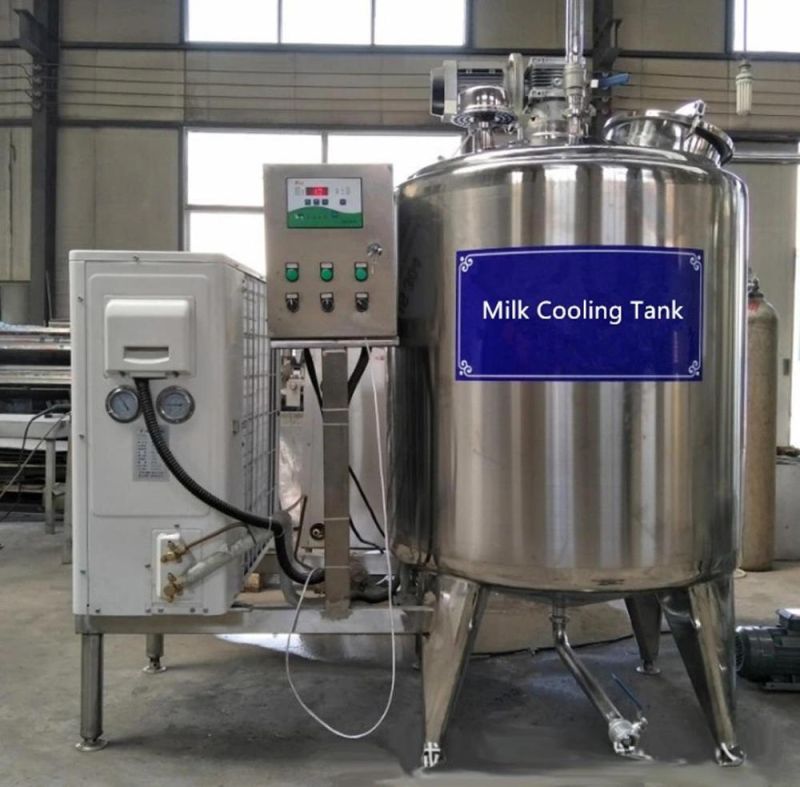

1000L 2000L 3000L 4000L Stainless Steel Milk Cooling Tank Factory .
producing milk cooling tanks, collection centres, tubular coolers, milking machine components, pasteurisers, ice water

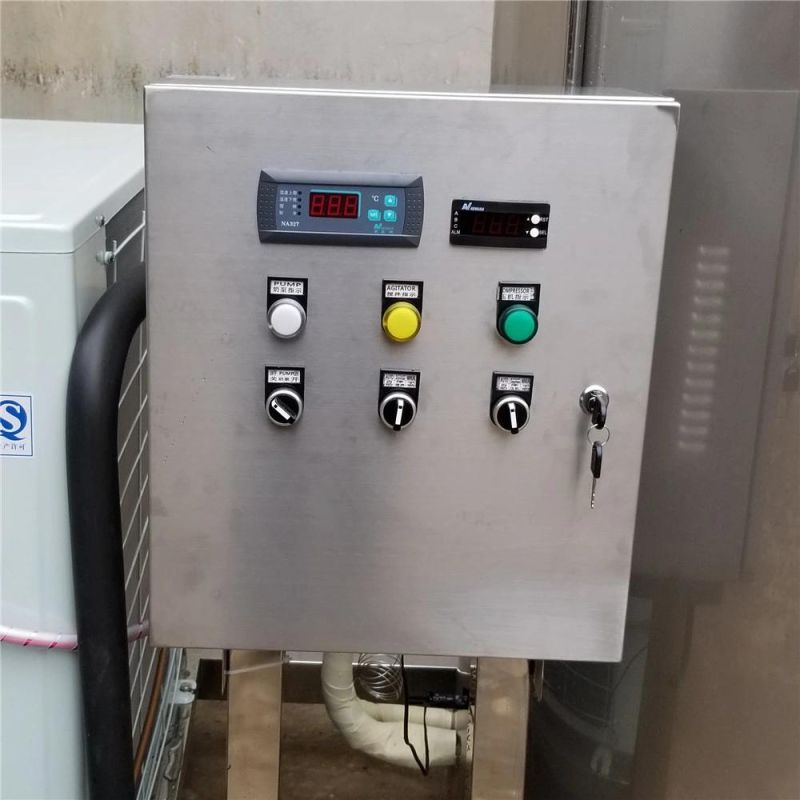

Adopting internationally-advanced technology of the 1900's it cools by circular and vertical wall. The fully automatic control system makes whole process of observation available. The cooled raw milk can reach rapidly needed temperature of 4~5 and keeps constant, which can prevent the generation of bacteria and make raw milk as Agrade cream.
The adopted imported compressor features high performance, energy saving, full seal and protection system that prevents damage due to overload. Also fitted are high / low liquid level control system and automatic cyclespray and agitating device
New Stainless Steel Jacketed Mixing Vessel for Food Industry Price .
