• Model NO.：GRH-150
• Processing Capacity：750~1500kg,Batch
• Heating Method：Electric
• Drying Method：Hot Air
• Function：Drying and Dehumidifying
• Heating Temperature：8ºC ~ 75ºC
• Transport Package：Seaworthy and Land Transportation Packing
• Specification：800x280x220cm
• Trademark：GUANFENG
• Origin：China
• HS Code：8438600000
• Production Capacity：1000sets,Year

Basic Info.

Model NO. GRH-150 Processing Capacity 750~1500kg/Batch Heating Method Electric Drying Method Hot Air Function Drying and Dehumidifying Heating Temperature 8ºC ~ 75ºC Transport Package Seaworthy and Land Transportation Packing Specification 800x280x220cm Trademark GUANFENG Origin China HS Code 8438600000 Production Capacity 1000sets/Year

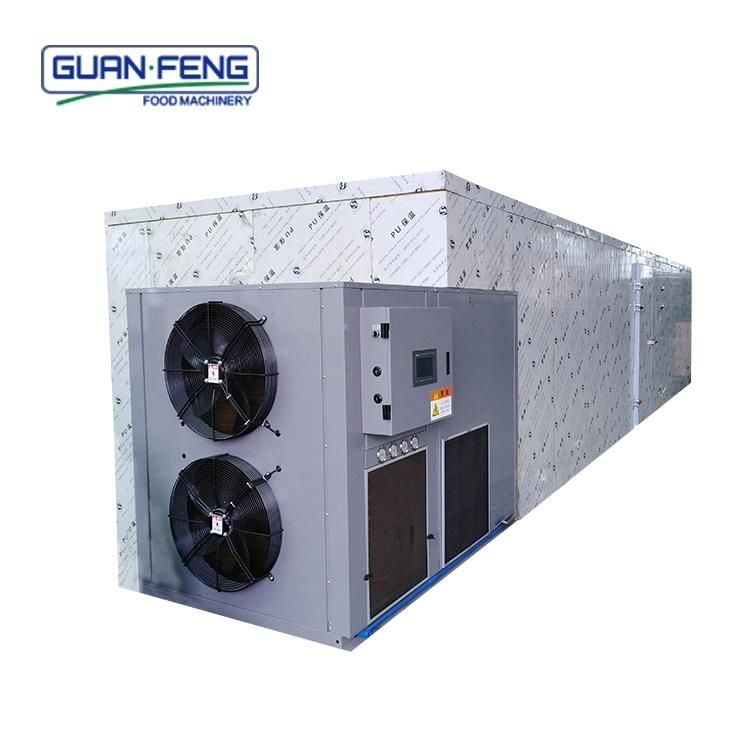

Product Description

Equipment Feature
1. Easy installation: easy to install and remove, few floor space, ti can install both indoor or outdoor;
2. High-efficiency environment-friendly: it can absorb a mass of heat from the air by little electric energy, the power consumption only 1/3 ~ 1/4 to electric heat, and compared to coal, oil, and gas heater, it can save about 75% cost in production.
3. Non-pollution: there is no inflamer or emission, which is a sustainable development product.
4. Security of operation: the whole process in the heat pump dryer is a safety semi-closed drying system did not exist the possible risk like an inflammable, explosive, toxic, short circuit, etc. in traditional drying.
5. Long service life, low maintenance: this is developing from the traditional air conditioner technology, which has mature technology, stable performance, long service life, etc., it's the automatic operation without hand operation, intelligent control.
6. Comfortable and convenient, the high degree of automatic, intelligent: use automatic thermostat device, can work in 24-hour.
7. Wide range of applications, weather-protected: it can be used in food, chemical, medicine, paper products, leather, wood, agricultural product, and so on.

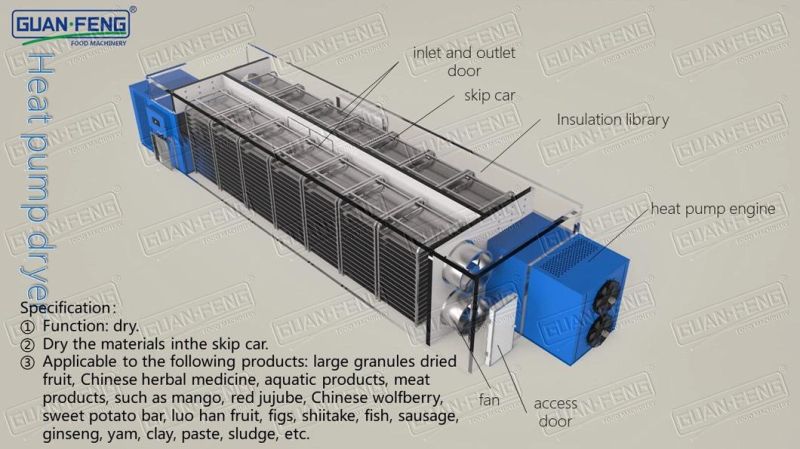

GRH series heat pump dryer parameter

ITEM	GRH-20	GRH-50	GRH-70	GRH-120	GRH-150	GRH-200	GRH-250	GRH-300	GRH-400
Heat pump	3HPx1	6HPx1	12HPx1	10HPx2	12HPx2	15HPx2	20HPx2	25HPx2	30HPx2
Installed power (kw)	4.8	7.2	13.3	22.4	26.6	30.4	47	53.8	60.8
Heating capacity (kw)	11	22	45	72	90	96	150	176	200
Refrigerating capacity (kw)	7.9	19	35	52	70	76	124	144	180
Dehumidify capacity (L/h)	15	26	55	90	110	120	125	136	150
Trolley quantity (pc)	2	4	6	8	10	14	18	22	28
Trolley size (cm)	113x100x175	113x100x175	113x100x175	113x100x192	113x100x192	113x100x192	113x100x192	113x100x192	113x100x192
Inside temperature (ºC)	8 ~ 75	8 ~ 75	8 ~ 75	8 ~ 75	8 ~ 75	8 ~ 75	8 ~ 75	8 ~ 75	8 ~ 75
Processing capacity (kg/batch)	100~200	250~500	350~700	600~1200	750~1500	1000~2000	1250~2500	1500~3000	2000~4000
Overall dimensions (cm)	340x280x203	440x280x203	540x280x203	700x280x220	800x280x220	1000x280x220	1200x280x220	1400x280x220	1700x280x220

1.Are you A factory or A trading company?

A: We are factory manufacturing food processing machines and we provide OEM and after-sale service.



2.Where is your factory? How can I visit your factory?

A: Our factory is located on Shaoxing, it is near to Shanghai and Hangzhou. We are warmly welcome

     you visit our factory.



3.Can you send me the video to show the machine works?

A: Certainly, we have made video of our machines and processing lines.



4.How can I pay my order?

A: We accept T/T and L/C payment.



5.Do you have a CE certificate?

A: For every model of machine, it has a CE certificates, and we also get ISO9001 and SGS certificates.



6.What is our advantages?

A: As a professional food processing machinery supplier, we can provide integrated solution for food

    processing industry. We have got more than 50 patents.
