• Model NO.：GJB
• Name：High Pressure Paint Pressure Piston Stage Homogeni
• Material：Food Grade Stainless Steel 304,316
• Capacity：500L,H--10000L,H
• Pressure：25MPa -- 100 MPa
• Appications：Milk , Juice, Beverage
• Certificate：Ce Certificate
• Motor：3phases
• Voltage /Hz/Phase：Make It to Your Order .
• Pressure Piston：Two Stage
• Work Life：More Than 10years
• Packing：Wooden Box
• Motor Brand：Siemens ,ABB,China Brand
• Working Life：More Than 10 Years .
• Delivery：10-15 Days After Get Your Reply .
• OEM：Yes
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. GJB Name High Pressure Paint Pressure Piston Stage Homogeni Material Food Grade Stainless Steel 304/316 Capacity 500L/H--10000L/H Pressure 25MPa -- 100 MPa Appications Milk , Juice, Beverage Certificate Ce Certificate Motor 3phases Voltage /Hz/Phase Make It to Your Order . Pressure Piston Two Stage Work Life More Than 10years Packing Wooden Box Motor Brand Siemens /ABB/China Brand Working Life More Than 10 Years . Delivery 10-15 Days After Get Your Reply . OEM Yes Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

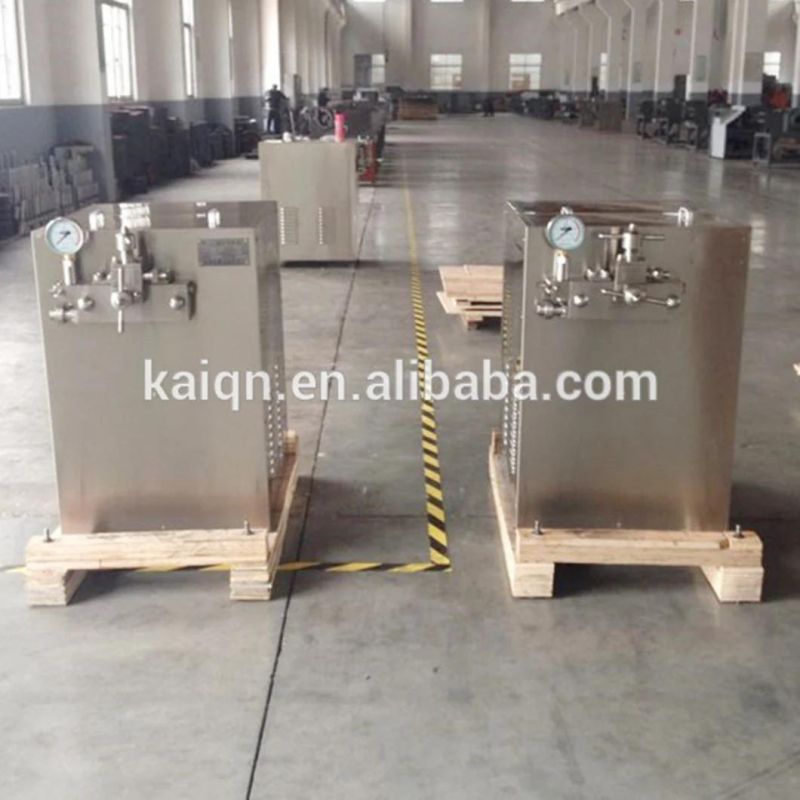

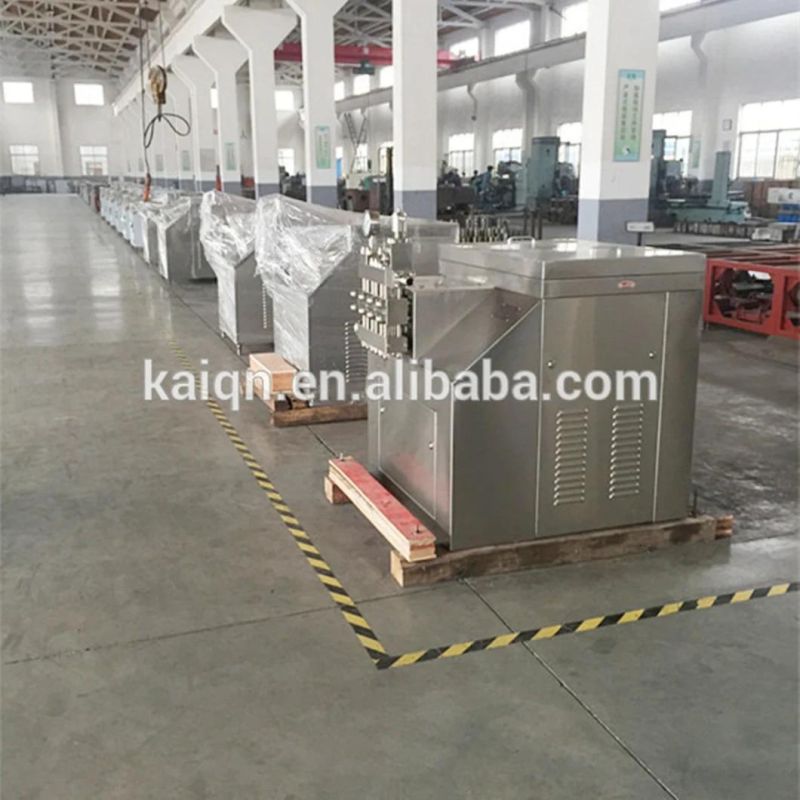

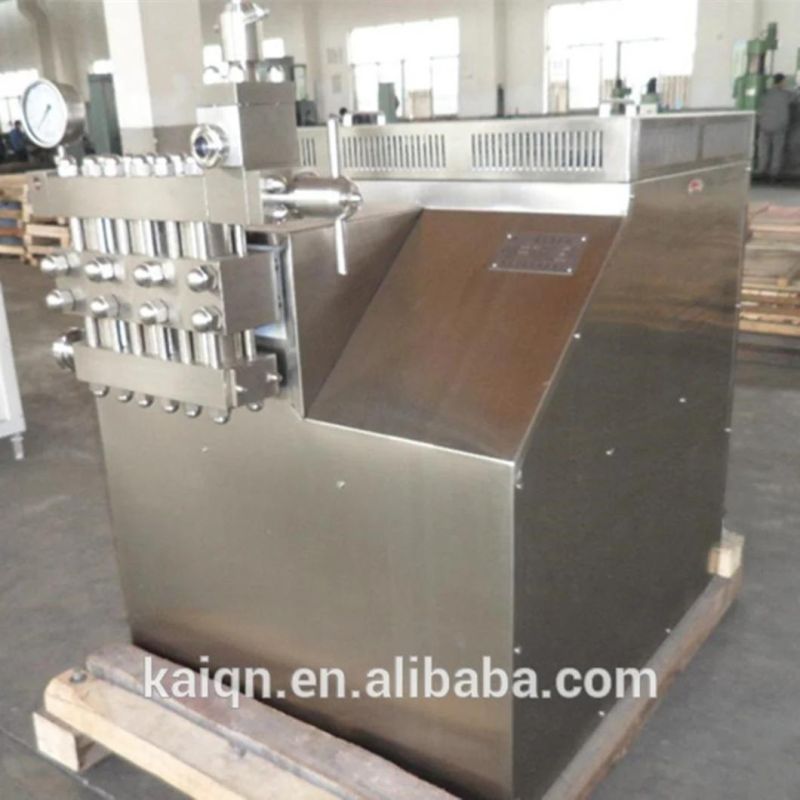

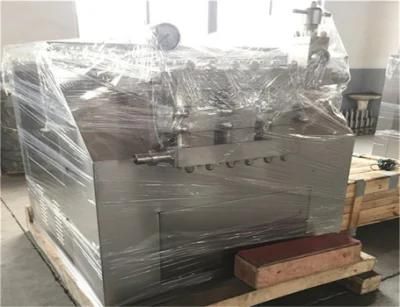

High Pressure Paint Pressure Piston Stage Homogenizer
High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life .

Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

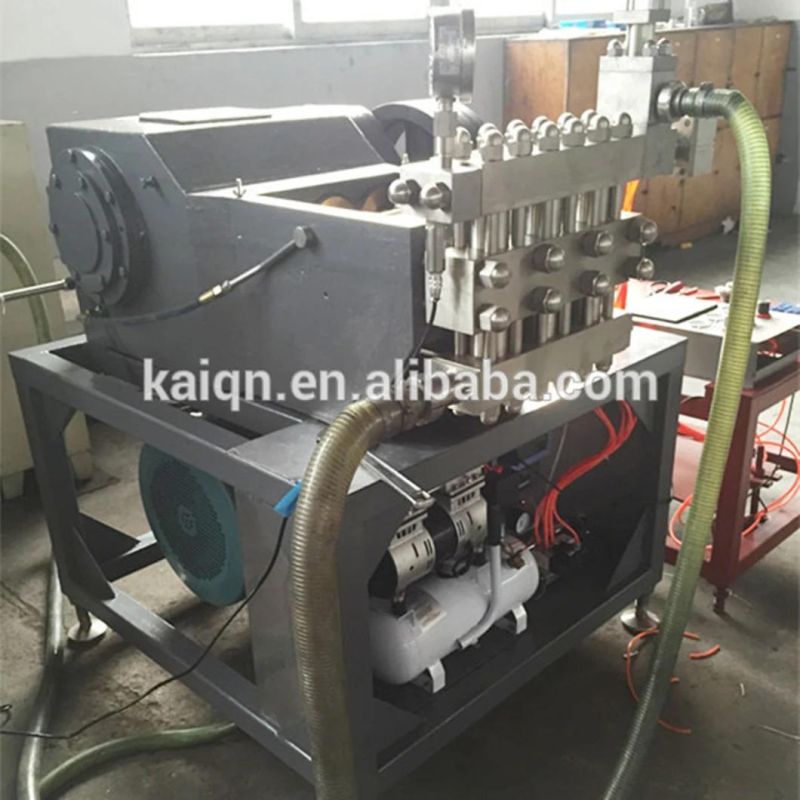

series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )
High Pressure Paint Pressure Piston Stage Homogenizer .
