• Model NO.：300 500
• Material：Ss34
• Function：Beer Ferment
• Design：Conical 60 Degree
• Cooling Way：Dimple Cooling Jacket
• Inner Shell：Thickness 3mm
• out Layer：Thickness 2mm
• Temperature Test：PT100 Temperature Sensor
• Inner Surface：Pickled and Passivation
• Insulation：PU Foam
• Welding：Argon Arc TIG 100%
• Transport Package：Steel Frame
• Specification：300L
• Trademark：Zunhuang
• Origin：China
• Production Capacity：200piece

Basic Info.

Model NO. 300 500 Material Ss34 Function Beer Ferment Design Conical 60 Degree Cooling Way Dimple Cooling Jacket Inner Shell Thickness 3mm out Layer Thickness 2mm Temperature Test PT100 Temperature Sensor Inner Surface Pickled and Passivation Insulation PU Foam Welding Argon Arc TIG 100% Transport Package Steel Frame Specification 300L Trademark Zunhuang Origin China Production Capacity 200piece

Product Description

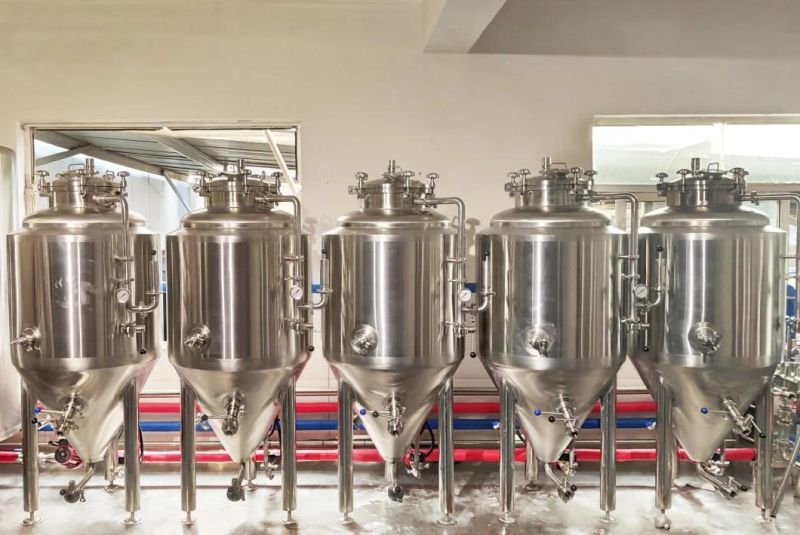

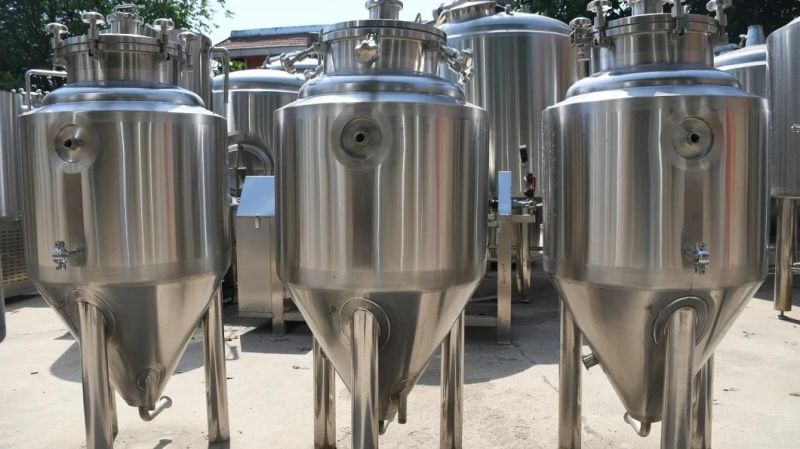

Stainless Steel Conica Beer Fermenter Pressure Jacketed Unitank

Description:
Fermentation system:
1. Capacity: 100L 200L 300L , +25% Head space
2. Interior shell thickness 3-6mm, Exterior shell=2mm
3. 100% TIG welding with pure argon gas shield
4. Interior finish: pickled and passivated, external polished, 80mm insulated
5. Test pressure 3 bar, working pressure 1.5 bar
6. Glycol zones (Both on side and concial/bottom)
7. 60°conical bottom for Fermener, top man way

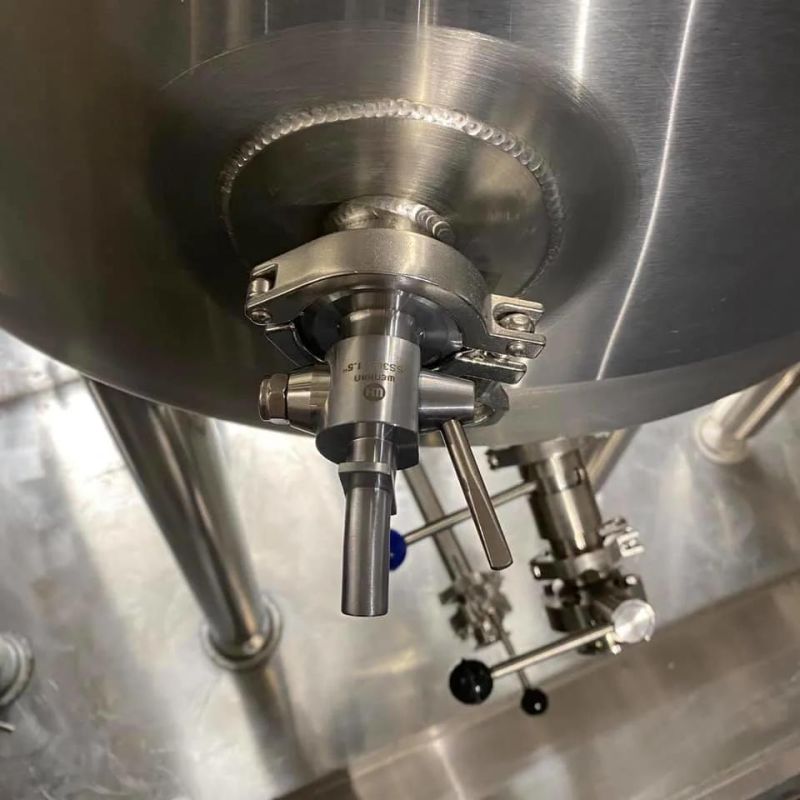

8. Racking arm, Sample valve, Pressure relief valve on the top, Dry hopping on the top
9. Mechanical relief valve 3 bar on CIP arm with pressure gauge
10.Adjustable tank leveling pads.

Production capacity	500	1000	2000	5000	10000	20000
Volume Effective/Total	500/660	1000/1330	2000/2660	5000/6600	10000/ 13300	20000/ 26600
Inner shell diameter(mm)	1400	1600	2000	2800	3000	3500
Cooling area m2	2.2	4.4	8.7	14	25	48
Working pressure	0.14	0.14	0.14	0.14	0.14	0.14
Cooling method	Dimple plate jacket	Dimple plate  jacket	Dimple plate jacket	Dimple plate  jacket	Dimple plate  jacket	Dimple plate jacket
Conical angle	60	60	60	78	78	78

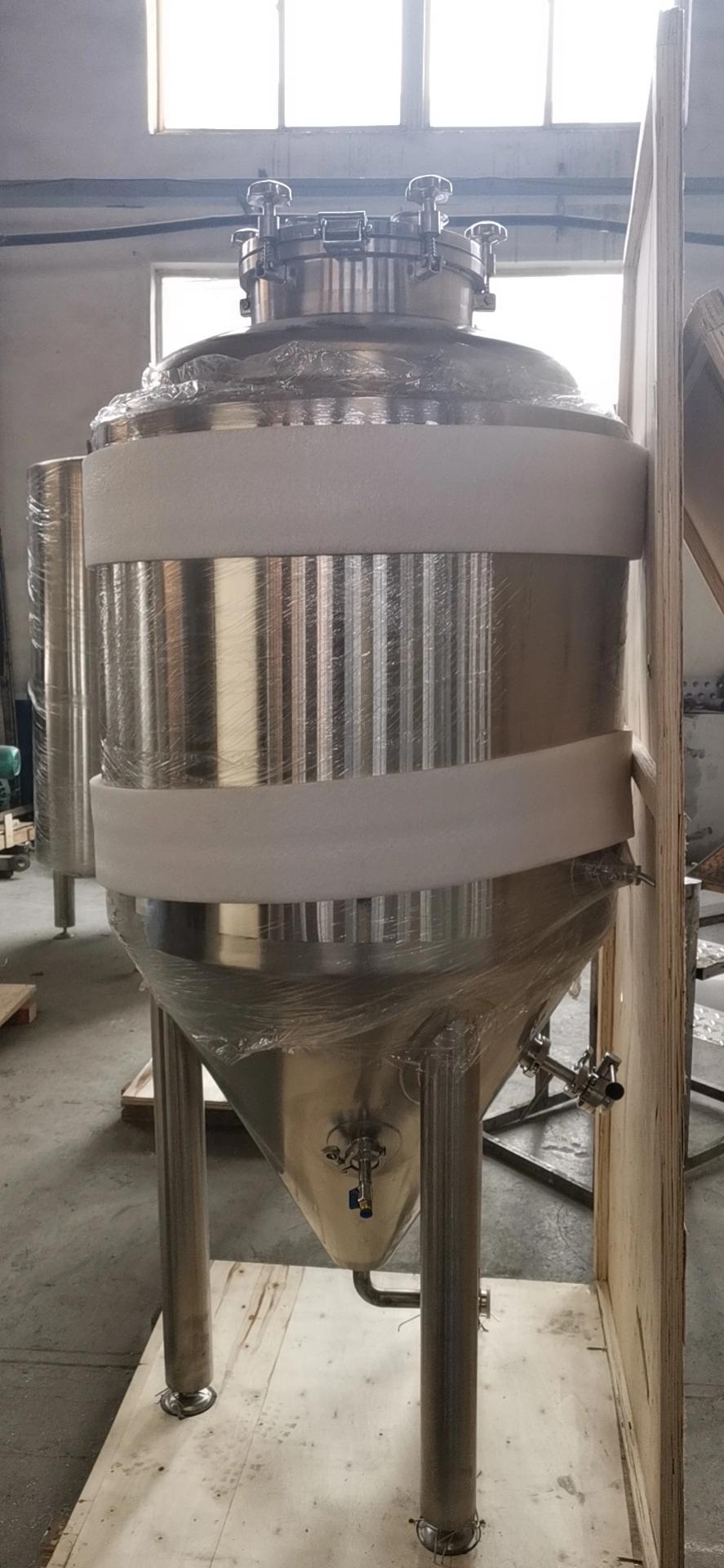

Package and delivery:
wooden case

Our Services:
A .Free consultation service before, during, and after sales.
B. Project planning and design services.
C. Free debugging instruction of equipment until everything is functional.
D. Management of equipments' long distance shipping from seller's factory to named port or station by buyer.
E.Training of equipment maintenance and operating personally.
F. New production techniques.
G. Provide 36 months complete warrantee for main parts and life-time maintenance service; The seller is responsible for the nature damage of the machinery in the warranty period except for man-made damage;
H.All spare parts and wearing parts are attached with the machinery for free.
