• Model NO.：6236
• Cylinder：One, 3.2 Liter
• Hopper：One, 15 Liter
• Capacity：36 Liter,Hour
• Main Motor：One, 1.5HP
• Power：220V,50Hz, 220V,60Hz
• Feed：Gravity Feed
• Flavor：Single
• Precooling：Yes
• Model：Table Model
• Dimension：404*704*750mm
• Transport Package：Carton with Pallet
• Specification：CE
• Trademark：SPACE
• Origin：Ningbo, China (Mainland)
• HS Code：8418699020
• Production Capacity：4000 Units,Year

Basic Info.

Model NO. 6236 Cylinder One, 3.2 Liter Hopper One, 15 Liter Capacity 36 Liter/Hour Main Motor One, 1.5HP Power 220V/50Hz, 220V/60Hz Feed Gravity Feed Flavor Single Precooling Yes Model Table Model Dimension 404*704*750mm Transport Package Carton with Pallet Specification CE Trademark SPACE Origin Ningbo, China (Mainland) HS Code 8418699020 Production Capacity 4000 Units/Year

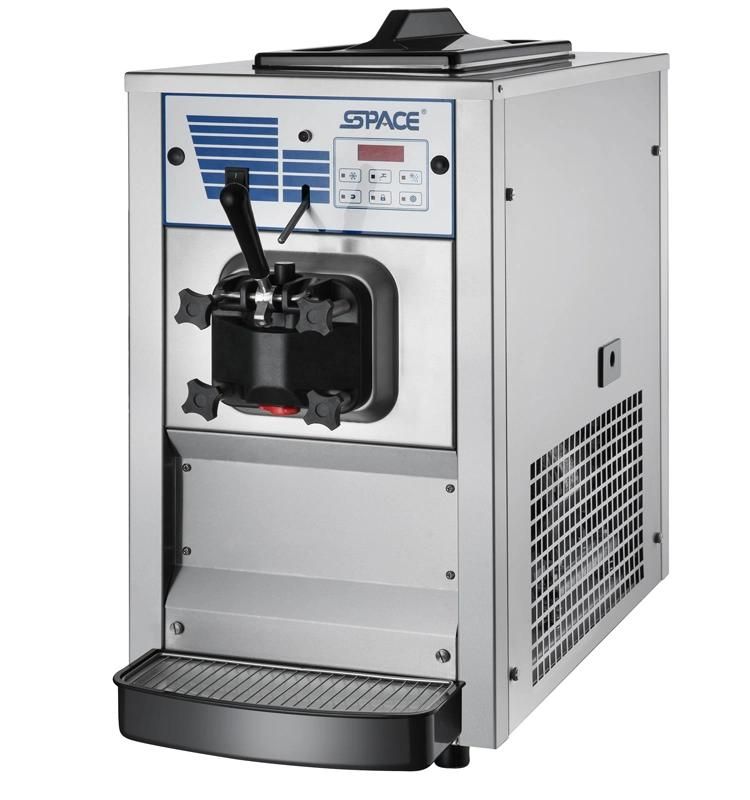

Product Description

FEATURE
Offer all the popular soft serve variations from low or non-fat ice creams to custards, yogurt and sorbet.

FREEZING CYLINDER
One, 3.2 Liter

MIX HOPPER
One, 15 Liter
Separate hopper refrigeration(pre-cooling)maintains mix below 4.4º C.

MICROPROCESSOR CONTROLS
Microprocessor regulates refrigeration by measuring product viscosity to maintain consistent quality.

MIX LOW LIGHT
The mix low light turns "ON" to alert operator to add mix, preventing cylinder over freezing.

STANDBY
Maintains product temperature in the mix hoppers and freezing cylinders below 4.4 º C during long no-use periods.

COUNTER
Records number of dispenses per day and total number of dispenses.

OUTPUT
48 Liter/Hour
(At 4 º C Liquid&24º C Ambient )

ELECTRICAL REQUIREMENTS
One dedicated electrical connection is required. Make voltage steady when machine is ON.

MAIN MOTOR
One, 2.0HP

REFRIGERATION SYSTEM
One compressor: 6486 BTU/hr. R404A
Separate hopper refrigeration(Pre-cooling): One main compressor: 400BTU/hr. R134A
(BTU may vary depending on compressor used. )

AIR COOLED
Minimum clearance of 152mm on both sides to achieve optimum performance.

Packing
1. Carton with pallet
2. Warrenty: 1 year

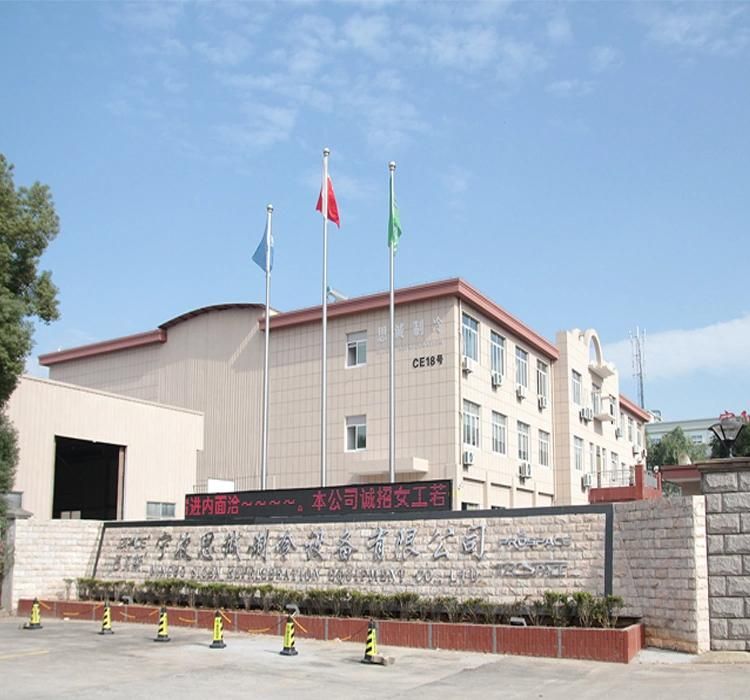

Company Profile


SPACE company is a professional manufacturer of food processing machine such as Soft Ice Cream Machines, frozen yogurt machine,Juice Dispensers and Slush Machines and other refrigeration food processors . All of the products have passed the CE ETL ETL Sanitation certification. Our products have successfully entered into the market of Southeast Asia, Middle East,  America,South America, Europe and Africa,etc.As a leading company in foodservice equipment manufacturing, all major components of Space freezers are selected from world class brands such as TECUMSEH compressors from France, Aspera compressors from Italy, Danfoss compressors , thermal expansion valves from Denmark, and Schneider electric controls from France.We focus on planning and developing new machines that are renowned for the innovation and the highest quality level. Custom-built equipment, the miraculous 35%-75% expansion rate, prompt refrigeration, large output, convenient controlling systems, professional design and reliability are the key reasons look to us.

Certification

Exhibition

FAQ
1.I am not sure which model  I need. Where can I get help?

You are highly recommended to talk to us about your unique applications and requirements early in your procurement process. We will answer all your questions and help select models what will best fit your needs.  Call us at +86 134 8605 5285  or contact us through Alibaba Trade Manager .

2.What's your MOQ ?

MOQ is one unit ,Welcome to place the sample order to try the quality first .

3.What is the delivery time?

Sample machines can delivery during 3-7 days. Quantity order please contact us check the delivery time

4.Can we put our own logo on the machine?

Yes, we can put your logo or your sticker design on our machine .We accept OEM ODM order .

5.What is the Payment Terms?

Payment can be T/T ,L/C Western union.We recommend place the order on alibaba ,and do payment through Alibaba trade assurance.Alibaba will protect your order till you receive the amchine

6.What's your warranty ?

SPACE company offer one year warranty for all machines (extra free parts will send with machine together)
