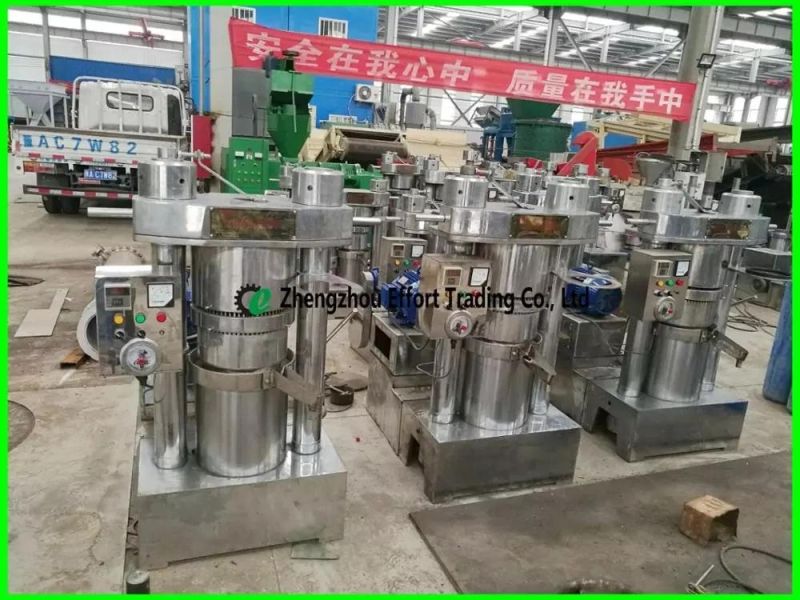

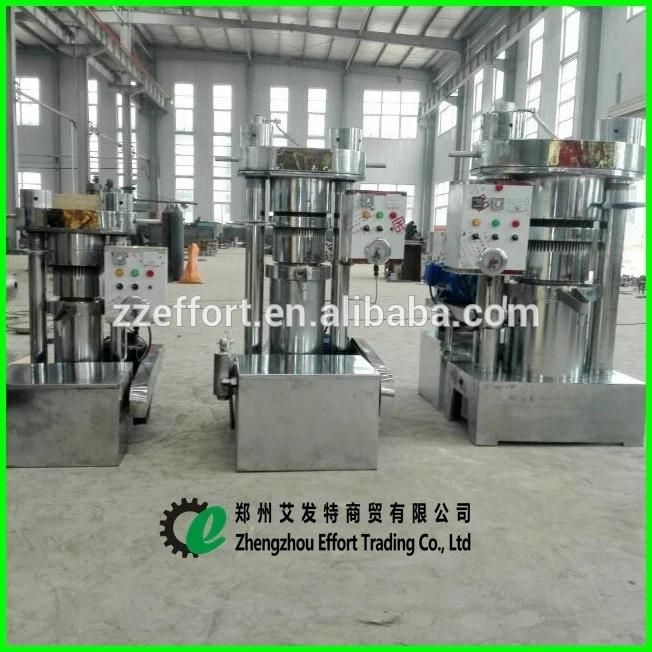

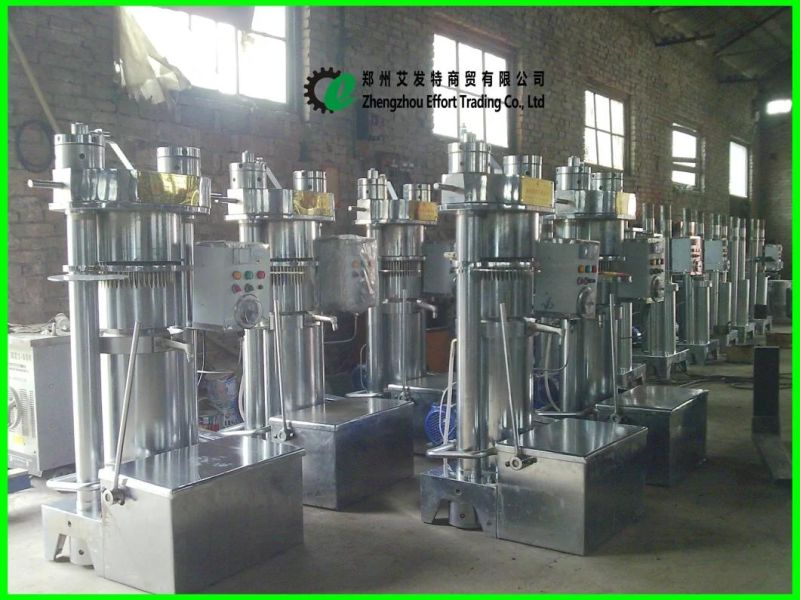

Automatic Mobile Grape Seeds Walnut Oil Press Machine
Zhengzhou Effort Trading Co., Ltd.- After-sales Service：Spare Parts for Free
- Warranty：1 Year
- Type：New-Type Hydraulic Oil Press
- Application：Flour, All, Beans, Wheat
- Voltage：220V,380V,440V
- Appearance：Horizontal
Base Info
- Model NO.：6YZ-230
- Press Materials：Sesame
- Press Series：Second
- Condition：New
- Customized：Customized
- Weight：1200 Kg
- Usage：Sesame Oil
- Color：Silver
- Raw Material：SS304,316
- Power(W)：1.5kw
- Transport Package：Standard Wooden Box
- Specification：1700*1100*1600mm
- Trademark：Effort
- Origin：Henan, China (Mainland)
- Production Capacity：1000pieces
Description
sesame
type 180
5-8 minutes
1-3kg
150-300kg
42%--52%
type 230
4-6minutes
2-7.5kg
450-750kg
type 320
8-10minutes
5-15kg
800-1200kg
almond
type 180
5-8 minutes
1-2.5kg
150-250kg
40%-45%
type 230
4-6minutes
2-6kg
350-500kg
type 320
8-10minutes
5-14kg
700-1000kg
walnut
meat
type 180
5-8 minutes
1-2.5kg
150-250kg
50%-60%
type 230
4-6minutes
2-6kg
350-500kg
type 320
8-10minutes
5-14kg
700-1000kg
pine nut
type 180
5-8 minutes
1-2.5kg
150-250kg
45%-60%
type 230
4-6minutes
2-7kg
350-500kg
type 320
8-10minutes
5-14kg
700-1000kg
4: Technical parameter
1 | Models | 6YZ-180 | 6YZ-230 | 6YZ-320 |
2 | External Dimension(mm) | 800*650*1100 | 900*750*1400 | 2100*1000*1800 |
3 | Weight of machine | 530kg | 880kg | 1320kg |
4 | Nominal pressure | 1600KN | 2200KN | 3000KN |
5 | Max pressure for working | 55Mpa | 55Mpa | 55Mpa |
6 | Power of electricity heating circle | 1KW | 1KW | 2KW |
7 | Controlling temperature of heating circle | 70-100ºC | 70-100ºC | 70-100ºC |
8 | Sesame weight/time | 1-3kg | 2-7kg | 5-15kg |
9 | Motor types and power (kw) | Y901-4-1.5kw | Y901-4-1.5kw | Y901-4-1.5kw |
10 | Stroke(mm) | 200 | 350 | 500 |
Thanks so much for you taking time to browse our home oil press. Any further questions, please feel free to contact us and we are ready to so service for you!
