• Model NO.：LD
• Application：Water for Injection,Infusion,Blood Products
• Material：SUS304, SUS316L
• Efficacy：5 Effects,6 Effects
• Heating：Steam
• Warranty：1 Year
• Support：Customized
• Transport Package：Wooden Case
• Specification：200-5000L,H
• Trademark：Wentong
• Origin：China
• HS Code：84195000
• Production Capacity：2000pieces,Year

Basic Info.

Model NO. LD Application Water for Injection,Infusion,Blood Products Material SUS304, SUS316L Efficacy 5 Effects,6 Effects Heating Steam Warranty 1 Year Support Customized Transport Package Wooden Case Specification 200-5000L/H Trademark Wentong Origin China HS Code 84195000 Production Capacity 2000pieces/Year

Product Description

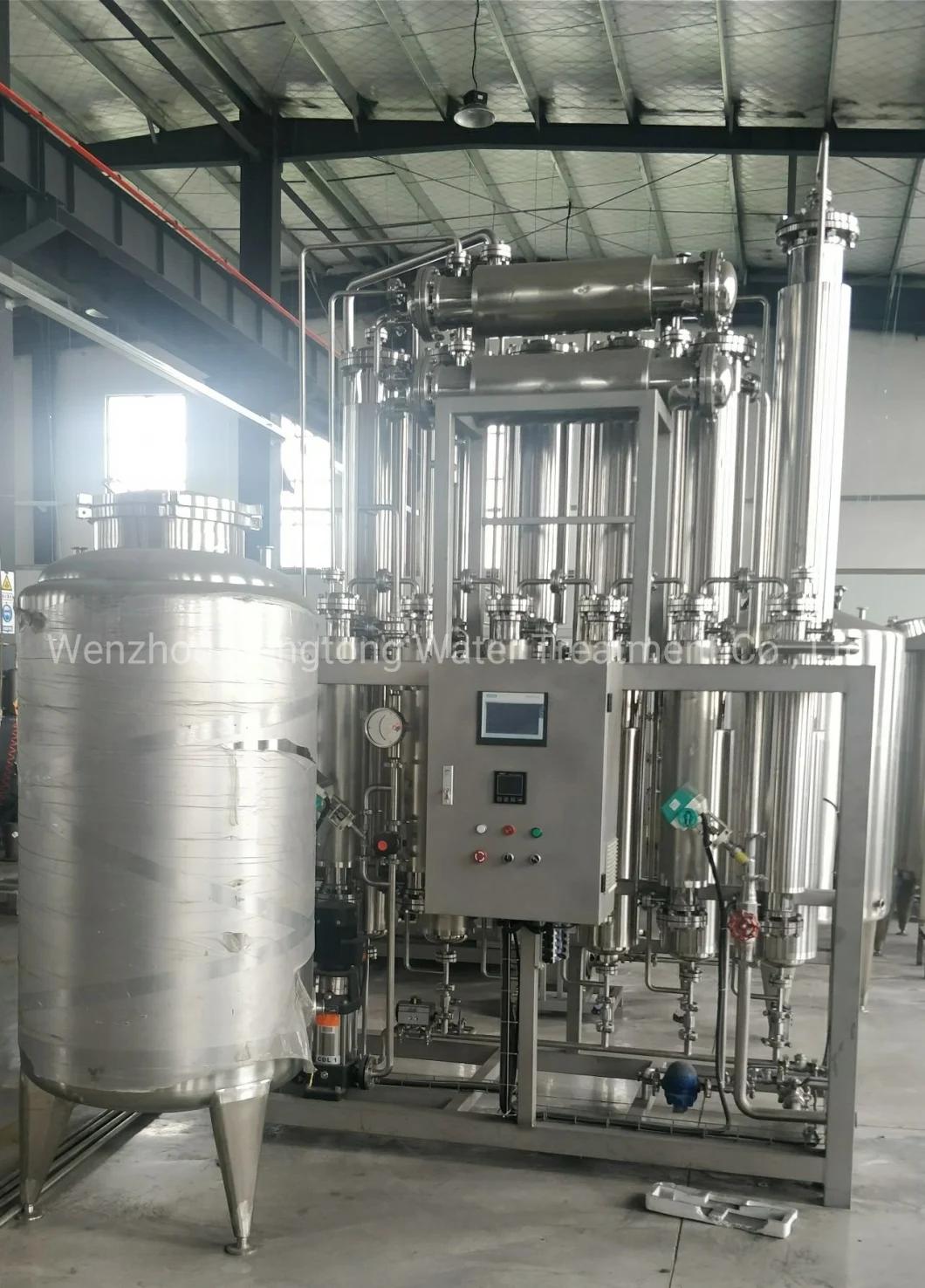

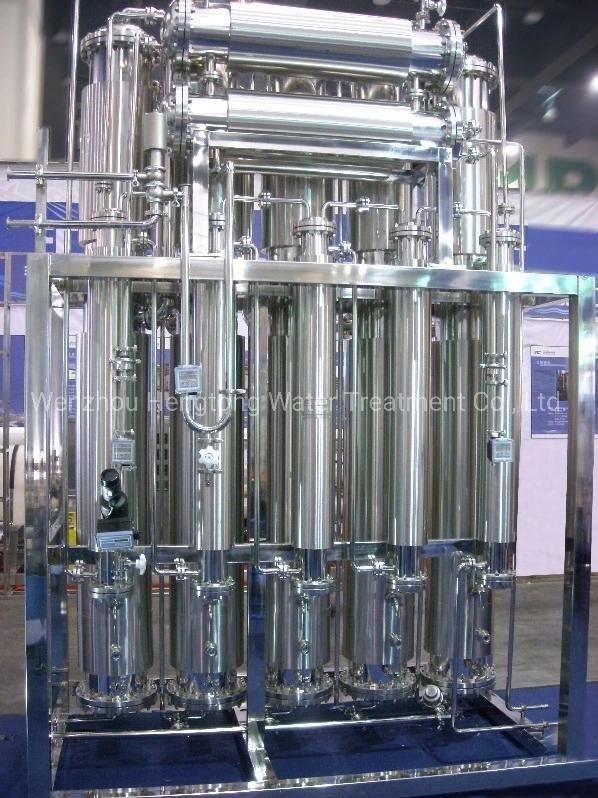

Distilled water equipment introduction
The tube-type multi-effect distilled water equipment is a device that uses deionized water as the raw material water to prepare water for injection by heating with steam. It has the advantages of reasonable structure, simple operation, high thermal efficiency, low energy consumption, and automatic detection of water quality for injection. The injection water produced by this machine is stable in quality and high in purity. The quality of the effluent water meets the requirements of the Chinese Pharmacopoeia,European Pharmacopoeia,and United States Pharmacopoeia, and the "water for injection" regulations.
The machine can also produce high-purity steam for sterilization and disinfection. It is manufactured by hospitals, pharmaceuticals, electronics, food and beverage industries.

Work principle
Qualified raw material water is boosted by a multi-stage pump and enters the condenser for heat exchange, and then enters each effect preheater in turn, and then enters an effect evaporator and is sprayed on the inner wall of the heating pipe through the material water distributor, so that the material water forms a film in the pipe It flows like a stream and is heated and vaporized by steam from the boiler.

The generated secondary steam entrained with water droplets enters the steam-water separation device from the lower end of the heating tube, the separated pure steam enters the next effect as heating steam, and the raw water that has not evaporated enters the next effect, and the above process is repeated.

The pure steam produced by the final effect enters the condenser to condense and condense the condensate water from each effect except the first effect. After removing the insoluble gas, it becomes water for injection, and the temperature can reach 92 ~ 99 ºC.

Specification

Model	Distilled water output L/H	Steam consumption Kg/H	Pure water consumption L/H	Dimention L x W x H (mm)	Net weight(Kg)
LD200-3	>200	75	230	1000*800*2000	250
LD300-4	>300	90	330	1100*800*2200	450
LD500-4	>300	160	560	1300*900*2500	720
LD500-5	>300	135	560	1800*900*2500	850
LD500-6	>300	112	560	1900*900*2500	900
LD750-5	>300	190	840	1700*1000*2900	1100
LD1000-5	>300	268	1100	2100*1100*3100	1800
LD1000-6	>300	220	1100	2200*1100*3100	1900
LD1500-5	>300	405	1670	2500*1300*3400	2100
LD2000-5	>300	525	2200	3000*1300*3400	2700
LD3000-5	>300	790	3300	3500*1500*3800	3500
LD4000-5	>300	1040	4400	4000*1500*3800	4700
LD5000-5	>300	1300	5500	4100*1700*4200	5200

Options & Accessories

• Plant steam pressure regulating valve
• Feed water conductivity monitoring
• Pure steam take from the first column
• Elevated WFI condenser
• Hot standby mode
• Hot water sanitization of feed water pipes
• Online TC monitoring device
• WFI loop skid
