• Model NO.：DR-FTJ
• Machine：Sugar Grinder
• Transport Package：Wooden Case
• Specification：CE
• Trademark：D&R
• Origin：China
• HS Code：84382000
• Production Capacity：50sets,Year

Basic Info.

Model NO. DR-FTJ Machine Sugar Grinder Transport Package Wooden Case Specification CE Trademark D&R Origin China HS Code 84382000 Production Capacity 50sets/Year

Product Description

Sugar Grinding Machine automatic chocolate producing Sugar Mill

Production Specification:

Model	FTJ250
Capacity	250kgs/hour
Spindle Motor Power	7.5kw
The speed of the main axis	3800rpm
Feeder Motor Power(screws)	1.5kw
The speed of conveyor motor	217rpm
Spindle Speed	3800r.p.m
Dimensions	1240x 960x1733mm
Packing Size:	1300x1500x2400mm
Weight	N.W. :500 kg G.W.650 kg

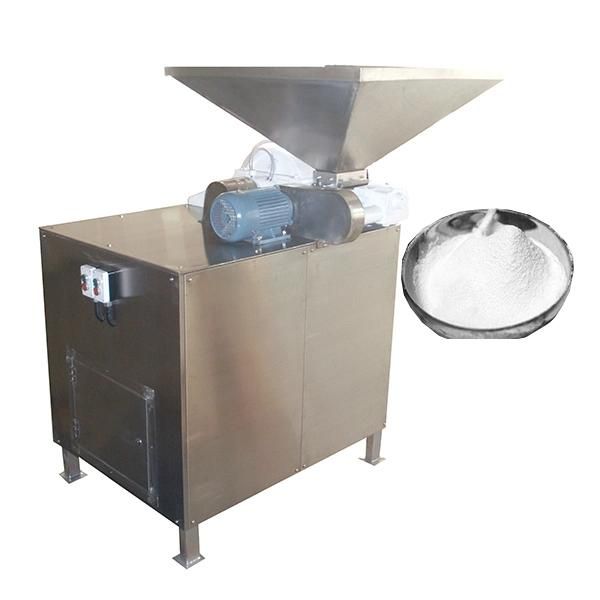

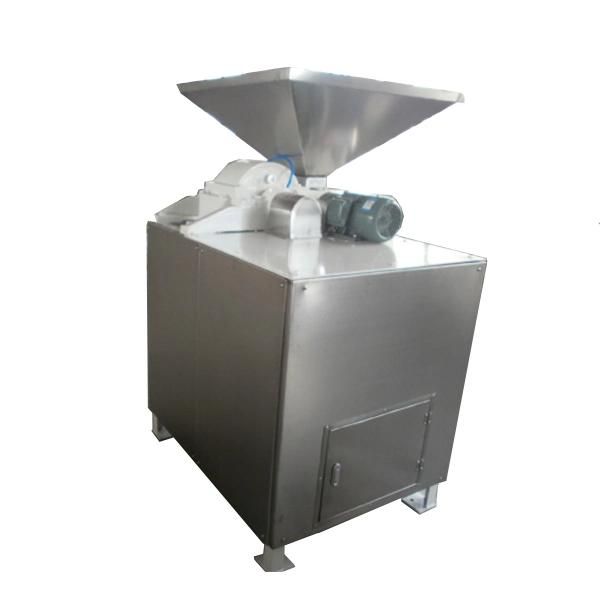

This machine is for grinding sugar to be sugar powder as required. The max
capacity is 250kg/hour.
To put one bag of sugar(about 50kgs) in the hopper. There are screws under the hopper
which will send sugar to the grinding device, after grinding, there will be a filter and
the sugar powder will flow to the bag and the big grains will be ground again. There
is a fabric bag can breathe freely.
Fineness degree before grinding is 0.5-2mm and after grinding is 100 mesh
The hopper and cover of the machine are ss304, frame and screws are iron,

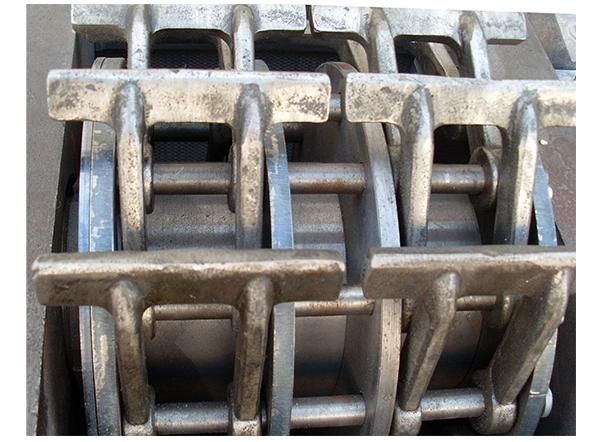

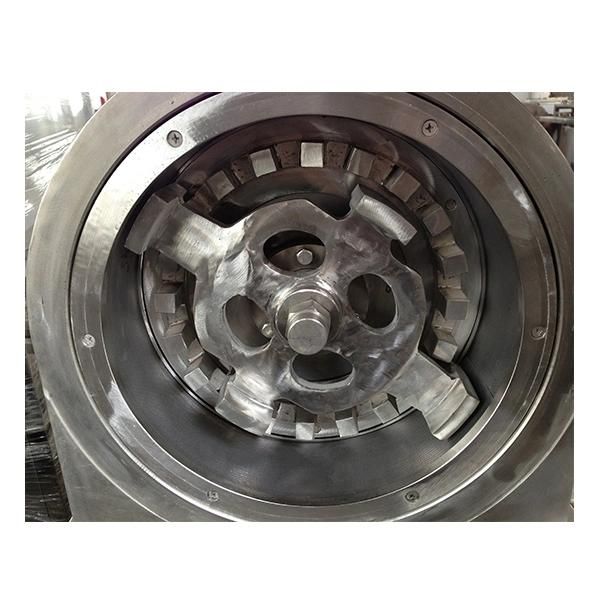

the grinding device is Mn steel.

Detailed Images:

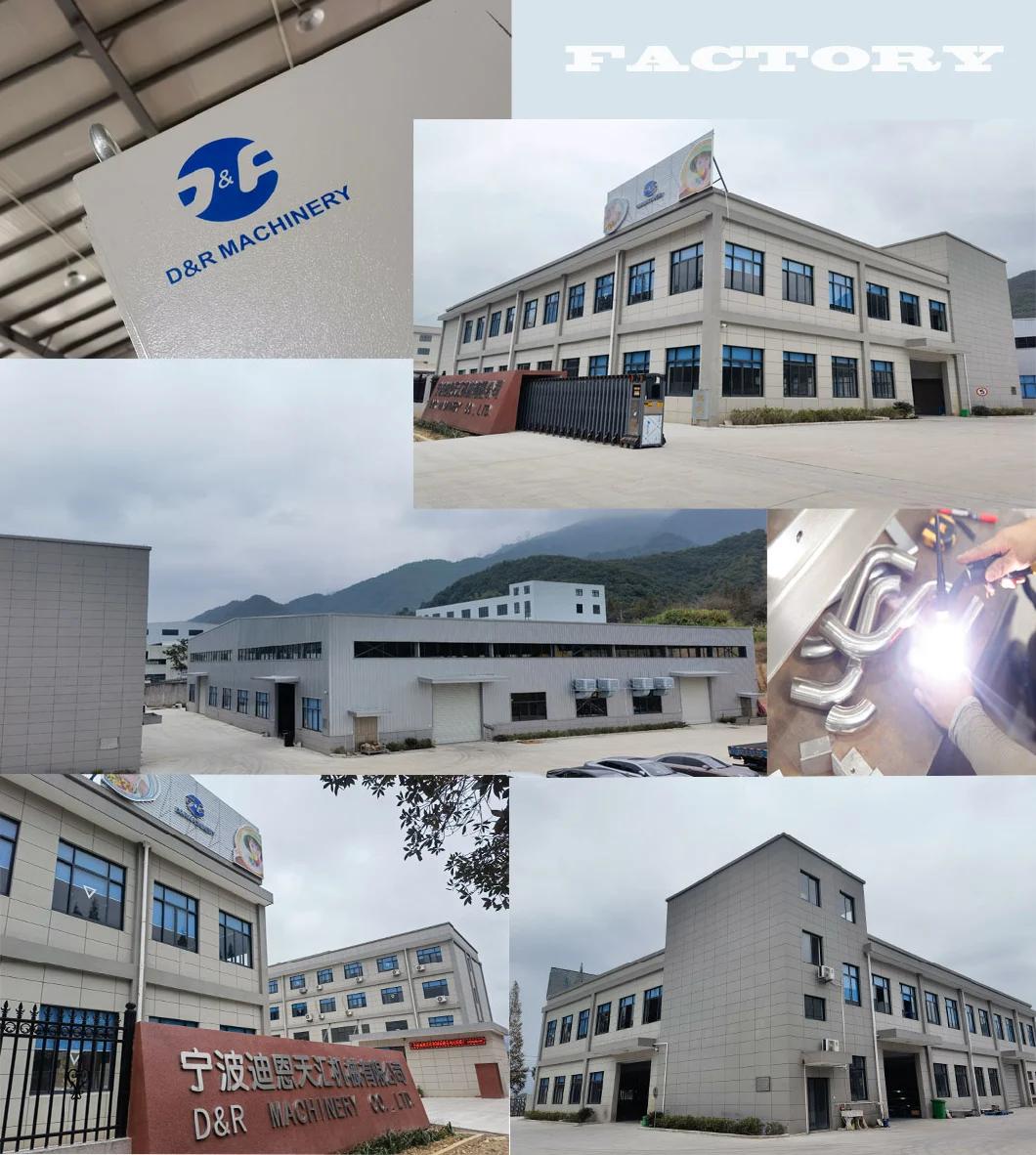

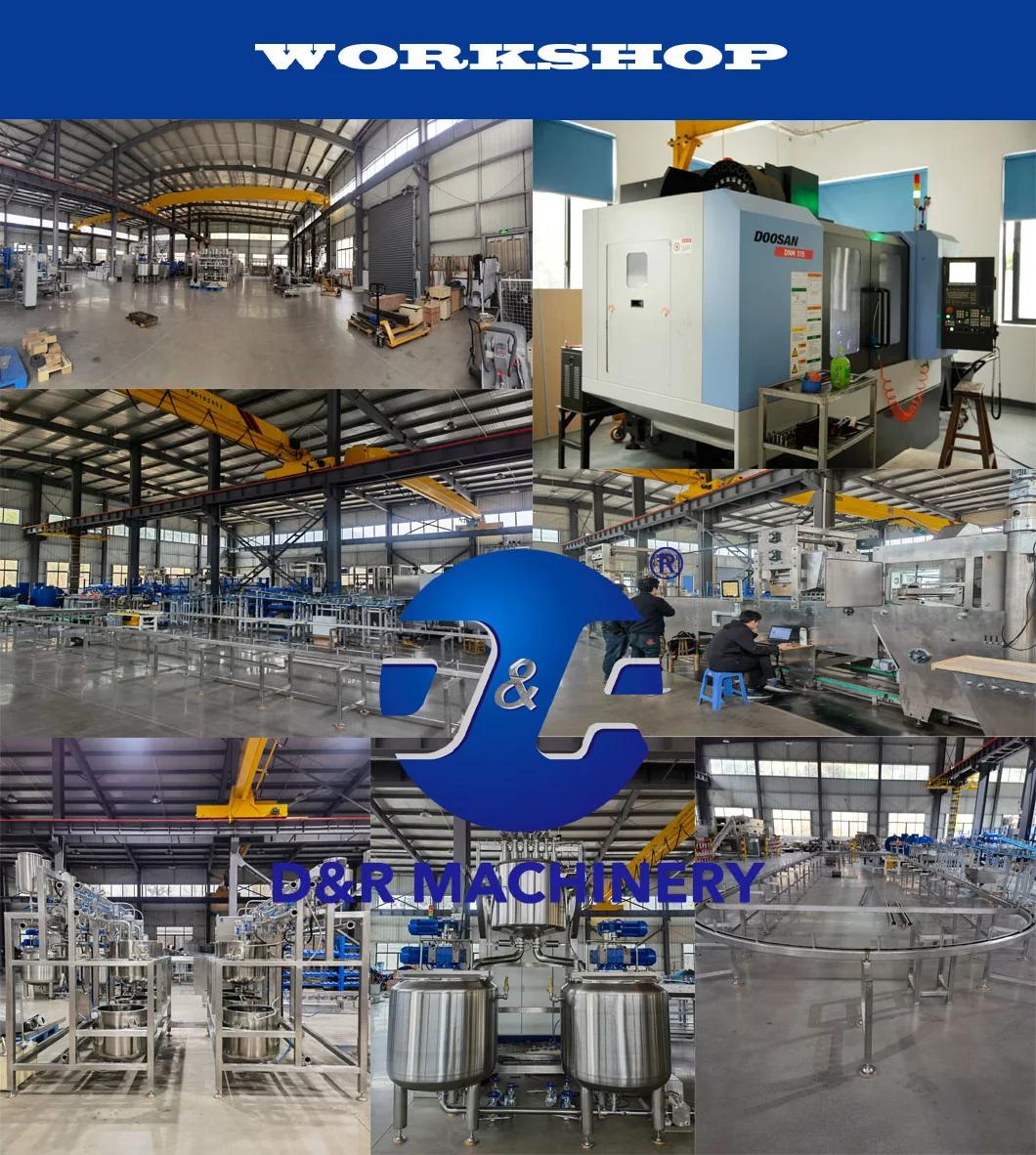

Company Introduction:
