• Condition：New
• Customized：Customized
• Transport Package：Fit for Shipping
• Specification：8000*2500*1370mm
• Trademark：HUATAI
• Origin：Henan
• HS Code：84792000
• Production Capacity：50sets,Month

Basic Info.

Condition New Customized Customized Transport Package Fit for Shipping Specification 8000*2500*1370mm Trademark HUATAI Origin Henan HS Code 84792000 Production Capacity 50sets/Month

Product Description

Brife Introduction of Huatai Cereals and Oils Machinery Co.,Ltd

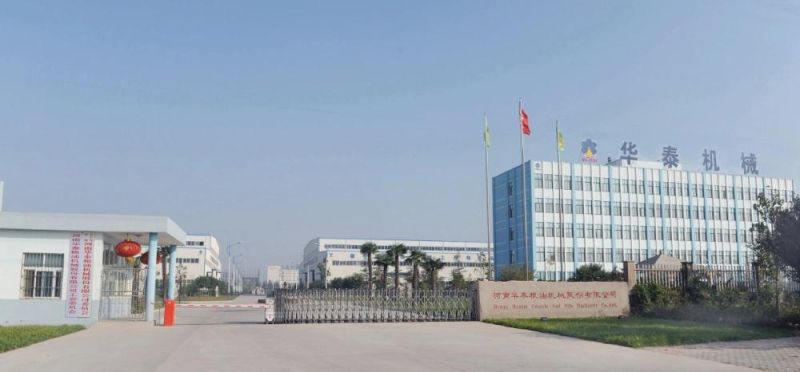

Our belief is "Seiko Winning". Henan Huatai Factory covers an area of 100,000m², of which the workshop covers an area of over 21600 m². The headquarters is equipped with 8 standard production workshops, 2 machining workshops and 12 engineering installations. Huatai Machinery has 120 sets of various production and processing equipment, including more than 80 lathes, planers, milling machines and drilling machines, more than 10 sets of shearing equipment, 6 automatic welding machines for submerged arc welding, DC welding machines and AC welding machines. Multiple units are also equipped with various auxiliary equipment and testing equipment. Welcome to visit our factory!


Huatai Products list

1. 30~1000T/D rice bran expanding pretreatment process,solvent extracting processing equipment
2. 30~600T/D Rice bran First-grade oil refining equipment
3. Series rice bran molecular distillation refining primary oil complete equipment
4. 30~5000T/D Oil pretreatment, pre-pressing, leaching equipment
5. 50~1200T/D Grease refining equipment
6. 10~2000T/D Corn deep processing equipment
7. 10~1200T/D Palm oil, cottonseed oil refining and separation equipment
8. 30~1000T/D Biodiesel equipment
9. Rice bran oil, cottonseed oil mixed oil refining equipment

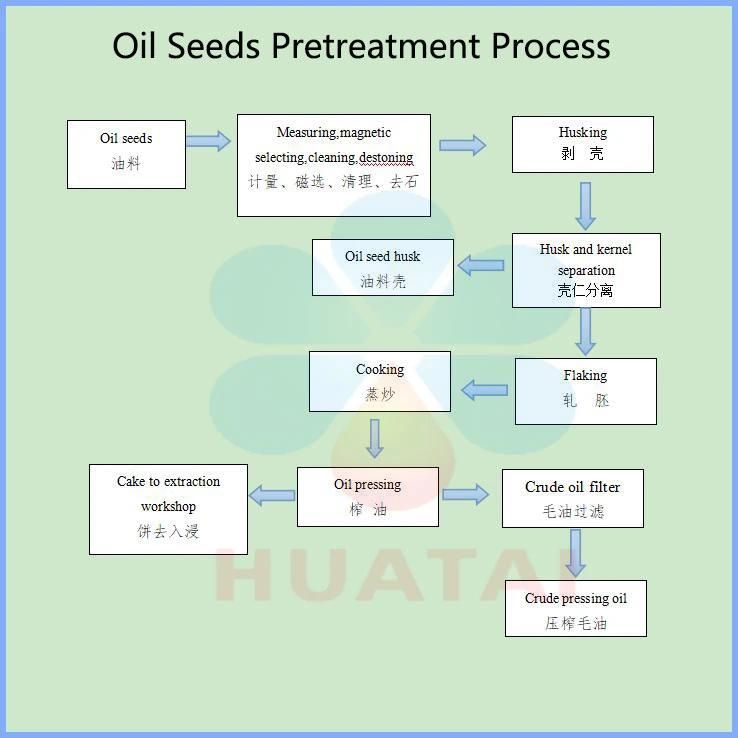

Oil Seeds Oil Press Process
The following process are general method, for some special oil seeds, it may needs to change some part to fit processing requirement.

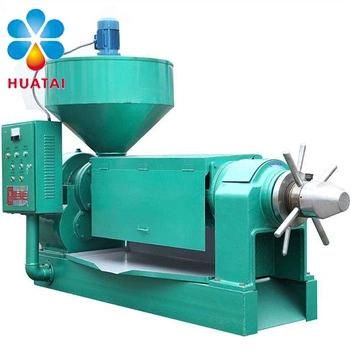

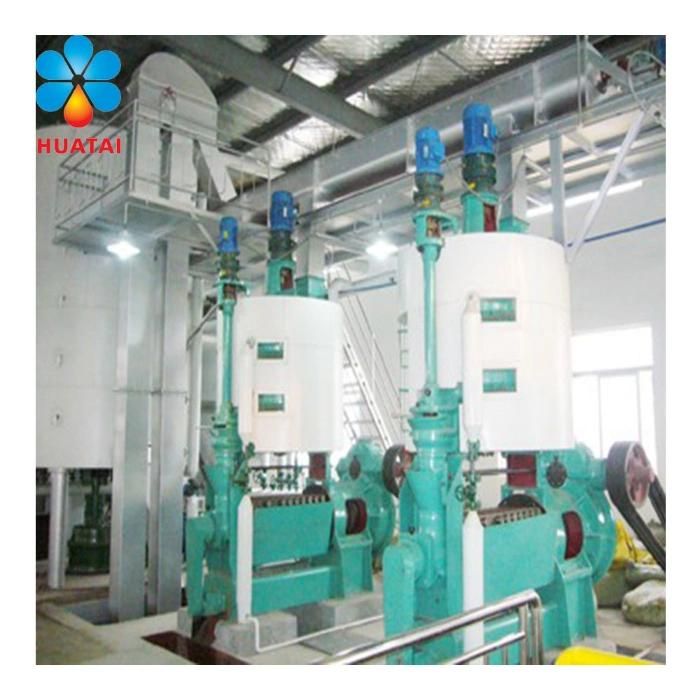

Spiral Oil press advantage
with mechanical squeeze method, the spiral oil press produced by our company is suitable for squeezing vegetable oil from rapeseed, soybean, cottonseed, shelled peanut, flax seed, tung seed, sunflower seed and palm kernel, et. The product has characteristics of small investment, high capacity, wide compatibility and high efficiency. The product conforms to the "Technology Standard of Agricultural Spiral Oil Press" under JB/T9793·1-1999 of the People's Republic of China.

model parameter Term	YZYX70	YZYX90	YZYX10(95)	YZYX10-6/8/9
Process capacity	1.3 t/24h	3 t/24h	3.5-4 t/24h	4.5 t/24h
Required power	4kw	5.5kw	17.5/11kw	11kw
Weight	195kg	285 kg	570 kg	590 kg
Dimension (L*W*H)	1090*405*806	1200*550*1000	1620*580*1195	1720*580*1185
Dry Cake oil content	≤8%	≤8%	≤8%	≤8%
Spiral rotate speed	32~42r/min	32~42 r/min	32~42 r/min	32~42 r/min

Oil extraction workshop

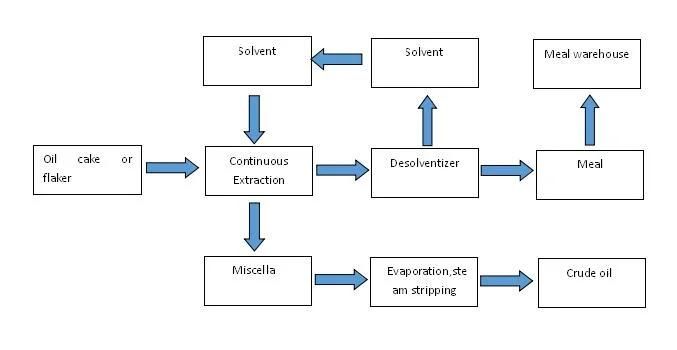

 Extracting process drawing

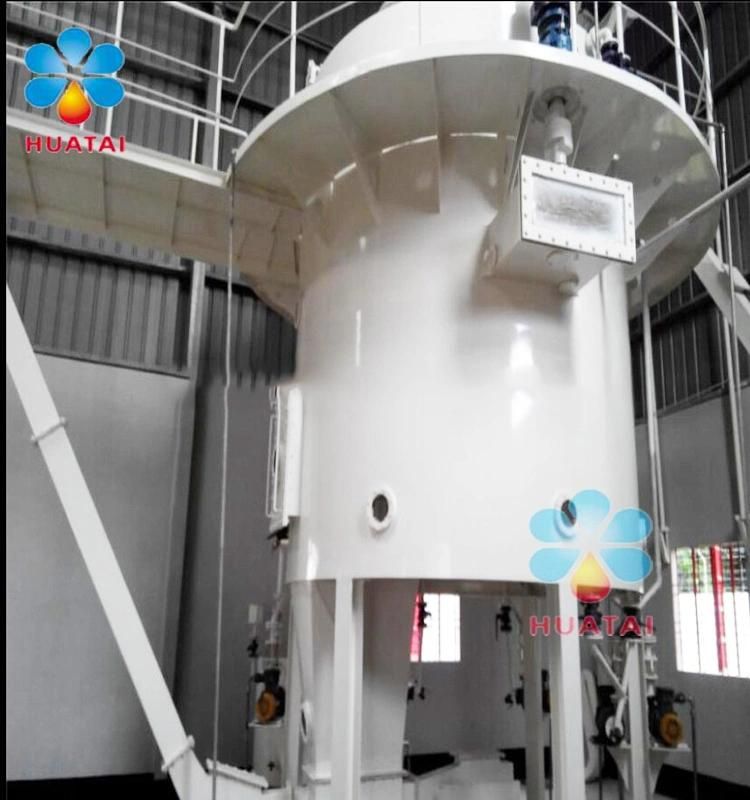

Rotatory extractor
1. Loading capacity is 80%~85% of the extractor volume
2. Oil cake or flaking material temperature is 50~55ºC
3.  solvent temperature is 50~55ºC
4. Spraying method: the method of using large spray is better, the liquid level of             the spray section is preferably 30~50mm higher than the  material surface,             and when spray solvent should not overflow into the dry section.
5. Extractor operating  cycle is 90~120min

Depend on the processing amount, there are Towline extractor and loop extractor for choose.

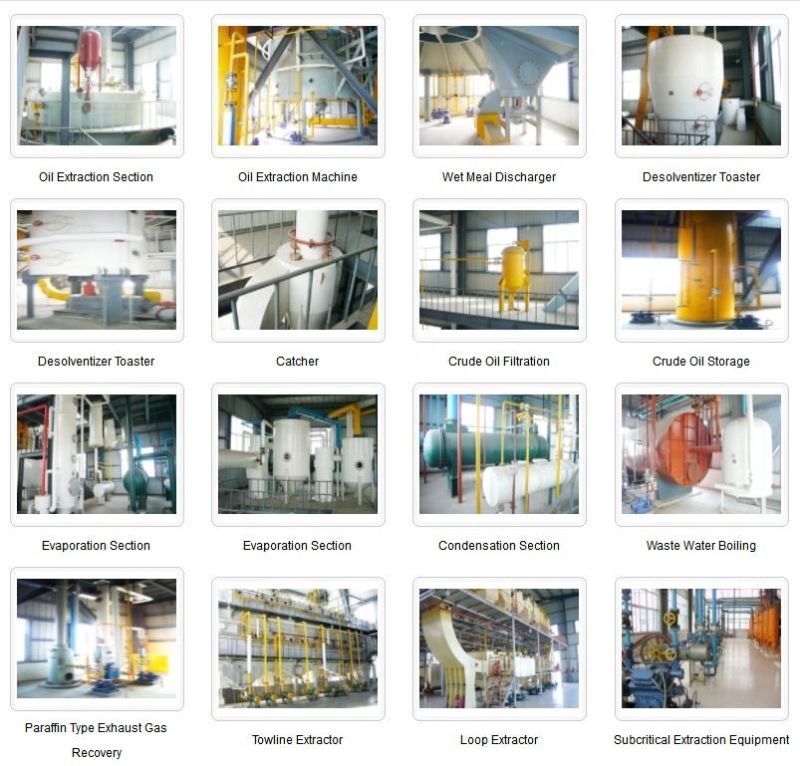

Equipment of extracting workshop

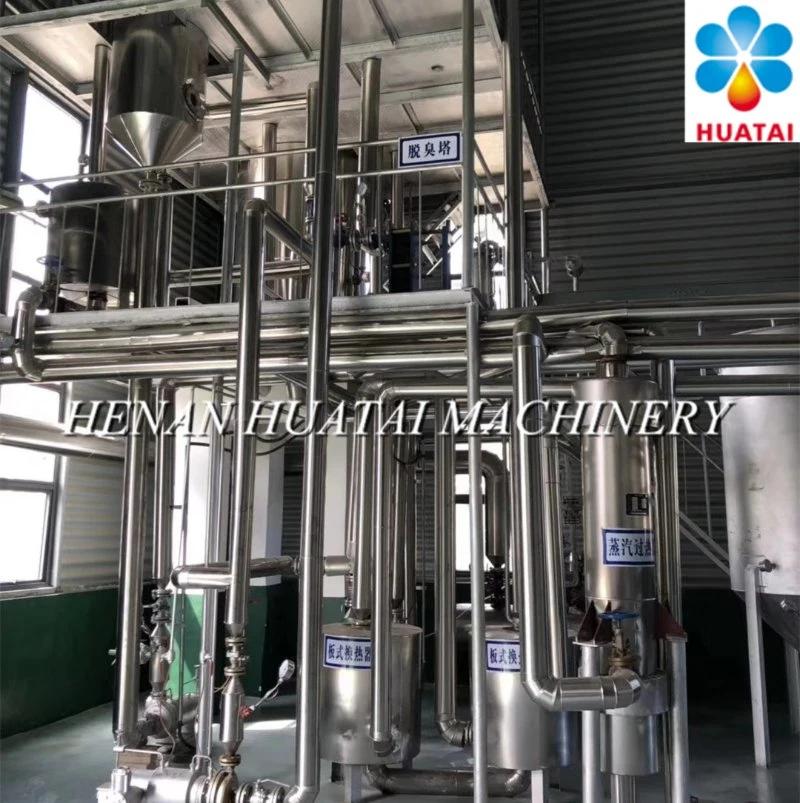

Oil refining workshop

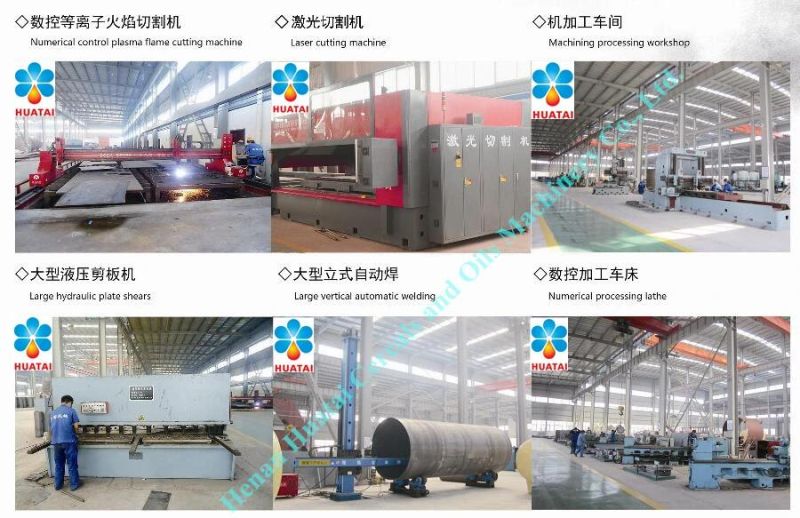

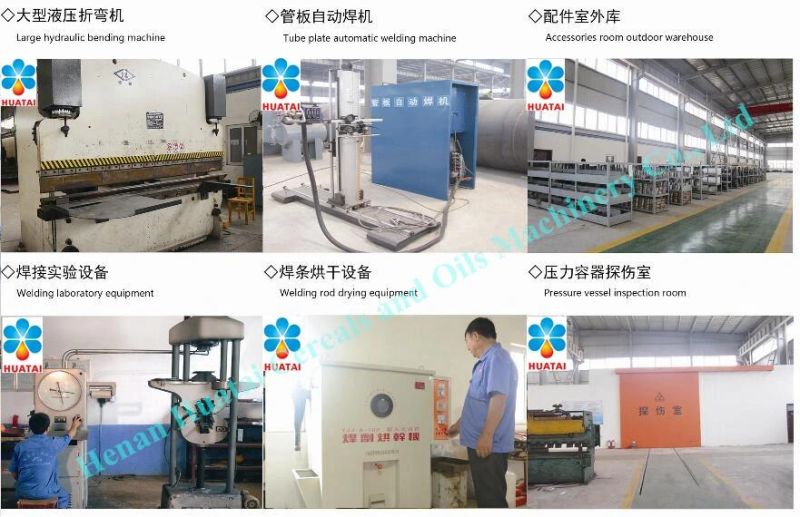

Huatai workshop live action and appliances



Huatai Honors and Qualification certificates




Customer visiting
