• Model NO.：DR-SJB
• Origin：Ningbo of China
• HS Code：8438900000
• Production Capacity：2000 Sets,Year

Basic Info.

Model NO. DR-SJB Origin Ningbo of China HS Code 8438900000 Production Capacity 2000 Sets/Year

Product Description

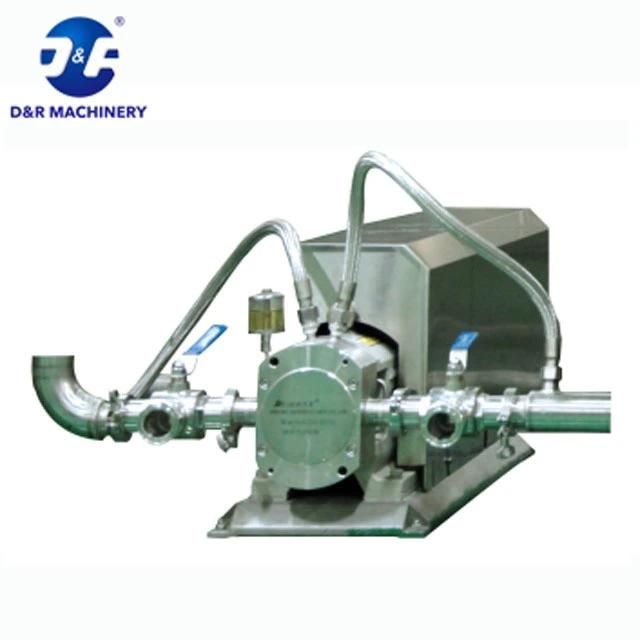

Food Machine Accessories Chocolate Dosing Pump
 Production Specification:
The chocolate pump is specialized for delivery of the chocolate mass.
The pump body is with  water-circulating heat preservation jacket system. Customers can choose the different model according to the flow rate required. The pump can be used individually or with other production lines for automatic chocolate mass feeding.
The pump head and shell  is stainless steel.
Tri-impeller rotor :the capacity and performance is better than other rotors .

Technical data

Type	Capacity (L/r)	Rotation speed(r/min)	Flow(m3/h)	Pressure(MPa)	Power(kw)	Inlet&outlet DN(MM)
DR-ZZB12- 0.1C	0.01	10-720	0.1	0.1-1.2	0.12-1.1	10
DR-ZZB12- 0.5C	0.04	10-720	0.5	0.1-1.2	0.25-1.5	15
DR-ZZB12- 2C	0.15	10-720	2	0.1-1.2	0.25-2.2	25
DR-ZZB12- 5C	0.32	10-500	5	0.1-1.2	0.37-3	40
DR-ZZB12- 10C	0.65	10-500	10	0.1-1.2	1.5-7.5	50
DR-ZZB12- 15C	1.1	10-500	15	0.1-1.2	2.2-11	65
DR-ZZB12-20 C	1.74	10-500	20	0.1-1.2	2.2-15	65
DR-ZZB12- 30C	2.6	10-500	30	0.1-1.2	3-22	80
DR-ZZB12- 40C	3.65	10-500	40	0.1-1.2	4-30	100
DR-ZZB12- 60C	5.2	10-500	60	0.1-1.2	5.5-45	125
DR-ZZB12- 80C	6.8	10-500	80	0.1-1.2	7.5-55	125
DR-ZZB12- 120C	9.8	10-400	120	0.1-1.2	11-90	150
DR-ZZB12-150 C	12.8	10-400	150	0.1-1.2	15-160	150
DR-ZZB12-200C	16	10-300	200	0.1-1.2	18.5-185	200

Detailed Images:






Company Introduction:

TOTAL SOLUTION ,TOTAL CARE
D&R Machinery are professional confectionery machine manufacturers with over 10 years in the business operating at the highest industry standards.
We've built a reputation on engineering, designing and delivering high performance total-solution confectionery machinery to clients with absolute precision around the world.

The confectionery machinery industry is a small world, and we've slowly become leaders in innovation and creative solutions for clients from all walks of the industry. D&R Machinery has become synonymous with one word and one world only in the confectionery machinery world and that is 'total-solution', that is end to to end turn key production of the highest quality confectionery machinery in the world.

Becoming the D&R Machinery you see today starts and ends with the word 'care'. You don't become the best without a plan that ensures our clients achieve the success they desire, and at D&R Machinery it starts with care and ends with trust, reliability and innovation.
