• Model NO.：GY-105
• Transport Package：Wooden Case
• Specification：ISO9001
• Trademark：Genyond
• Origin：Shanghai, China
• Production Capacity：3 Production Lines Per Months

Basic Info.

Model NO. GY-105 Transport Package Wooden Case Specification ISO9001 Trademark Genyond Origin Shanghai, China Production Capacity 3 Production Lines Per Months

Product Description

DESCRIPTION

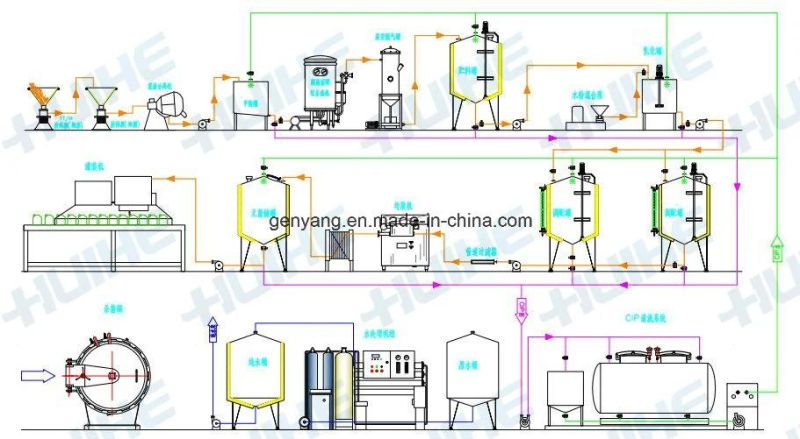

Lines and equipment especially designed for the production and aseptic filling of soy milk according to the highest quality international standards. The soy milk line production process is composed of the following phases: reception of soy beans, de hulling, dehydration, grinding, solubilization, separation, clarification, inhibition, standardization/formulation, homogenization, cooling and storage, sterilization and aseptic filling. Soy milk can also be kept for further processing in order to obtain, for example, flavored soy milk, soy drinks, beverages etc.
The separation phase allows to obtain a by product called "Okara" and generally used as animal food.



CONSTRUCTION FEATURES
Working capacity                         from 1000 up to 40000 l/h
Products                                       - Soy milk
                                                       - Flavored soy milk
                                                       - Vitamin enriched soy milk
                                                       - Dietary fibra enriched soy milk
                                                       - Soy milk based drinks with juice fruit addition
                                                       - Soy yogurt
                                                       - Soy milk based puddings and desserts
                                                       - Bases for soy ice cream
                                                       - Soy milk powder

Soy milk production line may consist of following ancillary machines:

1)       Screening machine and soaking machine

2)       Grinding machine , mixing machine, and filtering machine

3)       Homogenizer, pasteurizer and deaerator

4)       Secondary sterilization using Retort sterilizer or sterilizing tunnel.

5)       Filling machine and packing machine

6)       CIP system and others
