• Customized：Non-Customized
• Weight：2280kg
• Capacity：10-14 T,H
• Power：75-90 Kw
• Transport Package：Wooden Case
• Specification：1880X1590X2330
• Trademark：CLJ
• Origin：China
• HS Code：84378000
• Production Capacity：4000 Units ,Year

Basic Info.

Customized Non-Customized Weight 2280kg Capacity 10-14 T/H Power 75-90 Kw Transport Package Wooden Case Specification 1880X1590X2330 Trademark CLJ Origin China HS Code 84378000 Production Capacity 4000 Units /Year

Product Description

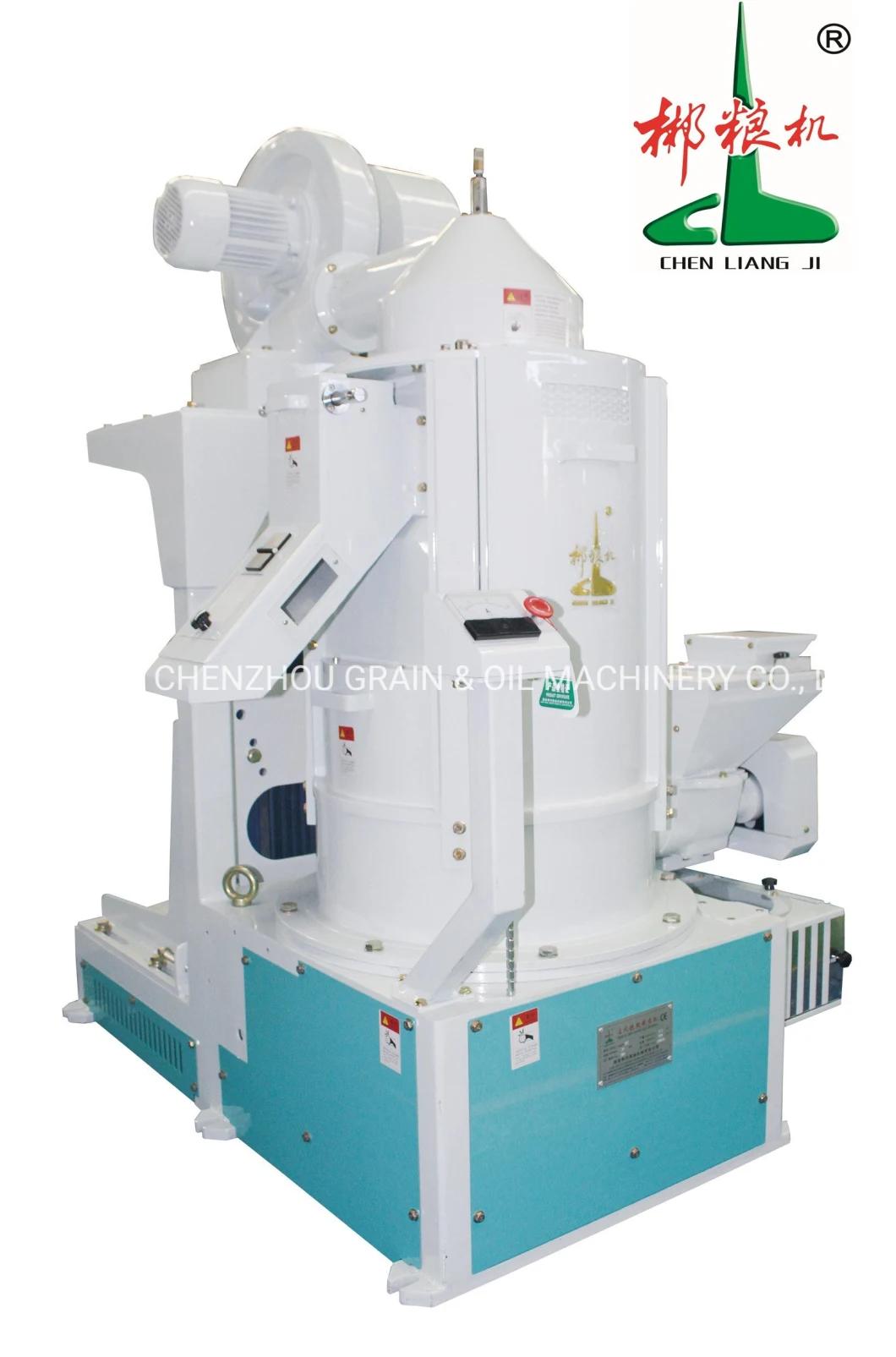

Vertical Iron Roller Rice Whitener is consists of husking chamber, feeding units, outlet units, bran suction units, machine frames and transmission parts.
1). Husking chamber Composed of screw, emery rollers, sieve brackets, rice scraper adjustment devices, spring setting rollers, and a pressure valve. The sieve bracket can be divided vertically into upper and bottom halves, easy for cleaning, disassembly and replacement. Pressure valve rams and rice scrapers are adjustable for different pressure requirements in the chamber.
2). Feeding units. Composed of a feeder and screw conveyor parts.
3). Bran Suction Units. Composed of bran suction channels, bran setting rollers, bran sucking devices, air-blowers, aspiration channels, exterior bran suction aspirators and cyclones.
4). Machine Frames and Transmission System. Firm and stable integration of machine and motor supporters. The transmission system consists of motor pulleys, belt pulleys and main bearing blocks.



Model	MNTL21	MNTL26B	MNTL28A	MMNTL30
Production Capacity	4-6t/h	7~10t/h	9~12t/h	10~14 t/h
Power	•Main motor: 37-45Kw •Motor of feeding screw:1.5Kw •Motor of air blower:2.2Kw	•Main motor: 45-55Kw •Motor of feeding screw:1.5Kw •Motor of air Blower: 2.2Kw	•Main motor: 55-75Kw •Motor of feeding screw: 1.5Kw •Motor of air blower: 2.2Kw	•Main motor:75-90Kw •Motor of feeding screw: 3Kw •Motor of air blower: 2.2Kw
Dimension	1430x1390x1920	1560x1470x2150	1560x1470x2250	1880x1590x2330
Weight	1310Kg (45KW)	1770Kg (55KW)	1850Kg (75KW)	2280Kg (75KW)
Rotate Speed	Main shaft: 546r.p.m. Feeding screw:610r.p.m	Main shaft:476r.p.m. Feeding screw:610r.p.m	Main shaft:476r.p.m. Feeding screw:610r.p.m	Main Shaft:476r.p.m. Feeding screw:610r.p.m
Volume of Air Suction	Air Quantity: 40m3/min Static Pressure: :100-200mm H2O Diameter of aspiration pipe is 203mm(φ8″) Note: Values measured with no load	Air Quantity: 50m3/min Static Pressure: :100-200mmH2O •Diameter of aspiration pipe is 240mm(φ8″)Note: Values measured with no load	Air Quantity: 60m3/min Static Pressure: 100-200mmH2O •Diameter of aspiration pipe is 240mm(φ8″) Note:Values measured with no load	Air Quantity: 60-70m3/min Static Pressure: 100-200mmH2O •Diameter of aspiration pipe is 280mm(φ8″) Note: Values measured with no load
