• Model NO.：SD1511
• Condition：New
• Customized：Customized
• Number of Holes：2
• The Aperture：7
• Transport Package：Woven Bag
• Specification：plastic
• Trademark：pinyang
• Origin：Wuhan China
• HS Code：84379000
• Production Capacity：0.9-0.56t,H

Basic Info.

Model NO. SD1511 Condition New Customized Customized Number of Holes 2 The Aperture 7 Transport Package Woven Bag Specification plastic Trademark pinyang Origin Wuhan China HS Code 84379000 Production Capacity 0.9-0.56t/H

Product Description

Performance characteristics

Applicable to gravity and centrifugal force mixed discharge way of the hoist. Line speed ≤2.5 m / s.

Use suggestions

1, especially for high-speed centrifugal discharge.

2, the proposed minimum bucket distance for the bucket convex width "B" +25 mm, according to the amount of lifting requirements to reduce the small bucket installation spacing;

3, the proposed lift line speed ≤ 2.5 m / s;

4, recommend "(z-y)" + 10% of the capacity as the engineering capacity of the design.

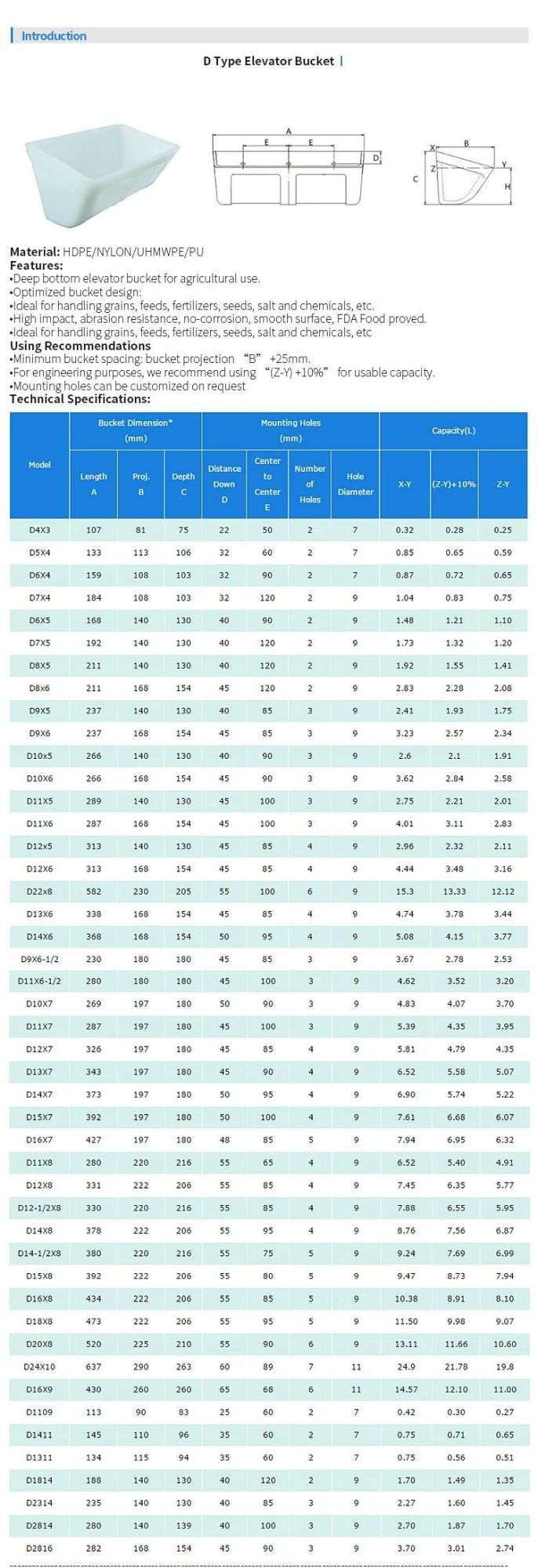

Model	A	B	C	D	Y	E	Hole number	Aperture	volume(X-Y)	volume(Z-Y)
D1311(5*4)	133	113	103	5.5	32	80	2	7	0.85	0.59
D1814(7*5)	183	140	130	7	40	120	2	9	1.73	1.2
D2014(8*5)	211	140	130	7	40	100	2	9	1.92	1.41
D2314(9*6)	237	140	130	7.5	40	85	3	9	2.41	1.75
D2814(11*5)	289	140	130	7	45	100	3	9	2.75	2.01
D2316(9*6)	237	168	154	7	40	85	3	9	3.23	2.34
D2616(10*6)	262	168	154	7	40	85	3	9	3.62	2.58
D2816(11*6)	287	168	154	7	45	100	3	9	4.01	2.83
D3116(12*6)	313	168	154	7	45	100	4	9	4.44	3.16
D3316(12*6)	338	168	154	7	45	85	4	9	4.74	3.44
D2919(11*7)	287	197	180	9.5	45	75	4	9	5.39	3.95
D3121(12*8)	315	220	206	11	55	85	4	9	7.45	5.77
D3621(14*8)	368	220	206	11	55	95	4	9	8.76	6.87
D3921(15*8)	392	220	206	11	55	80	5	9	9.47	7.94
D4121(16*8)	420	220	206	11	55	85	5	9	10.38	8.1
D4721(18*8)	473	220	206	11	55	95	5	9	11.5	9.07
D5121(20*8)	520	220	210	11	55	90	5	9	13.1	10.6
