500L Syrup Mixing Tank 40~200rpm Variable Speed Mixing Tank

Wenzhou Ranking Imp. & Exp. Co., Ltd.
  • Process：Mixing Tank
  • Power Source：Electric
  • Certification：CE, ISO9001
  • Automatic Grade：Automatic
  • Application：Milk, Yogurt, Cheese, Syrup & Paste
  • Customized：Customized

Base Info

  • Model NO.：syrup mixing tank
  • Mixing Tank Material：Ss304 , Ss316L
  • Mixer Speed：40~200rpm Variable Speed
  • Mixer Type：High Shear Emulsifier, Dispersion Disk, Anchor
  • Tank Heating Method：Gas Heating, Steam Heating, Electric Heating
  • Cooling：Ice Water Cooling
  • Thermal Insulation：PU , Rock Wool
  • Tank Top：Sealed Top with Manway
  • Tank Bottom：Dish End or Conical Bottom
  • Mixer Mount：Top Entry , Bottom Entry
  • Power Supply：220V , 380V
  • Transport Package：Wooden Case
  • Specification：50L~2000Litr customized
  • Origin：China
  • HS Code：8479820090
  • Production Capacity：5000PCS Per Season

Description

500L Syrup Mixing Tank 40~200rpm Variable Speed Mixing TankOrifice tableNo.Size Connection typeUsageN1Φ32Quick installMaterial inletN2Φ32Quick installAir filterN3Φ32Quick installSpare holeN41 1/2" Flange Steam inletN51 1/2" FlangeCondensate water outletN6Φ50Quick installMaterial outletCΦ32Quick installCleaning holeM400Quick openManholeE1-280-----------Sight glassTM27×2Screw threadTemperature gaugePlease contact our on line service team to get the drawing of this mixing tank

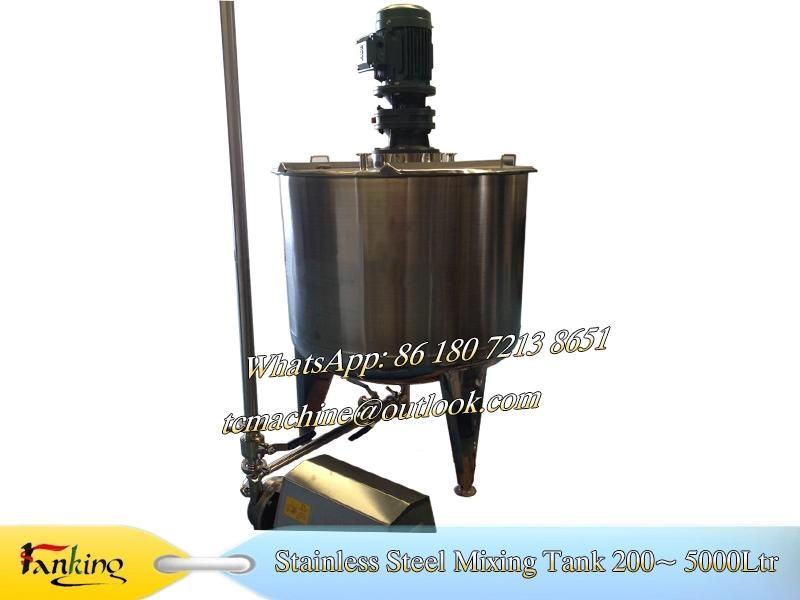

500L Syrup Mixing Tank 40~200rpm Variable Speed Mixing Tank
Other Details of Stainless Steel Mixing TankNo.UsageTips 1Emulsor motor 2Heat preservation dish end 3Jacketed dish end 4Inner layer dish end 5Scraper mixer 6Food-grade Teflon scraper 7PU insulation 8Outer shellSS 3049Jacketed shellSS 30410Inner wall contact to productSS 30411Support EarSS 30412Sight glassSS 30413CIP cleaning ballSS 30414Gear reducer 15Manhole400mm diameter500L syrup mixing tank 40~200rpm variable speed mixing tank price
all of our mixing tanks are made of SS304 and SS316. Price of stainless steel 304 and 316 chnage time to time, the mixing tank price will be different. please contact our online sercive team for the latest price.
