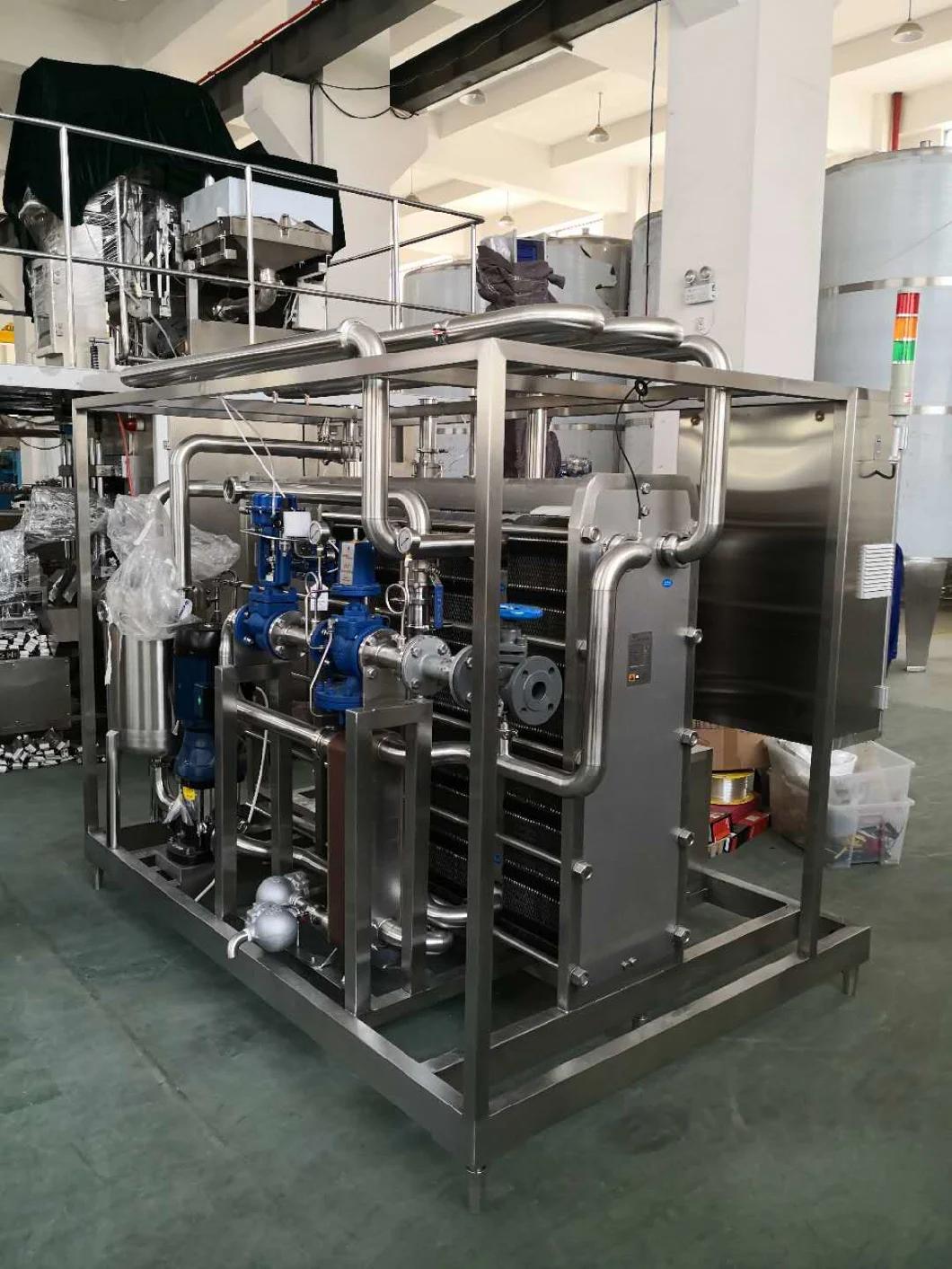

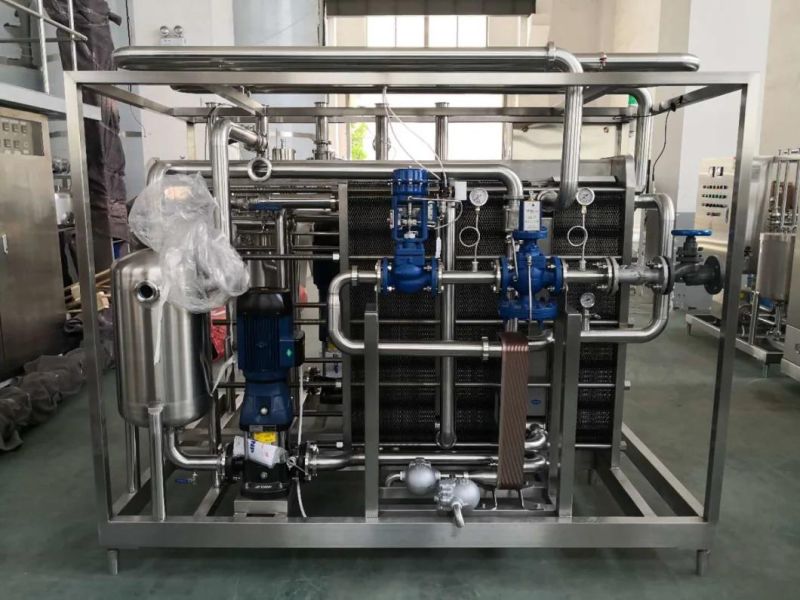

Stainless Steel Dairy Machine Plate Pasteurizer for Pasteurized Milk Processing Line
Weishu Machinery Technology (Shanghai) Co., Ltd.- After-sales Service：One Year
- Warranty：One Year
- Customized：Customized
- Certification：CE, ISO9001
- Scale：Medium
- Automation：Automatic
Base Info
- Model NO.：WS-3-1
- Principle：Heat Exchange
- Structure：Plate
- Operation：Continuous
- Energy：Heat Sterilization
- Property：Physical Sterilization
- Type：Induction Electronics Sterilization Equipment
- Power：5.0-12kw
- Heating Moad：Steam or Electric Heating
- Main Material：SUS304&316L
- Transport Package：Export Standard Package
- Specification：1000L,H
- Trademark：WS
- Origin：Shanghai, China(Mainland)
- HS Code：8419899090
- Production Capacity：Shanghai
Description
ShanghaiEquipment description
Technical parametre: 5ºC→65ºC(homogenization) → 85~95ºC(15S) →5ºC This unit can be connect with separator, homogenizer, flash evaporator & degasser ect. this unit is used as Pasteurizer (widely used in fresh milk, milk beverage, juice, tea, alcohol, ice cream ect.) ,and also pre-sterilize material when producing Pasteurized milk(long life milk). This machine has features of high heat recovery, lower energy cost, strict design on the construction and easy operation, simple maintenance.
Control type:
Full-automatic control (PLC with touch screen),Semi automatic PID Control.
Main configuration:
A. Plate heat exchanger; B. Material-balance bucket; C. Hot water-balance drum; D. Hot water pump; E. Product pump; F. Steam & water mixer; G. Electricity box; H. Stainless steel pipes and valves etc. Production capacity: 500L-20T/H

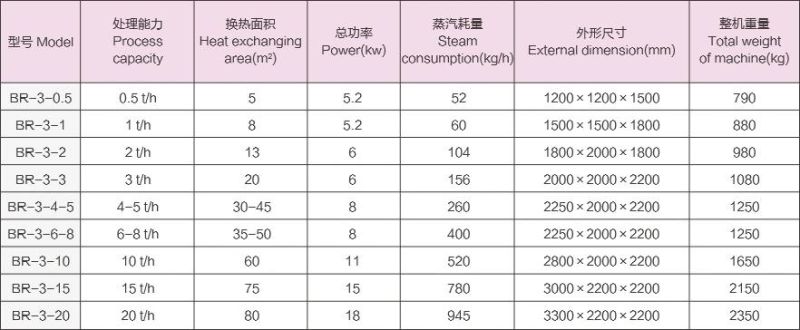

Main technical parameter:
Company Profile

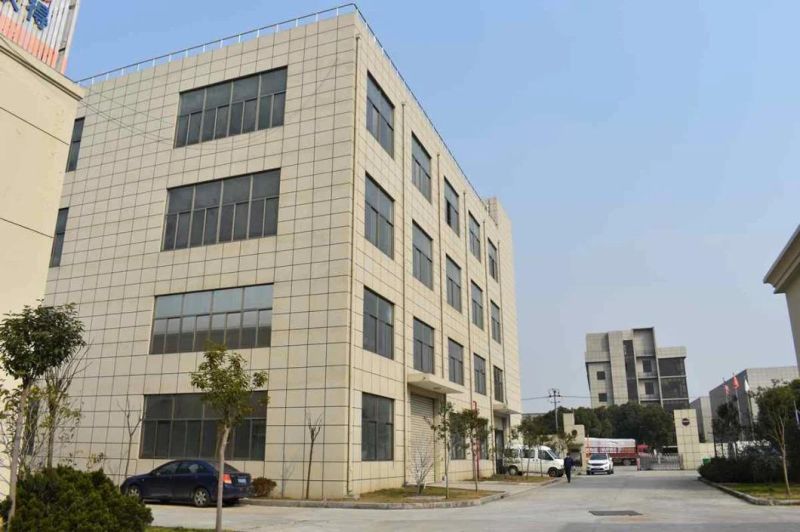

Weishu Machinery Technology (shanghai) Co.,Ltd located in Fengxian district Shanghai China, it take one hour from PUDONG airport to the factory by vehicle, a factory that specialist in design ,R&D, produce, distribute of dairy and beverage production line, have more than 25 year experienced engineers, cooperate with professor of university,Introduce German technology ,we passed ISO9001, applied patents, according to different requirement of customers, assist to complete mechanical engineering design, project budget, process design and package design etc. , Our product widely use in Europe Southeast Asia ,Africa, Middle east Europe America , supply 24 hours service, we looking forward to cooperate with you!
