• Model NO.：SG65*55 wood chips crushing machine
• Customized：Non-Customized
• Color：Selected
• Output：1-2t,H
• Hammer Quantity：48PCS
• Finished Products：1-12mm
• Crushing：Wood Chips, Straw, Rice Huck.......
• Weight：1.5t
• Size：1700*1000*1100mm
• Power：37kw
• Transport Package：in iron sheet case
• Specification：CE ISO9001 SGS
• Trademark：YULONG
• Origin：Jinan, Shandong Province, China
• HS Code：84361000
• Production Capacity：100 sets,week

Basic Info.

Model NO. SG65*55 wood chips crushing machine Customized Non-Customized Color Selected Output 1-2t/H Hammer Quantity 48PCS Finished Products 1-12mm Crushing Wood Chips, Straw, Rice Huck....... Weight 1.5t Size 1700*1000*1100mm Power 37kw Transport Package in iron sheet case Specification CE ISO9001 SGS Trademark YULONG Origin Jinan, Shandong Province, China HS Code 84361000 Production Capacity 100 sets/week

Product Description

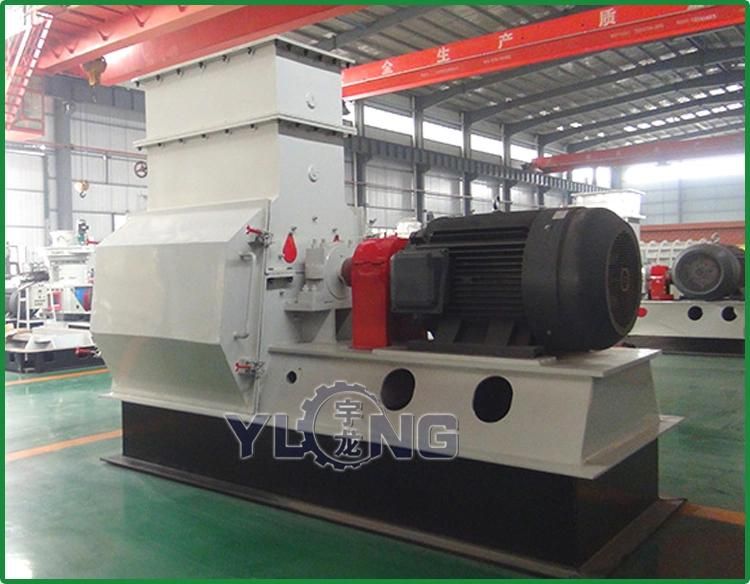

SG Multifunctional crushing machine/ hammer mill/ crushing grain, straw, wood chips and so on.

1. The SG wood chips crushing machine is the most ideal grinding equipment for all kinds of wood pieces, wood shavings, grass, straw, stalk, corn, weeds, soybean and so on. It adopts water cooling structure inside, avoiding the damage to spare parts due to long time working friction. Except biomass, it also can crush animal feed materials such as soybean, maize, cereal and fertilizer materials from animal manure, chemical etc. Which is mainly used in wood factory, fodder factory, cultivation factory, organic fertilizer factory, and so on.

2. We will install fit hole screener at the SG wood chips crushing machine bottom according to materials moisture and Characteristics. If raw materials were high humidity, then we will send 10-20mm hole screener even no screener at the bottom, if dry, then will install 2-4mm hole screener, which means will outlet smaller than 2mm fine powder.

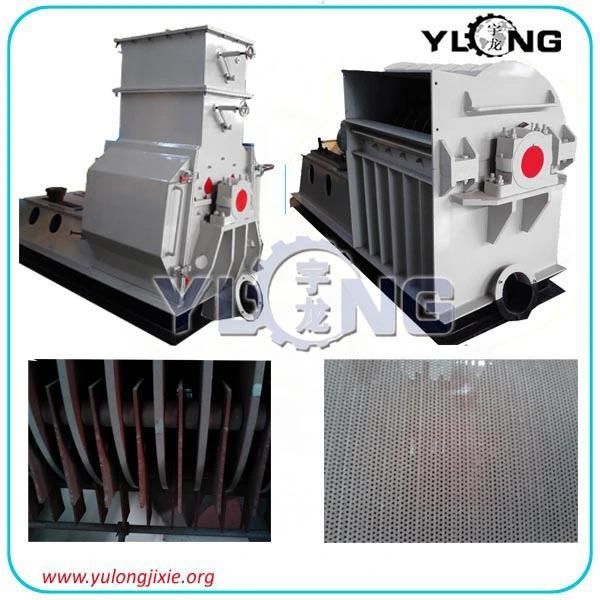

3. The SG wood chips crushing machine spare parts hammers and screener are made by our CNC systems, through high technical heat treatment; Standing out from other suppliers is that we could ensure its high precision and durable working efficiency.

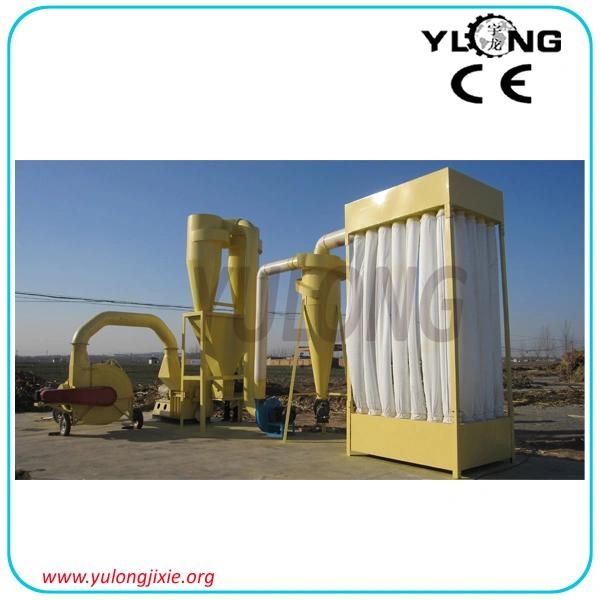

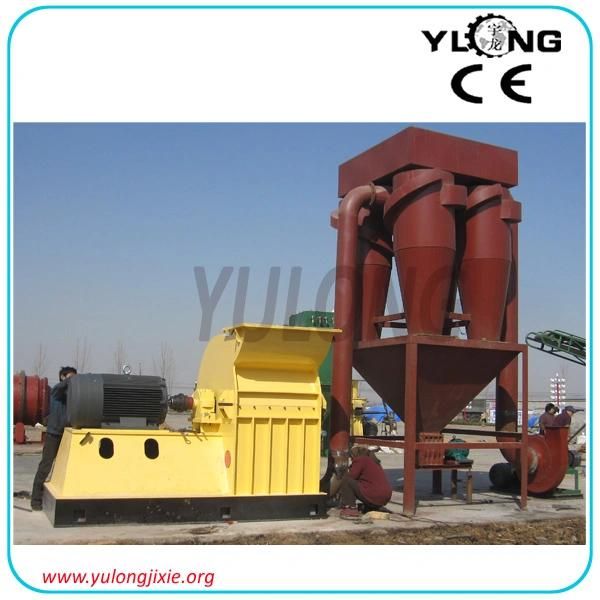

4. The SG wood chips crushing machine works connect with air fan and cyclone, crushed powder will outlet from cyclone bottom, which is very environmental protection and easy to collect powder.

5. The SG wood chips crushing machine is hot selling 5000sets per year, we have big discount for old customer, for any questions, please feel free to ask.





Wood chips crushing machine Technical Parameter:

Model	SG40	SG50	SG65*27	SG65*55	SG65*75	SG65*100
Power	7.5 kw	15 kw	22 kw	37 kw	55 kw	90 kw
Capacity(kg)	500kg	800kg	1500kg	2000kg	3000kg	4000kg
Rotor width	205 mm	275 mm	275 mm	550 mm	750 mm	1000 mm
Rotor speed (r/min)	3400	3100	2950	2950	2950	1490
Screen Size (mm)	675*200	750*270	940*270	540*1020	750*1020	1020*1000
Linear Velocity (m/s)	71	81	92	100	100	101
Quantity of hammer	12	16	24	48	72	90
Overall size(cm)	131*80*107	138*80*101	150*100*110	170*100*110	210*100*110	240*100*110
Weight	270kg	450 kg	1100 kg	1500 kg	1900 kg	2300 kg
Fan Power	include	include	4kw	5.5 kw	11 kw	15 kw
