• Model NO.：ZYD-S10
• Material：304 Stainless Steel or According to Customer Requi
• Power：30kw
• Size of Oil Sump：1000X450X280mm
• Working Oil Capacity：130L
• Transport Package：According to Customer Requirement
• Specification：1092x600x1000mm
• Trademark：TIANSHUN
• Origin：China
• HS Code：84386000
• Production Capacity：2000pieces,Year

Basic Info.

Model NO. ZYD-S10 Material 304 Stainless Steel or According to Customer Requi Power 30kw Size of Oil Sump 1000X450X280mm Working Oil Capacity 130L Transport Package According to Customer Requirement Specification 1092x600x1000mm Trademark TIANSHUN Origin China HS Code 84386000 Production Capacity 2000pieces/Year

Product Description

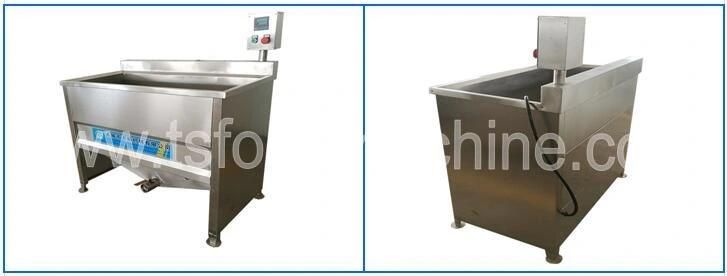

1.-Small temperature auto control fryer and frying machine
(Fast Food Restaurant Used Chicken Frying Machine french fries Fryer)
a.The frying machine is easy operation with electricity as heating source. The fried food not only has brigh color, smell good and taste superb, clean appearance, no black residue.
b.Frying machine is made of high quality stainless steel with excellent workmanship, sturdy and durable
c.It is oil and water mixing frying machine. The upper part is oil and the bottom part is water. Residues dropped into the water and flow out with water.
d.Use intelligent digital controller. The control box is separated with equipment to ensure the safe operation of the controller button, also equipped with large diameter sewage valve
e.The frying machine is equipped with stainless steel grille which can prevent product from falling at the bottom. Fried baskets can be selected according to different fried products.

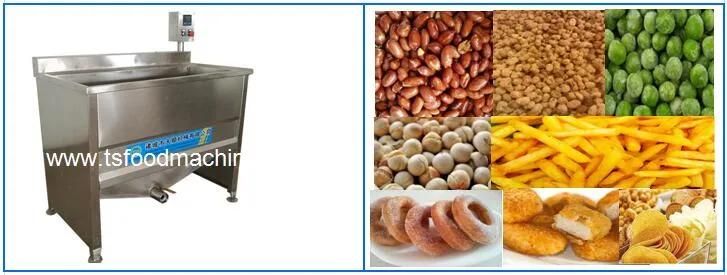

2.-Application of deep fryer:
Meat products, meatballs, chicken feet, duck neck, seafood, fish, shredded shrimp, vegetable products, and so on, fried fries, potato chips, bean products, bean curd.

3.-Technical Parameters:

Model	Power(kw)	Outside size(mm)	Inside size(mm)	Working oil capacity	Control temperature
ZYD-S5	9kw	550x600x1000mm	500x450x280mm	about 70L	0-300degree
ZYD-S10	18kw	1092X600X1000mm	1000x450x280mm	about 130L	0-300degree
ZYD-S15	30kw	1592x600x1000mm	1500x450x280mm	about 200L	0-300degree

4.-Other frying machine:

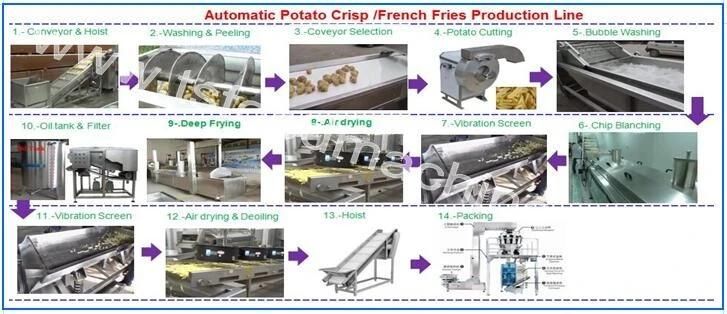

Semi-auto potato chips/ plantain chips/ banana chips macking line
1).-plantain chips/potato chips frying machien is one kind of snacks processed from fresh potato after washing, peeling, slicing, blanching, frying. It remains the special delicious flavor of roasted potato on one respect and has the characters of rich nutrition, delicious.

2).-This potato chips /plantain chips frying production line is the best choice for making potato chips with low investment and power consumption.

3).-This whole line is made up of potato /plantain washing peeling machine, potato cutting machine, blanching machine, frying machine, deoiling machine.

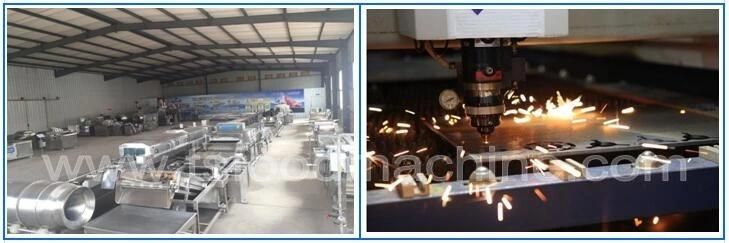

5.-Company&Workshop:
Zhucheng Tianshun Machinery Co.,Ltd, extablished in 2008, manufacturer of full set food processing machineries in frying equipment, washing cleaning equipment, cooking and blanching equipment, cutting equipment, pasteurization, air-dry equipment, drying equipment, package equipment etc
It is widely used in fried food, conditioning food, surimi products, vegetables, fruits, aquatic products, canned food, meat, soy products, snack food, central kitchen planning and herbal processing and other fields.

6.-Pack&Shipment:
