• Model NO.：WS-NLC-5
• Application：Cheese
• Customized：Customized
• Material：SUS304
• Transport Package：Plastic Film Packing & Packaging Cloth Packing
• Specification：φ 1300x1750mm
• Origin：Shanghai, China
• Production Capacity：53sets,Month

Basic Info.

Model NO. WS-NLC-5 Application Cheese Customized Customized Material SUS304 Transport Package Plastic Film Packing & Packaging Cloth Packing Specification φ 1300x1750mm Origin Shanghai, China Production Capacity 53sets/Month

Product Description

Definition of cheese vat: a round vat in which the curd is formed and cut or broken in cheese making.

Model: WS-NLC-500

Structure: three layers stainless steel tank, Overhead Agitator,  Control box/panel, Adjustable foot.
Inner layer by mechanical polishing, tank body and pipe connection with arc transition , no dead angle, easy to clean.

Control box/panel: control the heating temperature&holding time and the start and stop of the mixing motor.

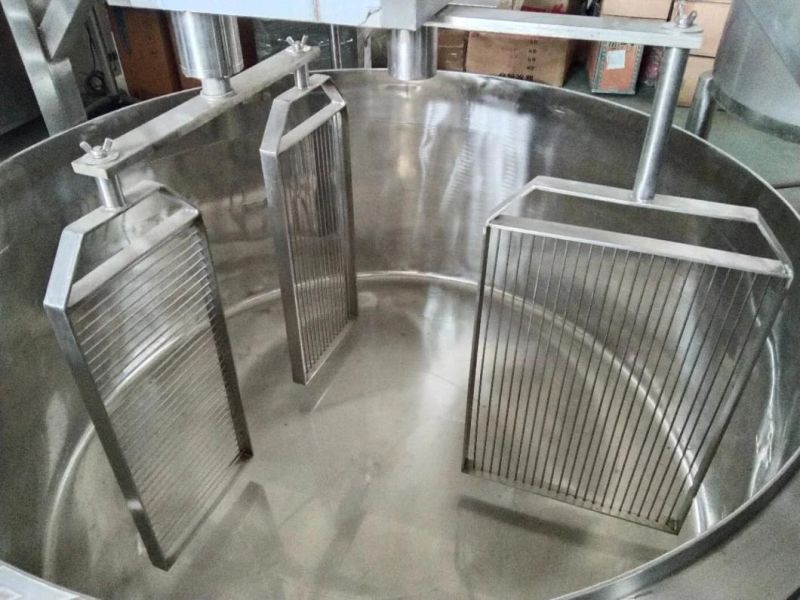

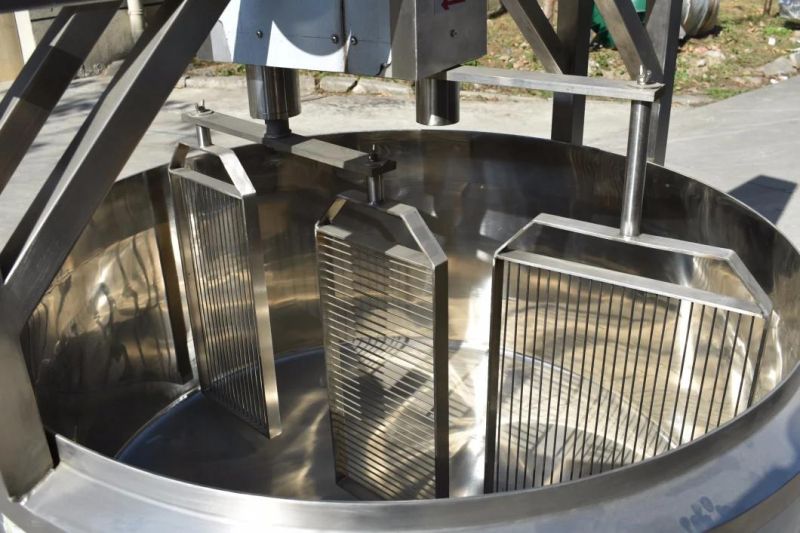

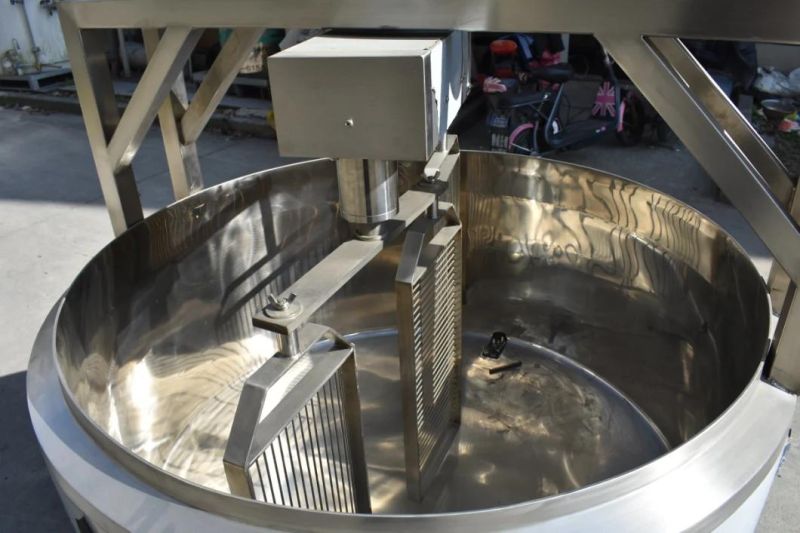

Agitator driven by two motors: one motor for stirring blade Rotary motion, one motor for stirring blade Longitudinal motion(three stirring paddles)

Process in the vat: Milk enters into the vat from the inlet through the filter, they are heated, and fermented to form curd in the vat, then stirring and cutting the curdle into small pieces of uniform size, drain whey from the outlet, the cheese is remained in the vat.

Heating method: Steam heating or Electric heating(2pcs Electric Heating Tube)

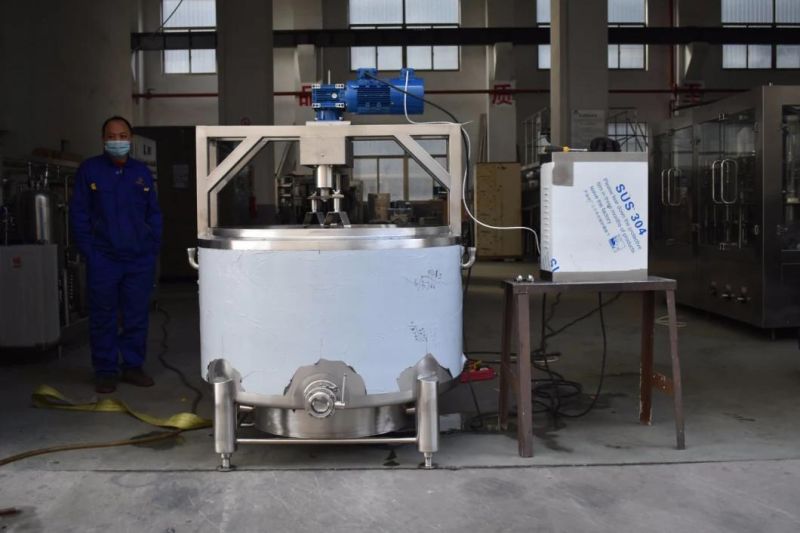

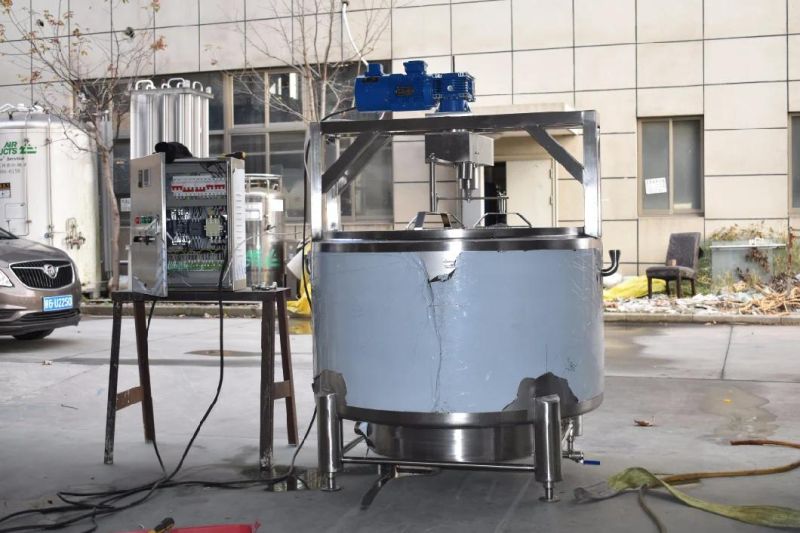

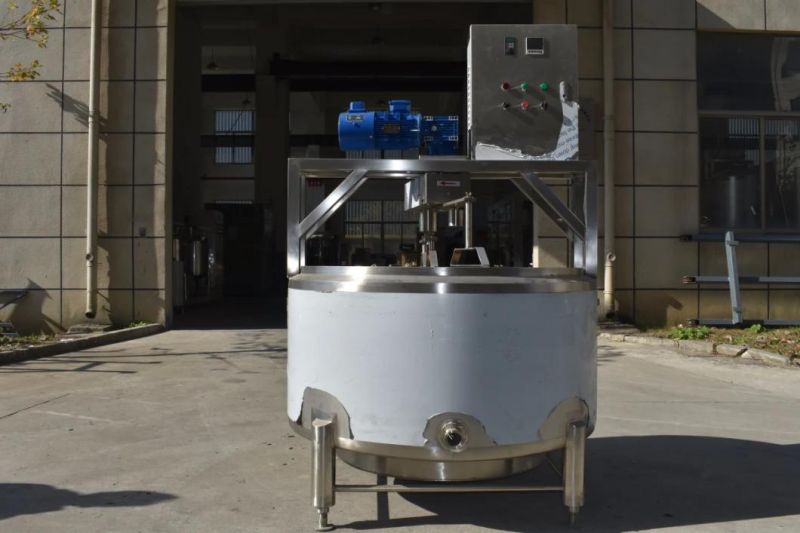

Product picture:

Model	WS-NLC
Volume	100-2000L
Heating method	Steam or Electric heating
Material	SUS304 or SUS316
Type	Round Vat type
Agitator	1-3pcs
Application	Cheese processing
Pressure	Normal Pressure/non-pressurized/ambient pressure
Temperature	Normal atmospheric temperature
Corrosion margin	0mm
Welding joint coefficient	0.85
Stirring speed	36rpm
Insulation material	polyester foam
Insulation thickness	50mm
Default power system	220V/1P/50 Hz  or 380V/3P/50Hz, it can be customized.
Maximum heating temperature	95°C
Vat lid(Optional)

NOTE: Above only for reference, we can make up to 30000L, the style and capacity can be customized. Please contact us with your requirements!
