• Model NO.：SYT-600
• Capacity：0.5t,Day and 1.5t,Day
• Material：304 Stainless Steel
• Transport Package：Wooden Case
• Specification：FM400, FM600
• Trademark：SANYUANTANG
• Origin：China
• HS Code：8419899090
• Production Capacity：0.5-1.5t,H

Model

FM-600

FM-400

Production capacity

1.2-1.5t/8h

0.4-0.5t/8h

Machine dimension

1750*600*1660

1600*500*1555

Tank diameter

600mm

400mm

Tank height

600mm

600mm

The overall volume

140L

70L

Effective volume

120L

60L

Preheat tank power

6KW

Vacuum concentration tank power

9KW

A single heating tube (preheating tank is 6 kw ,and vacuum concentrator is 9 kw)

Vacuum pump SK - 0.8     voltage 380 v     power 1.5 KW

: preheating tank motor slowdown micromotor voltage 220v  power 180w ratio 25   60r/min

Production capacity:  0.5 to 1.5 t per day

Concentrated temperature: 55 ºC or less

Vacuum: 0.092 Mpa or less

The maximum total power: 16Kw

Introduction of honey processing equipment:
Currently, honey processing main used mechanical filters and low-temperature vacuum concentrated to remove impurities and excess water, Get a higher degree of vacuum systems and the reasonable structure of the low temperature evaporation device is the key to the processing technology of bee products. This equipment has fully realized honey enrichment process special requirements, and to meet the aspirations of bee products processing enterprises.

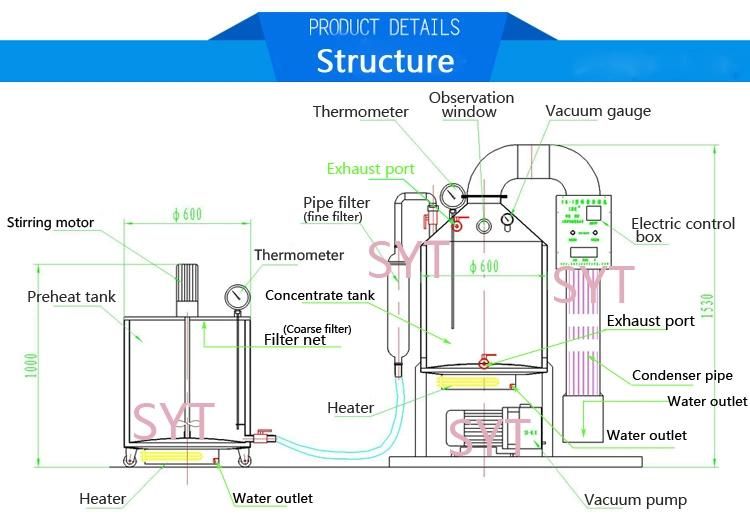

Process of honey processing equipment:
The original honey → coarse filtration → Agitation, preheating → sterilization, melt crystallization nucleation → Fine filtration → low temperature, concentrated → filling

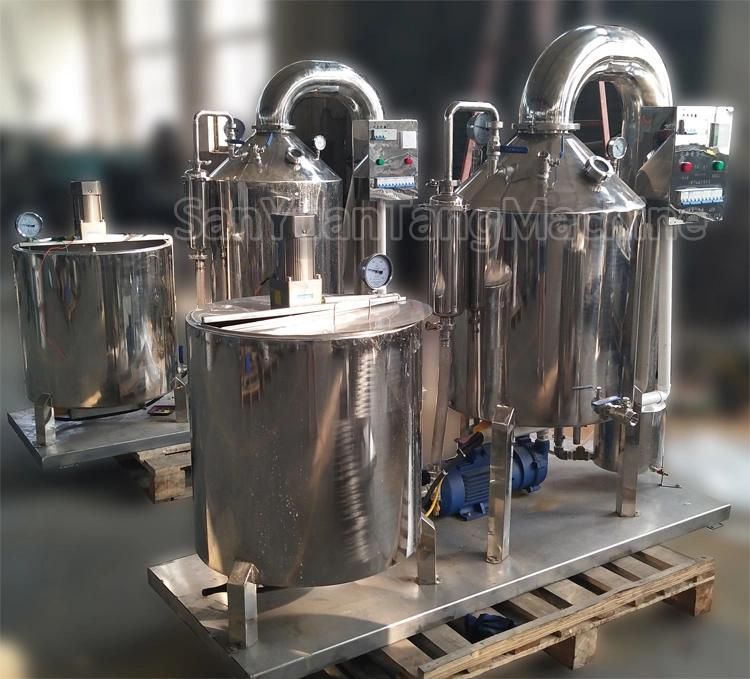

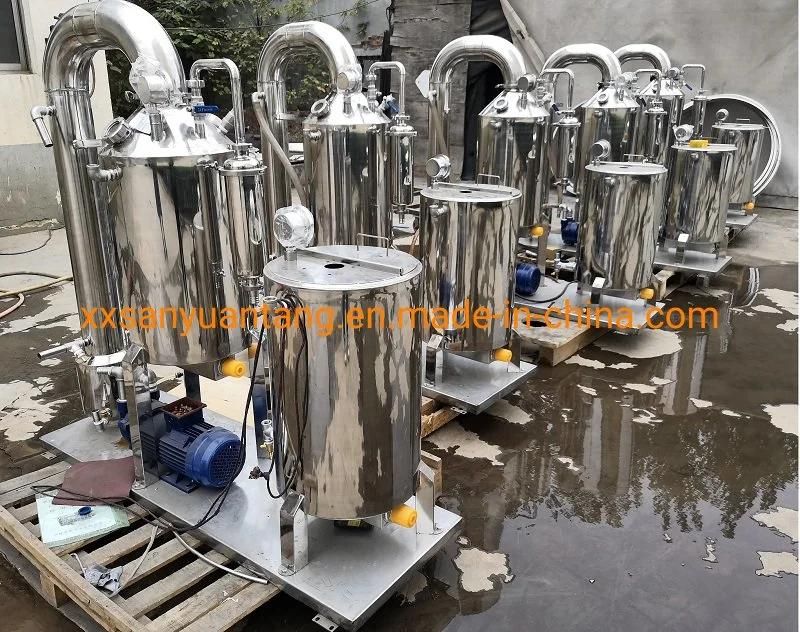

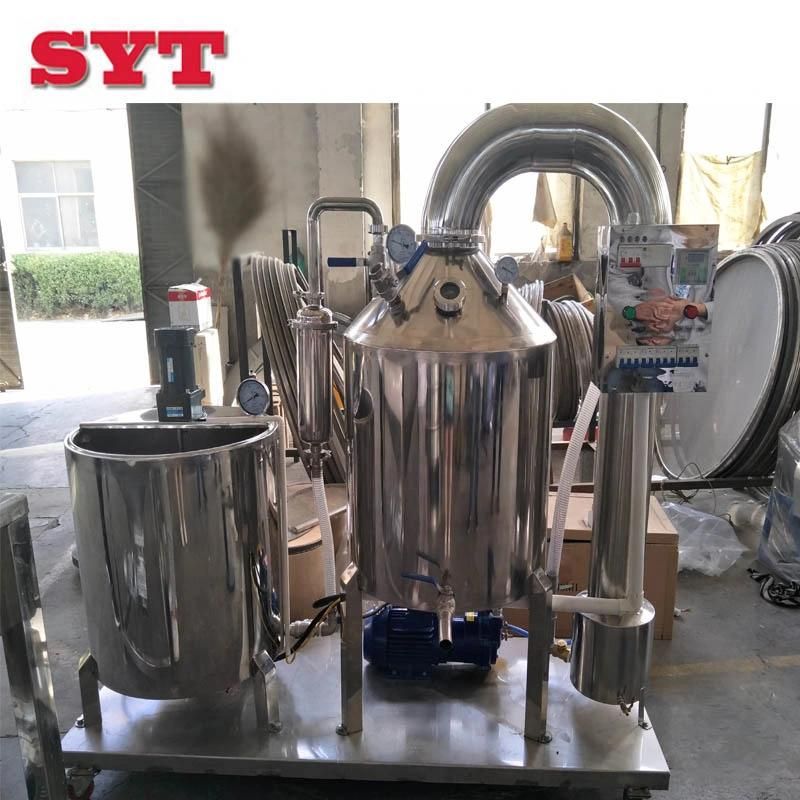

Photos of honey water reduce machine , honey processing evaporator machine
