• Model NO.：DPS5050 DPS5076 DPS50100
• Condition：New
• Customized：Customized
• Line：Cassava Flour Processing Line
• Useful Life：20 Years
• Advantage：Large Capacity
• Energy：Electric
• Service：Good Sale Service
• Installation：Yes
• Maintain：Yes
• Price：Negotiable
• Working Type：Continuous Work
• Warranty：12 Months
• Dimension：1530*1400*765 mm
• Capacity：30 T,H
• Weight：1100 Kg
• Transport Package：Wooden Case
• Specification：Stainless Steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：10 Sets,Month

Basic Info.

Model NO. DPS5050 DPS5076 DPS50100 Condition New Customized Customized Line Cassava Flour Processing Line Useful Life 20 Years Advantage Large Capacity Energy Electric Service Good Sale Service Installation Yes Maintain Yes Price Negotiable Working Type Continuous Work Warranty 12 Months Dimension 1530*1400*765 mm Capacity 30 T/H Weight 1100 Kg Transport Package Wooden Case Specification Stainless Steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 10 Sets/Month

Product Description

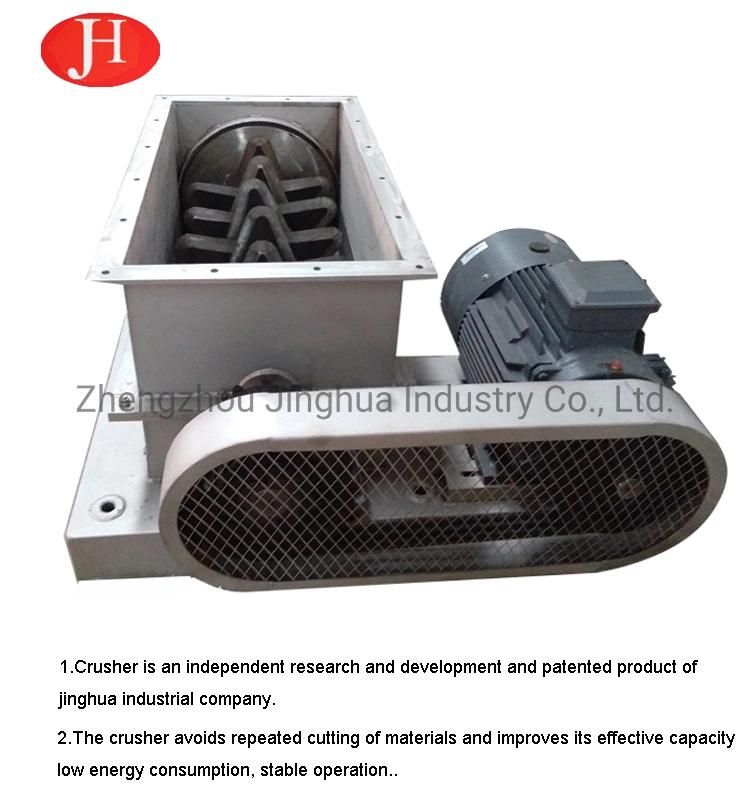

stainless steel automatic crusher cleaned cassava cutting grinder making machineDescription of cassava flour cutting machine
Zhengzhou Jinghua Industry Crusher is newly designed with compact structure, easy disassembly and low maintenance cost.  The machine is widely used for cracking big materials. The raw material is usually fresh cassava tube, fresh sweet potato and after crushing you can get the finished product with a 20-30mm size. It is a precrushing.

Features of  crusher
1. Fully stainless steel to be sure there is no corrosion
2. We have as long as 15 years' experience in development and research of starch processing subject.
3. This machine has features of low energy consumption, high capacity, fine particles and easy installation, easy maintenance.
4. It consists of cover, case body, machine seat, main shaft and so on.
5. It is mainly used for crashing cassava, sweet potato etc.

Main technical parameters

Model	Diameter of rotor (mm)	Speed of rotor (r/min)	Blade Number	Rotor length (mm)	Power (Kw)	Dimension (mm)	Weight (Kg)	Capacity (t/h)
DPS5050	Φ480	1200	9	550	7.5/11	1030x1250x665	650	10-15
DPS5076	Φ480	1200	11	760	11/15	1250x1300x600	750	15-30
DPS50100	Φ480	1200	15	1000	18.5/22	1530x1250x665	900	30-50
DPS60100	Φ580	1200	15	1000	30/37	1530x1400x765	1100	60-80

The working principle of crusher

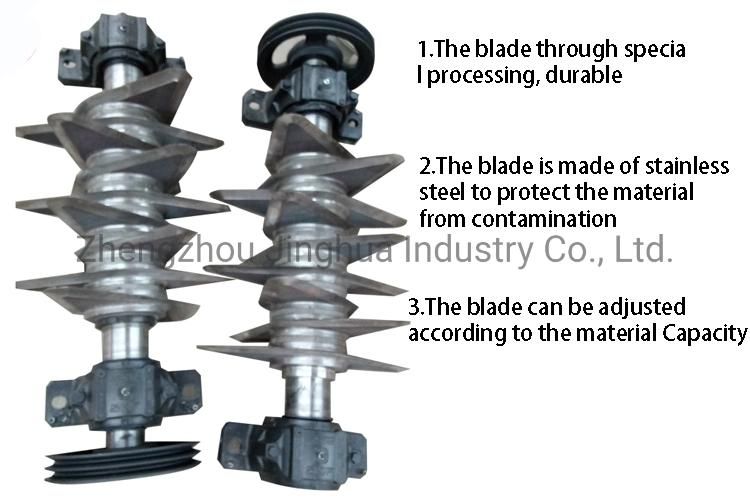

The main working part of the crusher is a rotary table with a blade. The rotary table is composed of a spindle and a cutter table. The motor drives the rotary table to rotate at a medium speed in the chip cavity.The material enters from the upper feeding port, is sheared by the rotary blade on the upper part of the rotary knife, and is discharged at the lower part of the rotary table.




Our Service
Pre-sale service
1.Accept customer consultation and customize products according to customer requirements.
2.Provide customers with product process, equipment parameters and processes, and train personnel according to customer requirements.

Sale service
1.The company sent technical personnel to the scen of the on-the -spot guidance equipment installation,debugging and training operators.
2.If there is any problem during the installation, please contact the responsible person in time. We will solve the problem in time to ensure the installation progress.

After-sale service
1.Provide telephone and video support. If the customer has any problems or abnormal devices in use, you can contact us by phone. We will help the customer solve the problems by phone or video.
2.If the phone or video doesn't work, the company will send technicians to the scene to fix the problem.
3.Products purchased in our company, we provide one-year warranty and lifelong maintenance service.

Packing & Shipping
Packing : Customize the wooden case according to the size of the product.
Delivery: 14days after receiving pre-payment (on time according to contract strictly).



Why Choose Us
Jinghua company is a specialized engineering technology company specializing in various starch engineering design, equipment manufacturing, engineering installation and debugging, technical personnel training and other work. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas. Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor certificate more than 20.The chairman of the board is professor wang yanbo, who is mainly engaged in theoretical research on the transformation and utilization of grain resources, teaching, scientific research and engineering design of starch and its deep processing direction, and research and development of modern equipment. He has published 7 scientific works, 6 national standards and 30 academic papers.

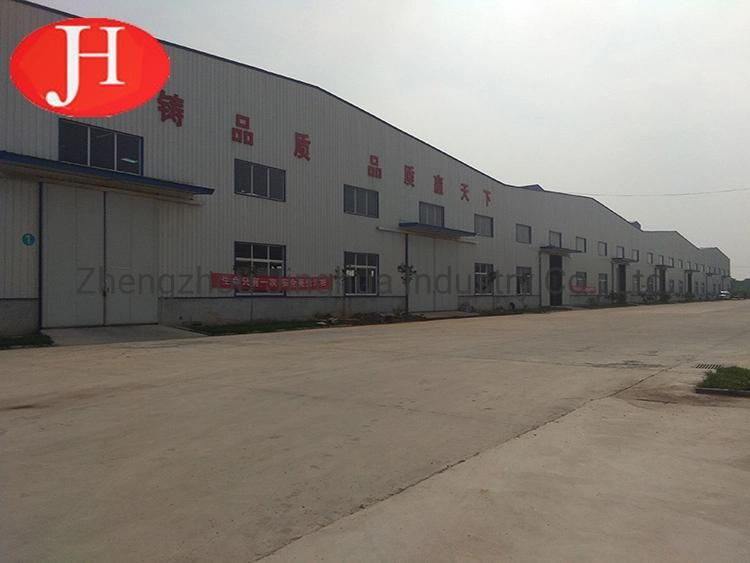

Our Factory

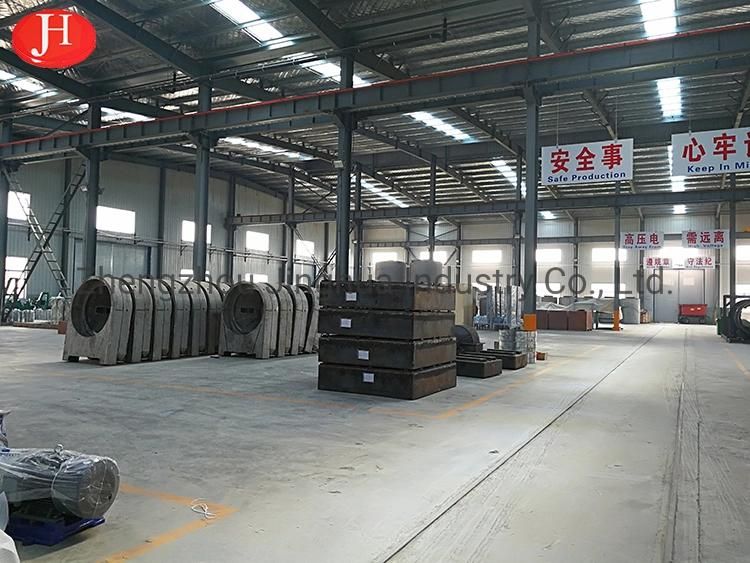

Our Workshop

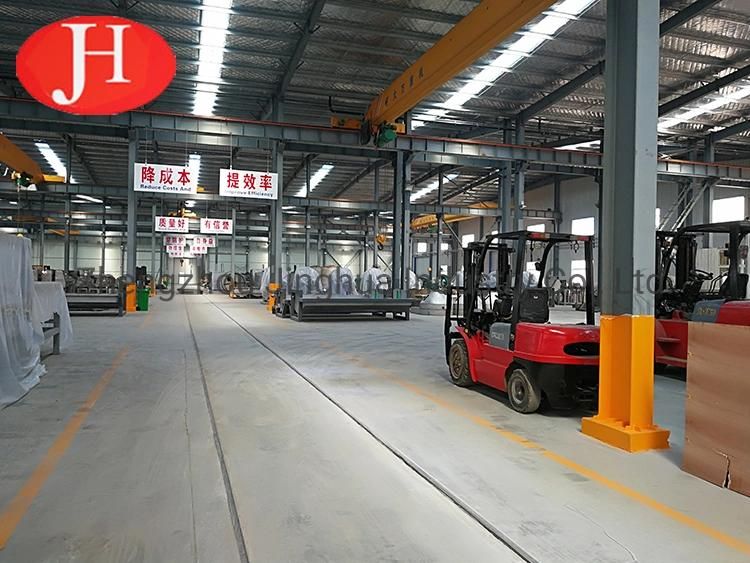

Our Workshop


Our Certificate


FAQ
Q1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.

Q2.What is your main business?
A: ZZJH is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line

Q3. Can you customize the products according to our requirements
A: yes, we have A professional technical department that can customize the products according to your requirements

Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;

Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.

Zhengzhou Jinghua Industry Co.,Ltd.
Add:Guanggu Road, Xingyang City,Henan Province,China
