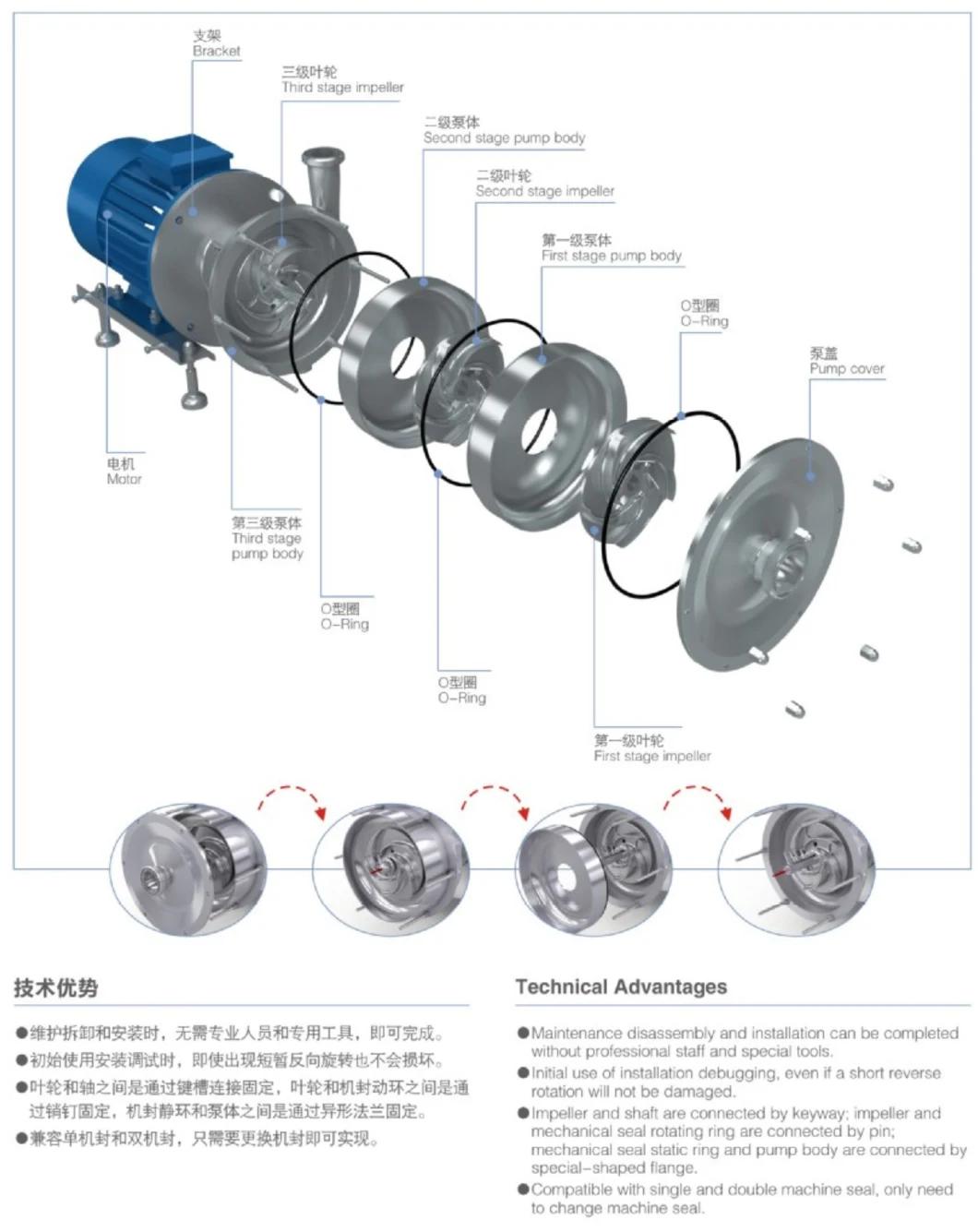

Multi-Stage Impeller Centrifugal Pump with Control Box

Donjoy Technology Co., Ltd.
  • Condition：Used
  • Customized：Non-Customized
  • Voltage：380V
  • Composition：CIP Cleaning Machine
  • Processing Material：Water
  • Process：Mild Processing

Base Info

  • Motor：ABB Motor

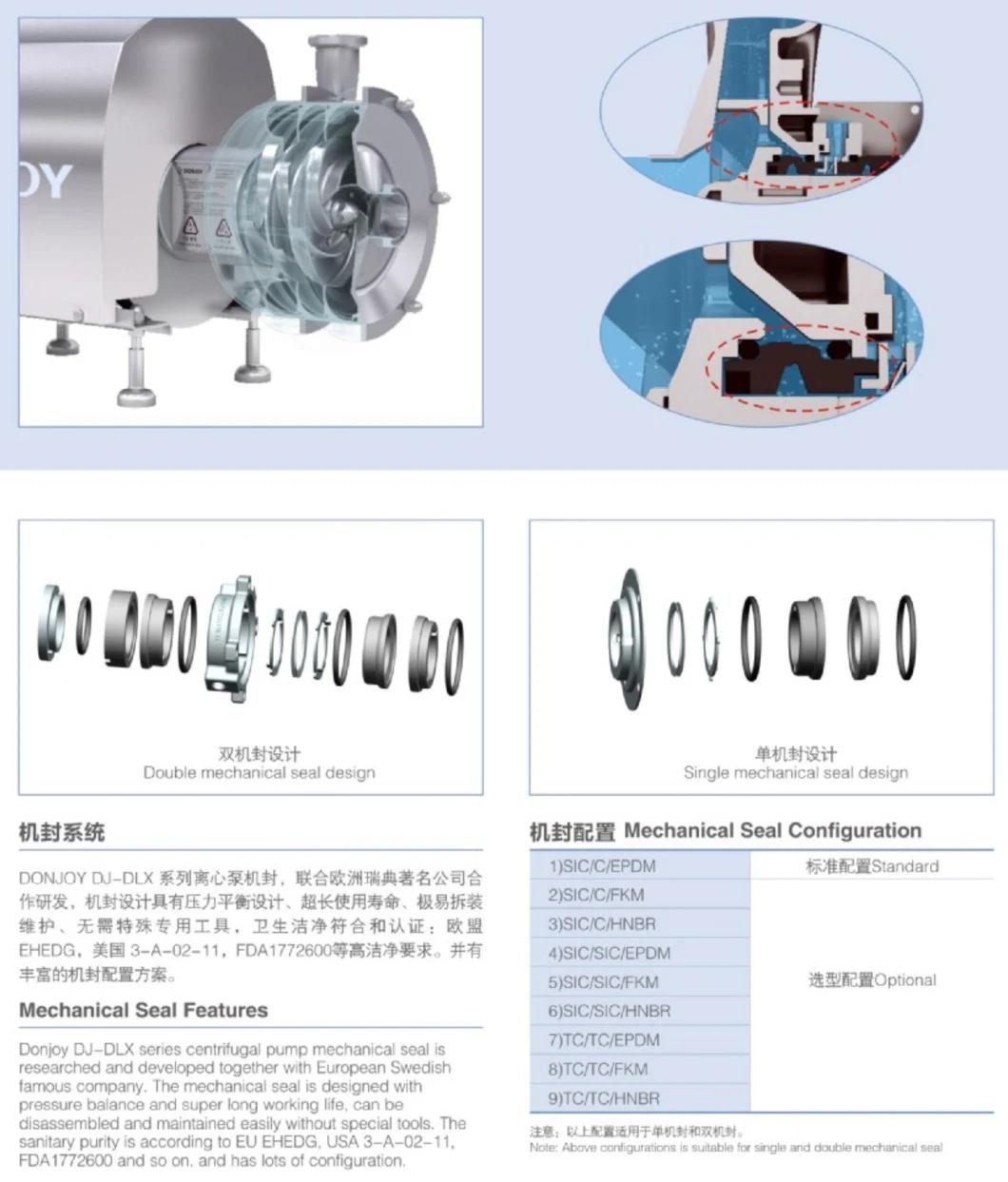

  • Mechanical Seal：Sic,C,FKM, Sic,Sic,FKM, Tc,Tc,FKM
  • Structure：Impeller Pump
  • Temperature：-10~140 Degree Centigrade
  • Power：1.5~45kw
  • Material：SS304,316L

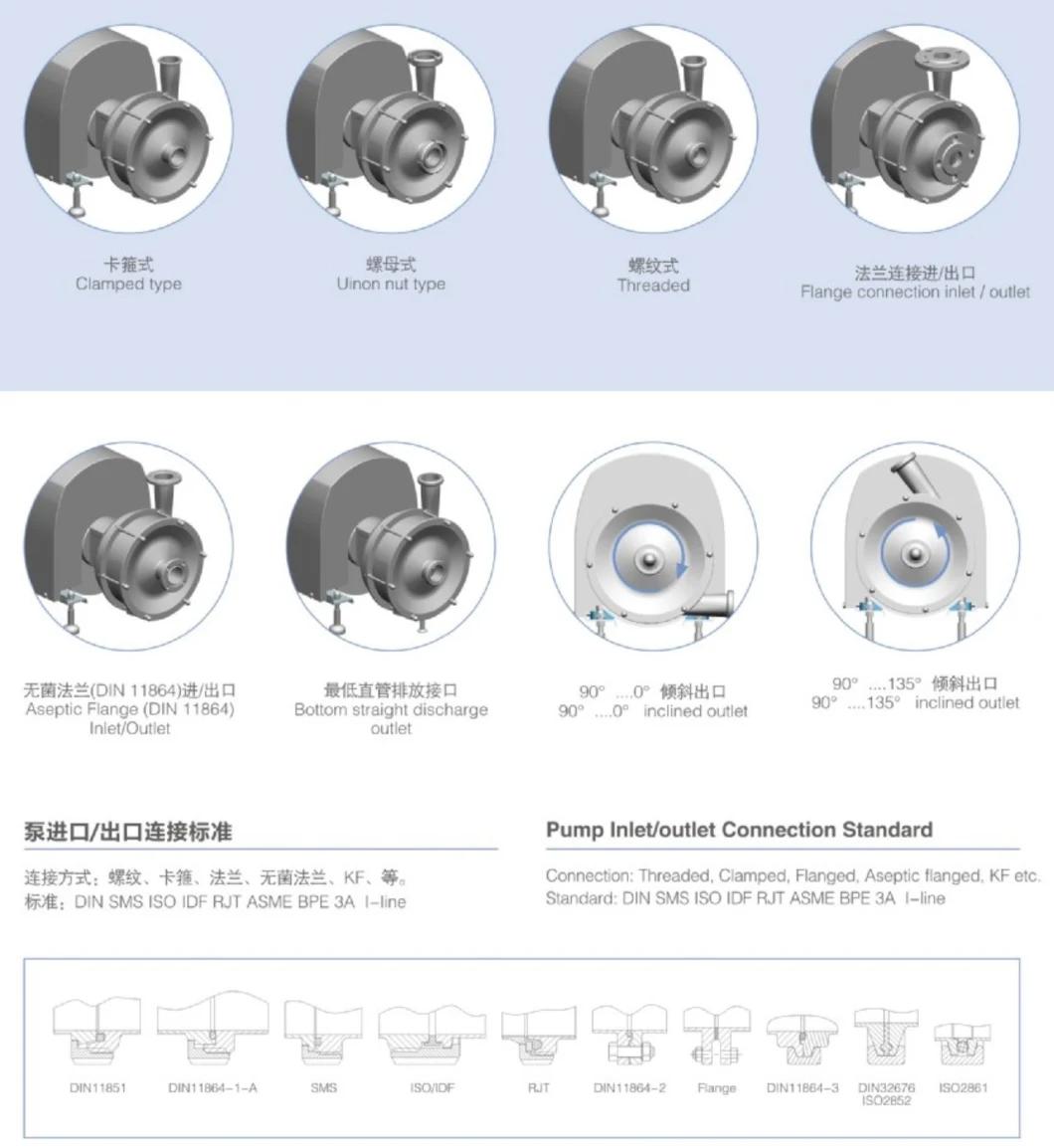

  • Connection Way：Clamped, Male and Flanged
  • Transport Package：Plywood Case

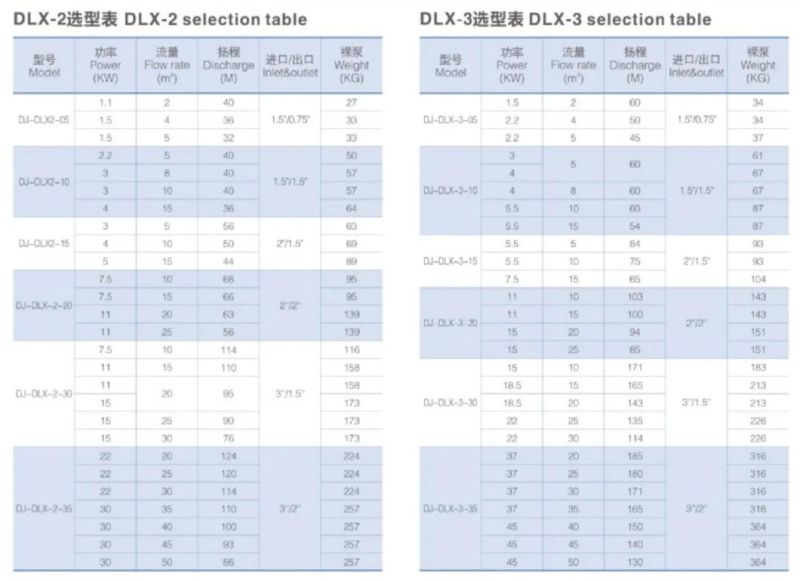

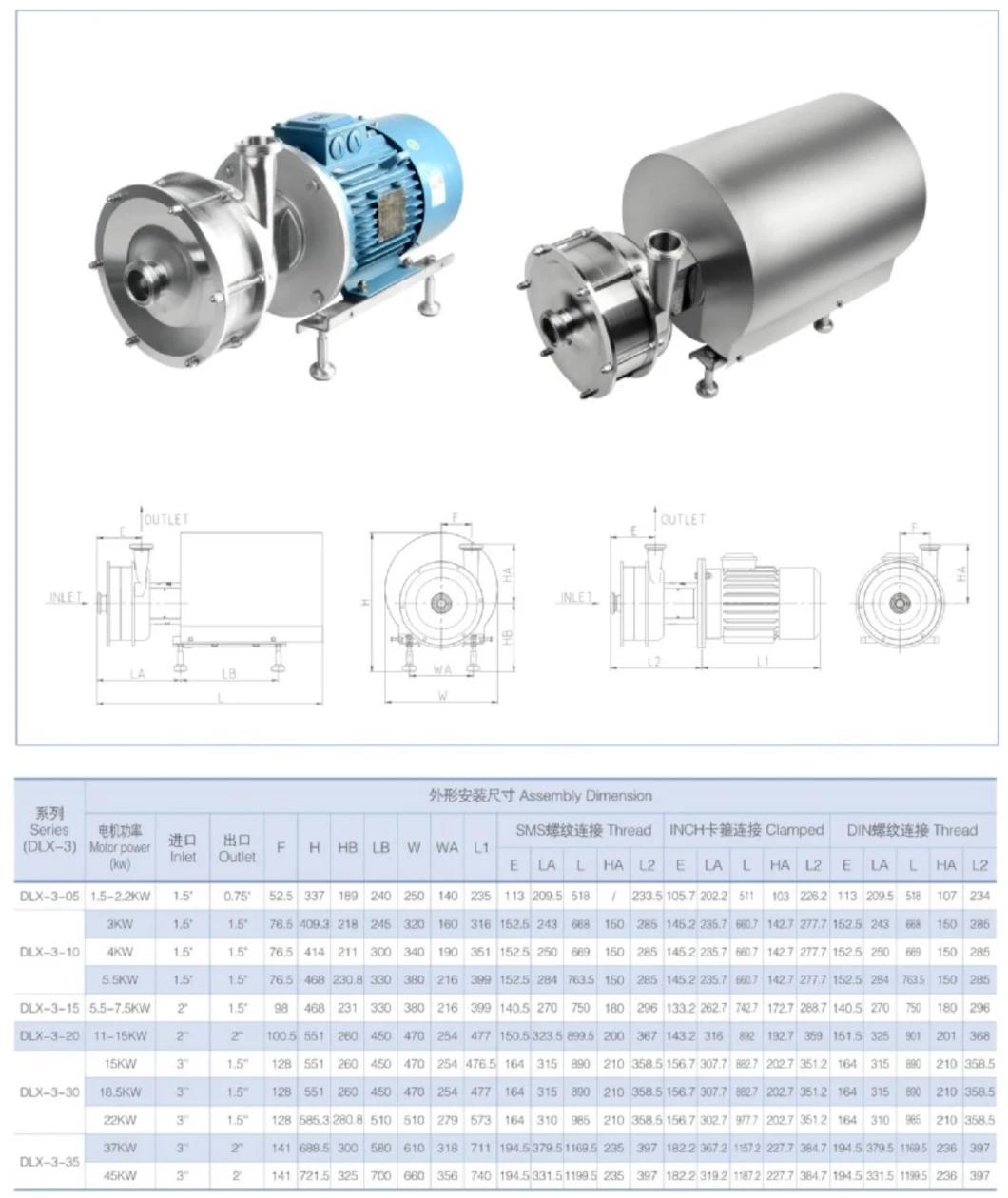

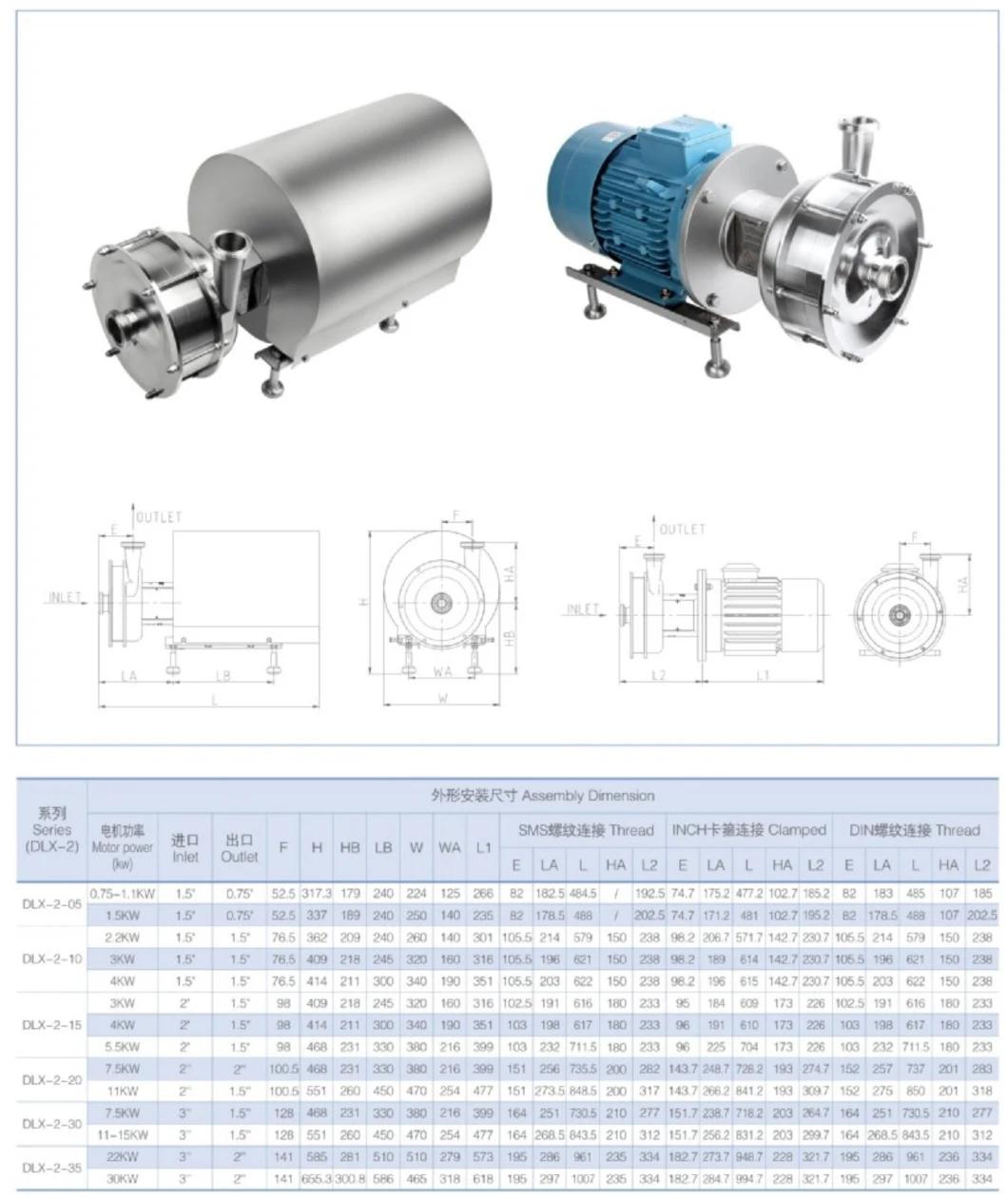

  • Specification：DLX-5~DLX-35
  • Trademark：DONJOY & OEM
  • Origin：Wenzhou, China
  • HS Code：8413709990
  • Production Capacity：3000PCS,Year

Description

Product Name:Multi-stage centrifugal pumpValve Body Material:SS304/SS316L Seal Material:EPDM, FPM(Viton)Max. Flow:50 m³/HMax. Speed:1450R/MIN, 2900R/MINMax. Head:180H(M)Max. Working Temperature:-10~140 °CMechanical seal:SIC/C/FKM (Standard), SIC/SIC/FKM, TC/TC/FKMMotor power:1.5KW~45KWVoltage:110V, 220V, 380V or custom-madeMotor:ABB MotorFrequency:50HZ, 60HZConnection way:Clamped, male and flanged connectionOperation:Electric motorCertification:3A, CE, FDAApplication scope: Dairy, food, beverage, pharmacy, cosmetic, beer etc.Motor selection:As per your flow, lift(head)Structure:Trolley is optional
