• Model NO.：KQ series
• Product Material：Stainless Steel 304,316
• Capacity：500L,H--10000L,H
• Pressure：250bar to 600bar
• Homogenizer Life Time：More Than 10years
• Warranty：in One Year
• Homogenizer Spare Parts：Provided
• Packing：Plywood Box
• Homogenizer Electricity：220V,380V,415V,440V
• Certificated：Ce
• Deliviery：10 Days
• Transport Package：Standard Wooden Box
• Specification：customized
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. KQ series Product Material Stainless Steel 304/316 Capacity 500L/H--10000L/H Pressure 250bar to 600bar Homogenizer Life Time More Than 10years Warranty in One Year Homogenizer Spare Parts Provided Packing Plywood Box Homogenizer Electricity 220V,380V,415V,440V Certificated Ce Deliviery 10 Days Transport Package Standard Wooden Box Specification customized Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

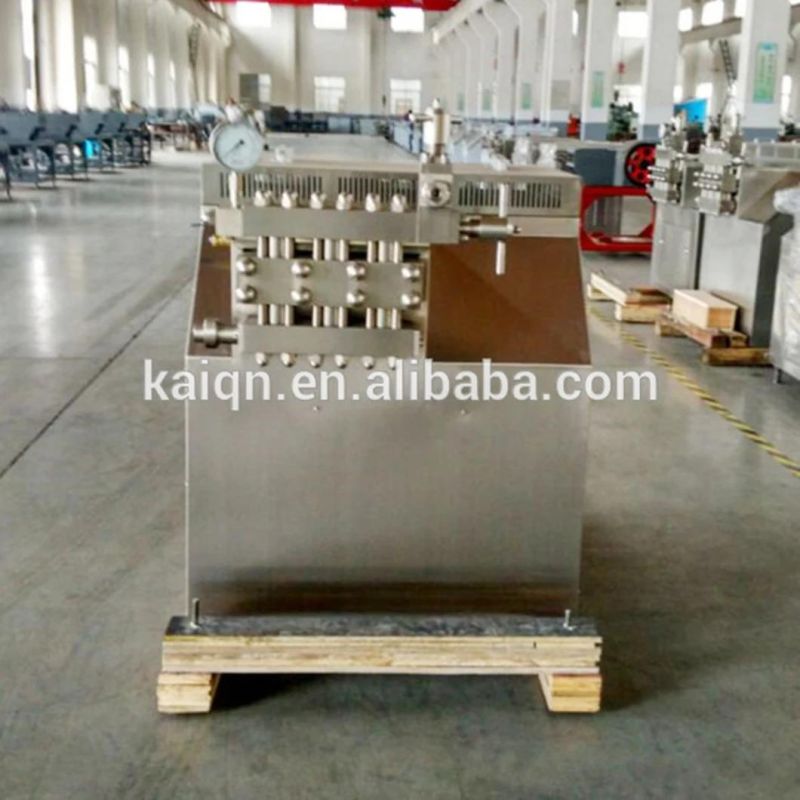

Ice Cream Homogenizer Milk Homogenizer Beverage Homogenizer

Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

Milk High Pressure Homogenizer, You Can Buy Various High QualityMilk High Pressure Homogenizer Products from us, the 250bar milk homogenizer FROM US
CE CERTIFICATED HOMOGENIZER FOR MILK, JUICE, DAIRY, ICECREAM, SOYBEAN MILK, HONEY
Soybean milk homogenizer, 40MPA homogenizer
Tea drinks homogenizer, juice homogenizer
Homogenizer pumps
High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life .



Series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )
Food Industry Homogenizer
Ice cream homogenizer milk homogenizer beverage homogenizer types of homogenzier
