• Model NO.：5TY -85
• Condition：New
• Customized：Non-Customized
• Product Name：Corn Thresher Corn Sheller Threshing Machine
• Model No：5ty -85A
• Harvest Method：Vibration Fall
• Transmission：Hard Shaft
• Functions：Corn Thresher Machine
• Breakage Rate：1.5%
• Net Weight：35kg
• Power Source：Gasoline
• Drive Type：Gear Drive
• Portable Harvester Type：Backpack Type
• Transport Package：Wooden Case Paper Package Container
• Specification：83*30*25cm
• Trademark：ACME
• Origin：China
• HS Code：8701901101
• Production Capacity：50000unit,Year

Basic Info.

Model NO. 5TY -85 Condition New Customized Non-Customized Product Name Corn Thresher Corn Sheller Threshing Machine Model No 5ty -85A Harvest Method Vibration Fall Transmission Hard Shaft Functions Corn Thresher Machine Breakage Rate 1.5% Net Weight 35kg Power Source Gasoline Drive Type Gear Drive Portable Harvester Type Backpack Type Transport Package Wooden Case Paper Package Container Specification 83*30*25cm Trademark ACME Origin China HS Code 8701901101 Production Capacity 50000unit/Year

Product Description

Factory export high efficiency household and farm use dry corn thresher

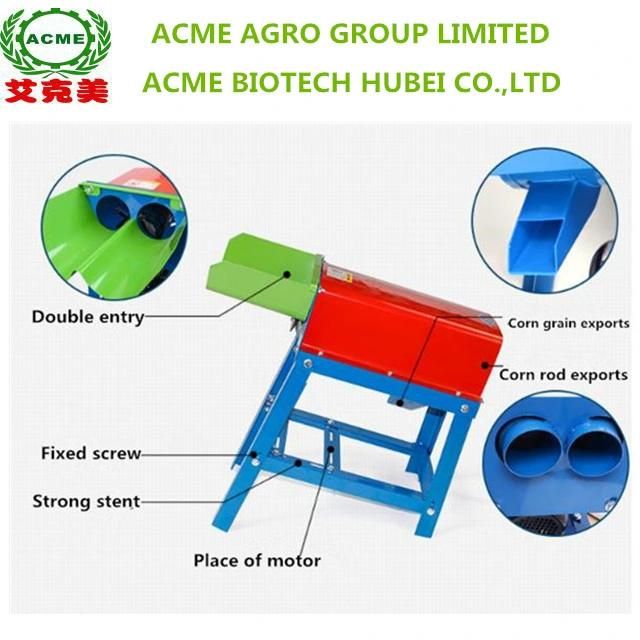

product picture

For more details, please contact us on the right

 Main Technical Parameters

Machine type	Corn stripper and sheller (two feeding hoppers)
Stripper rate	>95%
Sheller rate	>98%
Breaking rate	<2%
Power	3kw
Capacity	1500-2000 kg/h
Weight	85 kg without motor
Machine size	1200*500*600mm
MOQ	5 sets

Introduction:
Working Principle of corn husker thresher maize sheller
When husking, the machine tears open the corn peel under the action of the rubber roll rotary

movement to husk the corn, then discharges the corn cob from the outlet, and meanwhile blows out

the impurities from the fan outlet. It can complete the husking work commendably, at the same time,

the machine is instead of manual operation, highly improving the working efficiency.

When threshing, the corns enter from the feed port, then get hit under the action of high speed rotating

rotor and roller, corn seeds are separated by the sieve pore, cobs are discharged from the rear part of the machine,

corn silk powders and peels are discharged from the air outlet. On the front and bottom of the feed port,

there is a baffle in case some splash seeds hurt persons.

For more details, please contact us on the right


Introduction of corn peeler and thresher :

1. This kind of corn husker and sheller ia mainly used to thresh corn seed from corn cob, it is    capable of process all size corn.
2. It is widely used in small farm, small feed processiing factory, livestock breeding and farm fa    ctory.

3. Two feeding hopper inprove the efficiency greatly, and corn cob is complete after shelling pro    cess.

4. Easy to operate, low energy consumption, high efficiency, and great price.
