500L Stainless Steel Tank Craft Beer Brewing Machine Alcohol Production Line
Shandong Zunhuang Brewing Equipment Co., Ltd.- Condition:New
- Customized:Customized
- Voltage:Customized
- Composition:Beer
- Processing Material:SS304
- Process:Ferment
Base Info
- Model NO.:ZH-500L
- Heating Method:Electricity Steam Fire
- Application:Beer Brewing
- Thickness:2-3mm , Inside:3.0mm Outside:2mm
- Control System:Semi-Automatic
- Capacity:500L,Batch
- Insulation:80mm Polyurethane
- Inner Surface:Pickled and Passivated
- Material:SUS304,SUS316,Red Copper
- Transport Package:Steel Frame or Wooden Case
- Specification:as customer request
- Trademark:Zunhuang
- Origin:China
- Production Capacity:500piece
Description
Basic Info.
Model NO. ZH-500L Heating Method Electricity Steam Fire Application Beer Brewing Thickness 2-3mm / Inside:3.0mm Outside:2mm Control System Semi-Automatic Capacity 500L/Batch Insulation 80mm Polyurethane Inner Surface Pickled and Passivated Material SUS304/SUS316/Red Copper Transport Package Steel Frame or Wooden Case Specification as customer request Trademark Zunhuang Origin China Production Capacity 500pieceProduct Description

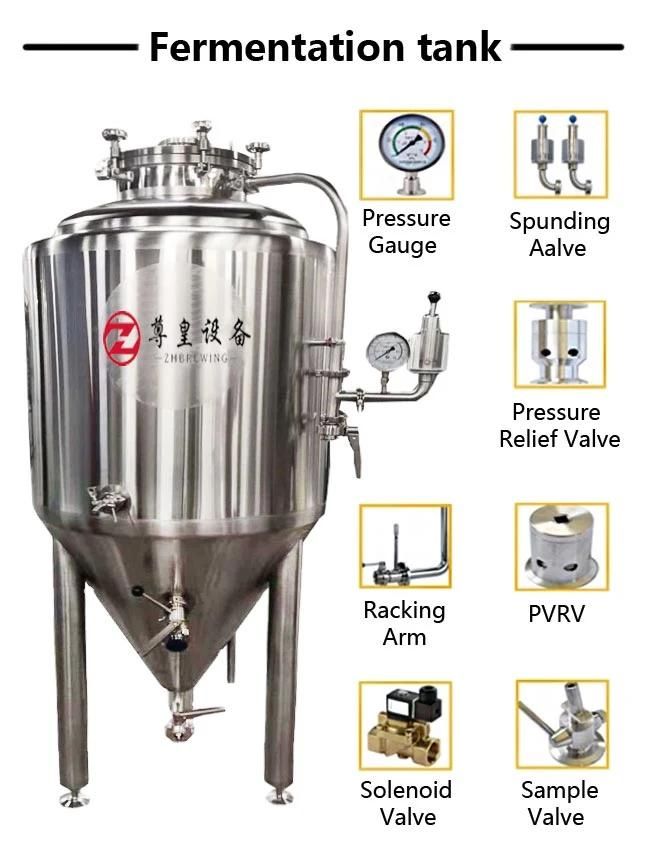

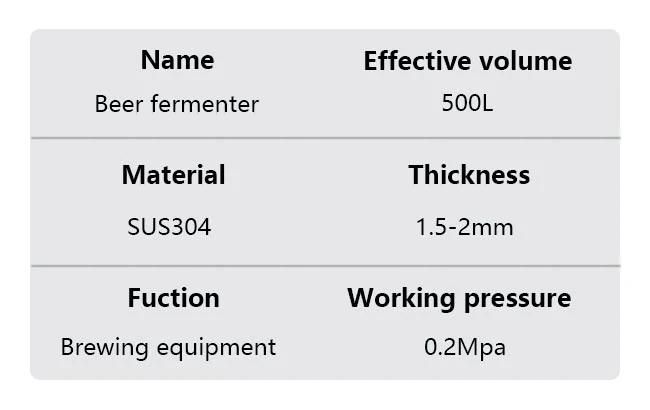

specifications:50L 100L 200L 300L 400L 500L sus 304 Beer home brewing equipment for brewhouse1. Effective volume: According to your requiment2. Cylinder tank; Inside surface: SUS304, Thickness:2.5mm,Outside surface: polishing stainless steel,Thickness:1.5mm,Polishing coefficient: 0.4µm3. Thermal insulation material: Polyurethane (PU) foam,Insulation thickness: 80MM.4. Working pressure: 0.2Mpa;5. Bottom design: 60degree cone for easy to exist yeast. Polishing coefficient: 0.4µm6. Cooling method: Dimple cooling jacket(Cone and cylinder 2 zone cooling); Or screw type belt7. Cleaning system: Fixed-round rotary cleaning ball.8. Temperature measurement method: PT100 temperature probe9. Control system: PT100, temperature control;10. Manhole:Top manhole on the cylinder,with hop port.11. With: CIP arm with spray ball, pressure gauge, mechanical pressure regulating valve, hops adding deviceand CO2 adding device,sampling valve, breath valve, Ice water solenoid valve, thermometer, etc.
