Mmjx160X 6 Rotary Rice Grading Machine Rice Sifter Rice Grader Machine Clj
HUNAN CHENZHOU GRAIN & OIL MACHINERY CO., LTD.- After-sales Service：Online Service
- Warranty：1 Year
- Type：Rice Mill
- Application：All
- Voltage：380V
- Appearance：Horizontal
Base Info
- Press Materials：Rice
- Condition：New
- Customized：Customized
- Weight：1560kg
- Power：1.5kw
- Capacity：5-6.5 T,H
- Air Volume：800m3,H
- Transport Package：Wooden Case
- Specification：2140X2240X1850 mm
- Trademark：CLJ
- Origin：China
- HS Code：84378000
- Production Capacity：3000units,Year
Description

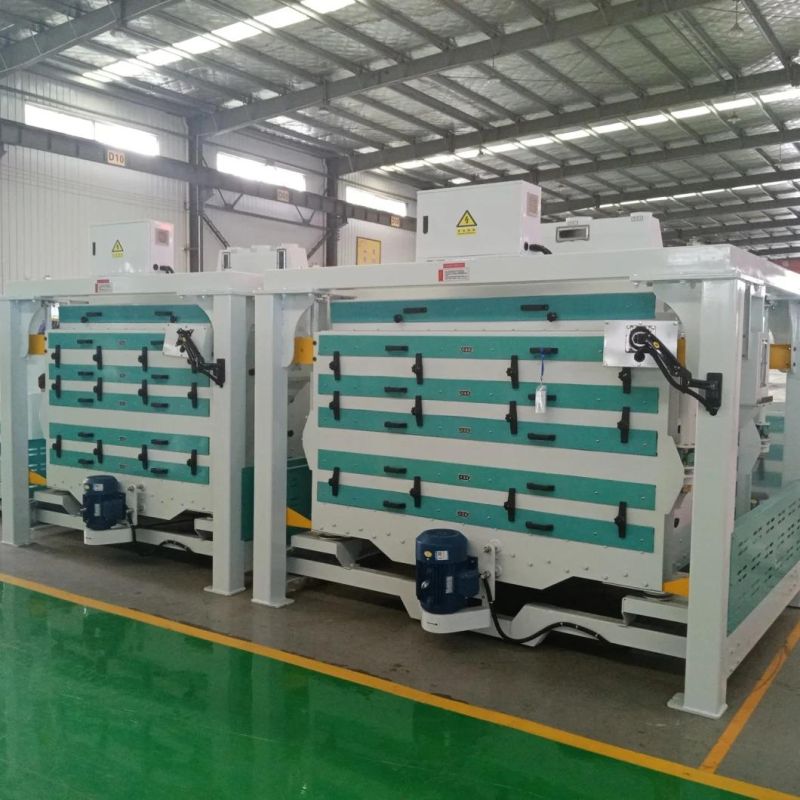

Description :MMJX series Multi Rotary Rice Grader adopts cardan joint connecting rack and suspender and non-eccentricity transmission device. Special sieve parameter increases grading area, improve the fineness of products, boasting of advanced technical and mechanical performance.
Features :
1.Adopt turning around the center of the screen movement type, the moving speed and the rotary turning amplitude are adjustable.
2.Grading layer by layer to ensure less head rice in big broken rice and none in small broken rice.
3.Airtight sieve body equipped with suction device, less dust.
4. Using u-joint to hang the main body
5.Equipped with additional screen to separate middle-sized chaff.

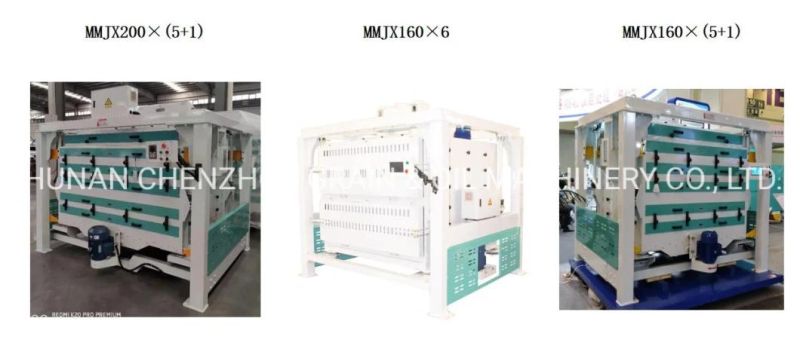

| Model number Parameter | MMJX125×4 | MMJX160×4 | MMJX160×4+1 | MMJX160×5+1 | MMJX200×(5+1) |
| output(t/h) | 3.5~4.5 | 5~6.5 | 5-6.5 | 8-10 | 10~13 |
| power(kw) | 1.5 | 1.5 | 1.5 | 2.2 | 3 |
| rotate speed(r/min) | 160 | 160 | 160-200 | 160-200 | Controlled by frequency converter |
| Slant angle(°) | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 |
| Air volume(m/min) | 16 | 10×2 | 10×2 | 16 | 20×2 |
| weight(kg) | 1350 | 1500 | 1650 | 1900 | 2600 |
| Broken in fine rice(%) | <5 | <5 | <5 | <5 | <5 |
| Fine in big broken(%) | <5 | <5 | <5 | <5 | <5 |
| Fine in small broken(%) | 0 | 0 | 0 | 0 | 0 |
