• Model NO.：ZH-500L
• Application：Brewery
• Function：Brewing Beer Brewing Equipment
• Material：Stainless Steel 304,316
• Heating Method：Electric Heating Steam Heating
• Control System：PLC
• Thickness：Inner 3mm External 2mm
• Polishing：0.4~0.6um
• Heat Insulation：thickness 80mm
• Cooling Jacket：Dimple Cooling Jackt
• Transport Package：Steel Frame and Wooden Case
• Specification：as customer request
• Trademark：Zunhuang
• Origin：China
• Production Capacity：500piece

Basic Info.

Model NO. ZH-500L Application Brewery Function Brewing Beer Brewing Equipment Material Stainless Steel 304/316 Heating Method Electric Heating Steam Heating Control System PLC Thickness Inner 3mm External 2mm Polishing 0.4~0.6um Heat Insulation thickness 80mm Cooling Jacket Dimple Cooling Jackt Transport Package Steel Frame and Wooden Case Specification as customer request Trademark Zunhuang Origin China Production Capacity 500piece

Product Description

500L beer factory plant mini beer brewing equipment for sale



Simple operation ,PLC automatic control system ,PLC semi-automatic control system.

Equipments characteristics: small investment.quick effectiveness , high quality , lower prices  , the investment repayment is fast , the service life of equipment is long , easy operation , lower cost.Strong technical force.

 At the same time  if  you have requirements, we could design and produce the products you need!

 breweries for sale

Zunhuang series mash system consist of 1 vessel mash system, 2 vessels mash system, 3 vessels and other design, mainly includes mash tank, brew kettle, lauter tank and whirlpool. The main part of  equipment in this system are made of SUS304, SS316 reaching international standard level.(Zunhuang company also can customized high quality copper equipment according to user place.)



Fermenter cooling method is cooling dribbling with standard parameters, layout and control mode in domestic. Zunhuang companies design and manufacture cooling dribbling according to 0.4-0.5 meters per cubic meter cooling area. And the fermentation tank adopt two-stage cooling refrigerant control mode at the end of the cone and the tank level 10--15cm down. So such design and cooling method to control the flow of the cooling liquid state in fermentation tank by the size of the two-stage cooling refrigerant flow. It will improve heat transfer efficiency and cooling rate, faster cooling, and reduce cooling costs and high economic efficiency equipment commercial operation.

1.Malt Milling System

Malt crushing equipment used roller mill, distance adjustable. It is the most simple, a pair of drawing rollers, the two rollers during grinding relative rotation, the rotational speed of a roller is fixed, the other is adjustable. Operation to ensure malt evenly distributed over the entire roller, and feed rate is moderate, consistent feed rate.

Zunhuang series mash system consist of 1 vessel mash system, 2 vessels mash system, 3 vessels and other design, mainly includes mash tank, brew kettle, lauter tank and whirlpool.brewing machine

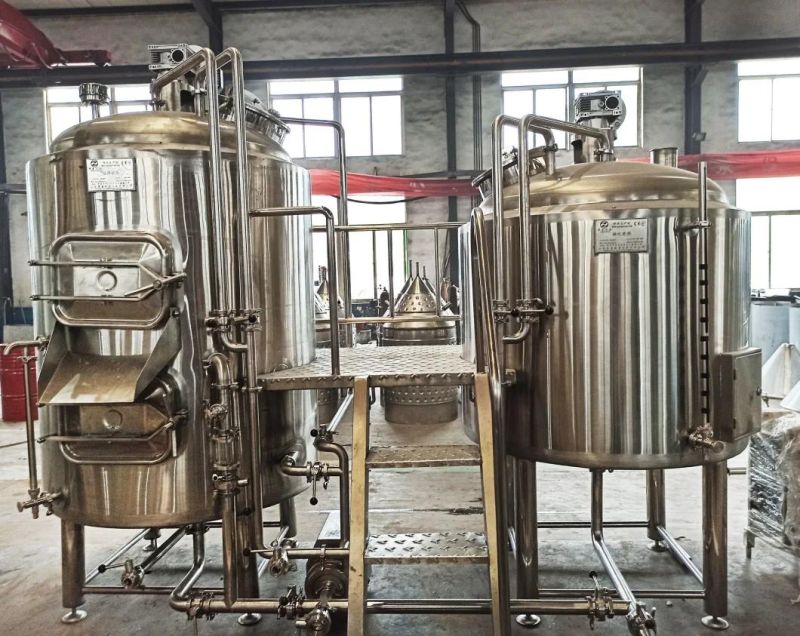

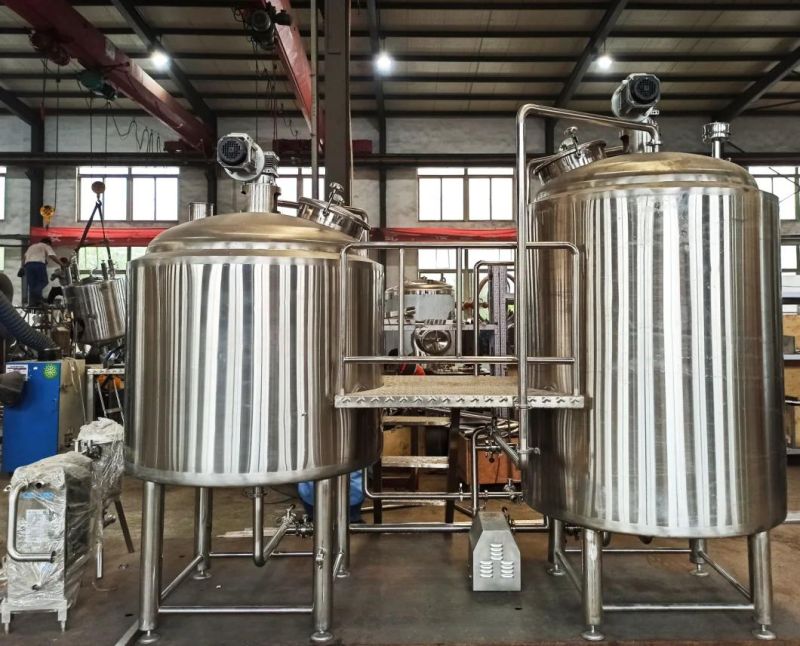

2.Mash system

Zunhuang series mash system consist of 1 vessel mash system, 2 vessels mash system, 3 vessels and other design, mainly includes mash tank, brew kettle, lauter tank and whirlpool.

The main part of equipment in this system are made of SUS304, SS316 reaching international standard level.(Zunhuang company also can customized high quality copper equipment according to user place).

All the pipes and vales among the whole equipment are connected by sanitary joint for easy to connect, install, uninstall, move and alter.

Now Zunhuang equipment adopt electric heating, steam heating, gas heating and direct fire heating method on mash heating system.

Tank date:

1. Capacity: 50L-30000L, 1bbl-100bbl, +25% Head space

2. Interior shell thickness 3-6mm, Exterior shell=2mm

3. 100% TIG welding with pure argon gas shield

4. Interior finish: pickled and passivated, external polished, 80mm insulated

5. Test pressure 3 bar, working pressure 1.5 bar

6. Glycol zones (Both on side and concial/bottom)

7. 60°conical bottom for Fermener, Shadow less side man way

8. Racking arm, Sample valve, Pressure relief valve on the top, Dry hopping on the top

9. Mechanical relief valve 3 bar on CIP arm with pressure gauge

10.Adjustable tank leveling pads
