• Model NO.：YZYX10-6,8WZ
• Condition：New
• Customized：Customized
• Weight：1042kg
• Dimension(L*W*H)：1818*1450*1735mm
• Daily Processing Capacity：4.5 Ton,Day
• Power：11K.W
• Automatic Grade：Semi-Automatic
• Certification：ISO BV SGS
• Place of Origin：Sichuan, China
• After-Sales Service Offered：Engineers Available to Service Machinery Overseas
• Transport Package：Fumigated Wooden Packing, or as Customers′ Request
• Specification：ISO BV SGS
• Trademark：GUANGXIN
• Origin：Sichuan, China
• HS Code：84792000
• Production Capacity：400PCS,Month

Basic Info.

Model NO. YZYX10-6/8WZ Condition New Customized Customized Weight 1042kg Dimension(L*W*H) 1818*1450*1735mm Daily Processing Capacity 4.5 Ton/Day Power 11K.W Automatic Grade Semi-Automatic Certification ISO BV SGS Place of Origin Sichuan, China After-Sales Service Offered Engineers Available to Service Machinery Overseas Transport Package Fumigated Wooden Packing, or as Customers′ Request Specification ISO BV SGS Trademark GUANGXIN Origin Sichuan, China HS Code 84792000 Production Capacity 400PCS/Month

Product Description

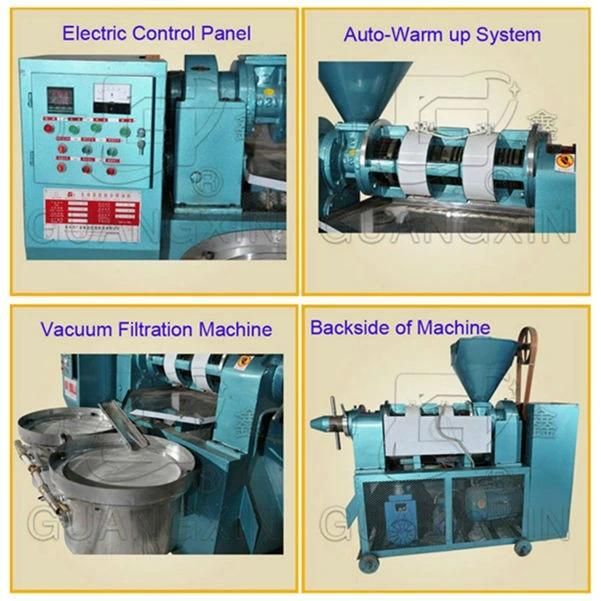

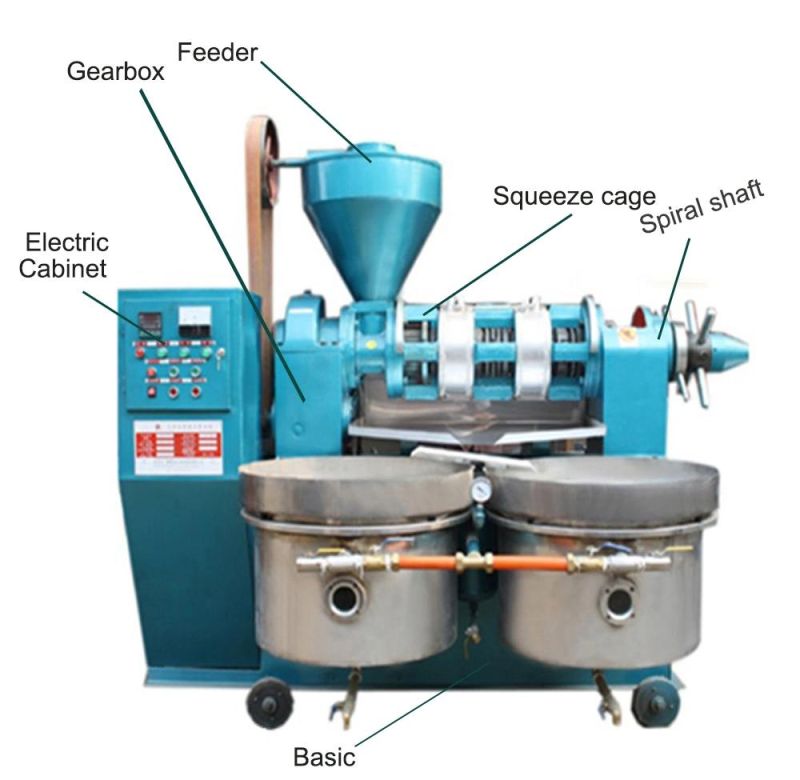

YZYX10-6/8WZ advanced hot selling integrated spiral corn germ oil press is our small combined model. It has heater, squeezing machine and vacuum filter machine in one. The working efficiency is very high. The oil left in cake is only 6.5%, much better than the national standard of 8.0%. It uses spiral mechanical squeezing theory, no chemical substances left in the oil, the oil is healthy and has high quality.



Workflow

The seeds fall into the machine from the hopper. The squeezing machine extracts the oil from the seeds, and then the crude oil directly flow to the vacuum filter to be purified. After that, the oil is clean and edible.


Advantage

This intergration design saves labor cost and land using. It is an ideal equipment for oil factory or pressing oil for clients with material they supplied. Clients could see how the oil is extracted out and trust the oil quality. This type of business is very popular in China rural area.


Standard:
Conforms to GB/T9793.1-19999 of the People's Republic of China and has been ISO and BV certified.


After-Sale Service:

1. We supply spare all year around.
2. We supply technical solutions and helps for buyers at any time.


YZYX10-6/8WZ is Suitable for:

1. Many oil plants, such as rapeseeds, cotton seeds, soybean, shelled peanut, flax seeds, sunflower seeds and palm kernel, etc.
2. Medium and small oil refinery, oil mill and private oil squeezing workshop.
3. Performs well both in cold pressing and hot pressing.

Model	YZYX10-6/8WZ
Processing capacity (t/24h)	4.5
Oil content of dry cakes (%)	≤6.5
Main electromotor power (KW)	11
Pump electromotor power(KW)	1.1
Temperature control power(KW)	2.65
Measurement (mm)	1818×1450×1735
Spiral axes rotate speed (r/min)	32-40
Weight (KG)	1042
