• Cleaning Process：High-Pressure Air Washing
• Style：Robotic Style
• Clean Type：High Pressure Cleaner
• Physical Machine Type：Mechanical Cleaning Method
• Transport Package：Exported Wooden Cases
• Specification：CE
• Trademark：Ghamachine
• Origin：Guangzhou, China
• HS Code：842230190
• Production Capacity：20 Sets,Month

Basic Info.

Cleaning Process High-Pressure Air Washing Style Robotic Style Clean Type High Pressure Cleaner Physical Machine Type Mechanical Cleaning Method Transport Package Exported Wooden Cases Specification CE Trademark Ghamachine Origin Guangzhou, China HS Code 842230190 Production Capacity 20 Sets/Month

Product Description

Summary:
1.GHXP drum-type bottle washing machine is improved and perfected by our company with reference to the models of foreign products.It has the advantages of beautiful overall appearance, reasonable layout, simple mechanism, convenient operation, stable production, etc.
2.The machine is customized according to the two kinds of round bottles provided by the customer. The inside and outside of the bottle are automatically cleaned, and the two purified waters are alternately washed to make the bottle meet the production process requirements and the bottle is initially drained.


Features:
1. With unique structure,the bottle is fixed by mechanical template. And the bottle is washed separately,so the bottle breakage rate is low.
2. Roller-type bottle washing with internal and external photographic processing which ids reasonable by turning the bottle body 360 degrees.
3.The water consumption is small and the bottle has high cleanliness after washing with low water content .Besides, the cleaning speed is adjustable; the operation is simple, and it is convenient to connect with production.
4.The whole machine is mainly made of high quality SUS304 stainless steel, including the bracket part, in line with GMP requirements.


Main technical parameters:

1. Applicable bottle specification: Customized glass bottles
2. Flushing station: 6 per row
3. Production capacity: 700-1300 bottles / hour  Power supply:380V 50Hz 3KW
4. Pure water consumption:0.7-1m3/h   Water pressure:0.4Mpa
5. Single noise:≤70dB    Weight:about 400Kg
6. Dimension about:2000×1300×1700mm

Main component configuration:

PLC/frequency converter	Delta,Taiwan
Touch screen	Weinview, Taiwan
Main electrical components	Schneider, France
Main pneumatic component	AirTAC, Taiwan
Conveyor motor	Chuanming, Dongguan or equivalent quality brand
Water pump	Southern water pump

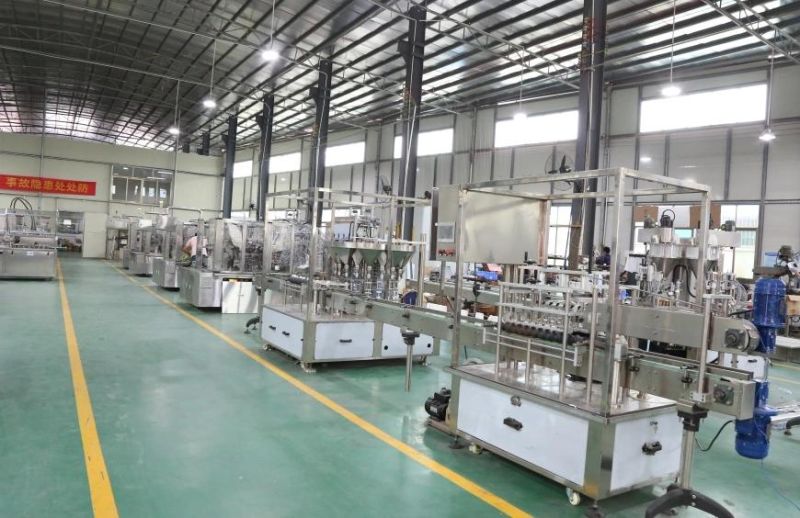

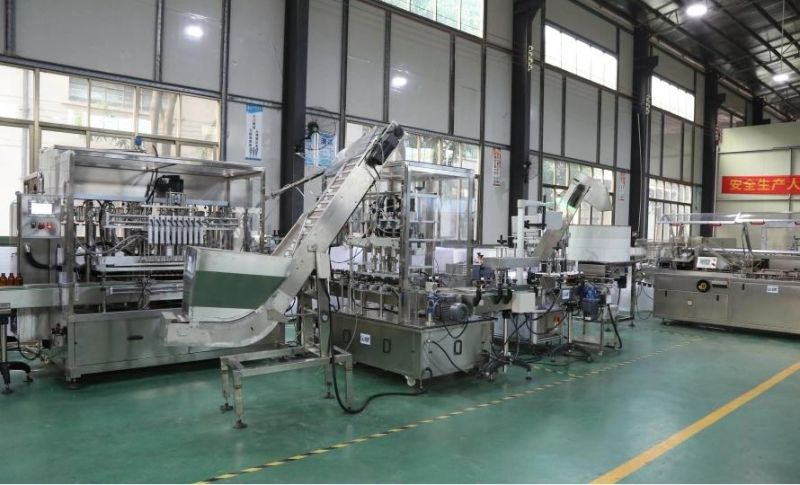

Our factory pictures:
