• Model NO.：GHRXH-B
• Property：Physical Sterilization
• Material：304 Stainless Steel or 316L
• Control System：PLC Control
• Trademark：GuanHe
• Origin：China
• HS Code：9422301090
• Production Capacity：50set,Month

Basic Info.

Model NO. GHRXH-B Property Physical Sterilization Material 304 Stainless Steel or 316L Control System PLC Control Trademark GuanHe Origin China HS Code 9422301090 Production Capacity 50set/Month

Product Description

Introduction: This series of 100-grade cleaning hot-air circulating drier is one of new products that we develop in recent years as we synthesized the characteristic sof electric heat ovens home and abroad. Its elements are solid & reliable, highly automation. It applies to dry and sterilize bottles, glues toppers, aluminum caps in pharmaceutical industry. Oven inlet and outlet and oven inside are also equipped with 100-class high-efficiency filte, completely meeting the requirements of GMP.

Main technical parameters:
.Working temperature: maximum 300ºC
.Temperature even:±2ºC
.The quantity of circulation air fan: 1200-1400M³/h
.Temperature fluctuate:±1ºC
.The way of cool: use wind-cool (according to your need use water-cool)
.The way of hot: electric-heat pipe
.Weight: about 600kg
.Single machine noise: ≤70dB
.Voltage: 380V 50Hz
.Material: 304L-316L
.The dimension of working room:  (W×B×H) (mm) Effective space
    R×H-B-1     800×800×1000      0.64 M³
    R×H-B-2     800×1000×1000      0.8 M³
    R×H-B-3     800×1200×1000      0.96 M³
.Overall dimension: Installed power
    RXH-B-1     1600×1260×1950      14kw
    RXH-B-2     1600×1460×1950      14kw
RXH-B-3     1600×1660×1950      17kw


Characteristics:
.Using Siemens liquid crystal display touch panel (PT) and Omron PLC to control the whole process.
.Display parameter, computer auto type and record and fault alarm display.
.Complete 100-class laminar flow purification system.
.Circulation airflow adjustable, ensure the even temperature in the oven.
.The equipment of motor-driven open-close door links.
.Can set water-cooling system according to customers' requirement.
.Set top,middle,bottom measuring temperature point in oven, it"s convenient for GMP to authenticate.

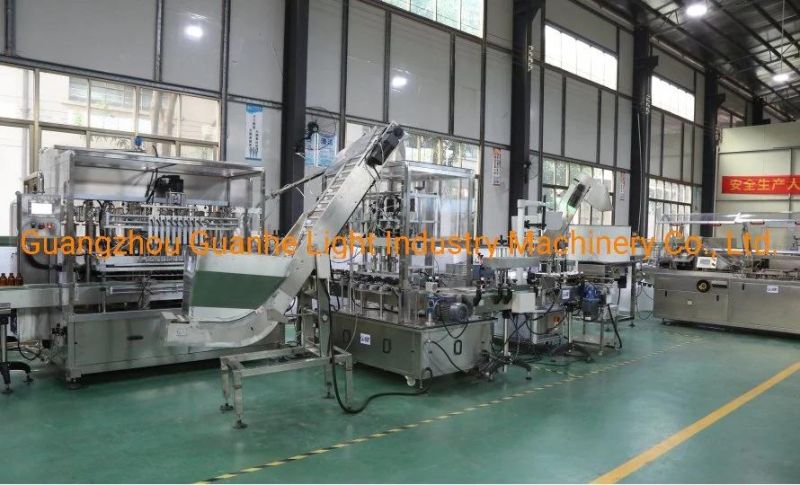

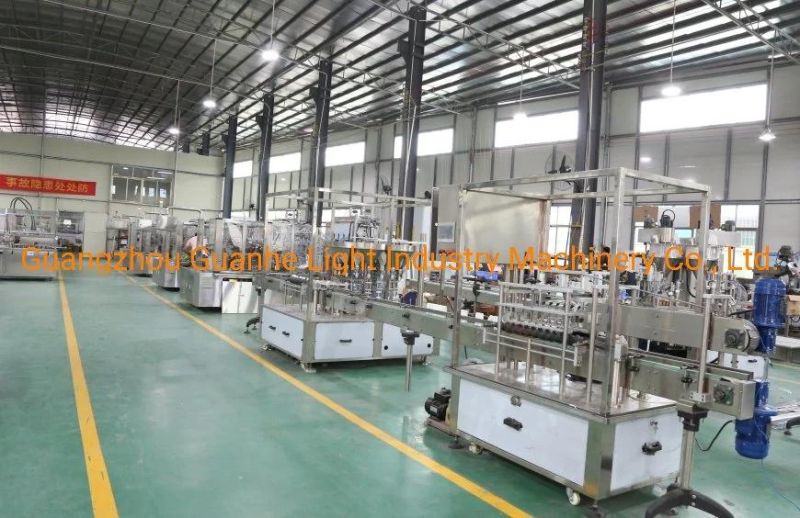

Some pictures of our factory:
