• Model NO.：WSHG series
• Key Wrod 2：Fruit Dryer Machine
• Key Word 3：Sea Food Dryer Machine
• Transport Package：Export Wooden Cases
• Specification：ce co ccc
• Trademark：GMEC
• Origin：Zhengzhou
• HS Code：8474900000
• Production Capacity：50kg,Batch

Basic Info.

Model NO. WSHG series Key Wrod 2 Fruit Dryer Machine Key Word 3 Sea Food Dryer Machine Transport Package Export Wooden Cases Specification ce co ccc Trademark GMEC Origin Zhengzhou HS Code 8474900000 Production Capacity 50kg/Batch

Product Description

Food dehydrator fish dryer beef jerky fruit sea food dryer machine
Features:
Hot air circulation drying oven with low noise axial flow fan and automatic temperature control system, the entire circulatory system closed, high thermal efficiency, save energy, in the role of forced ventilation, dry material evenly.Heat source can be used steam or electricity, low noise, smooth operation, automatic temperature control, easy installation and maintenance, the applicability is wide and can dry various materials, is a universal drying equipment.Herbs,Mango,electuary.


Brief Introduction:
This equipment is mainly used in drying fish, medicine, sesame, vegetables, fruit, seafood, flowers, such as ginseng, red ginseng, ginseng, angelica, cordylines sinensis, honeysuckle, conventional, schisandra, astragalus and konjac, yam, maize seed, tobacco seeds, pumpkin, onion, spinach, brake, wild, carrots, celery, cowpea, chili, beans, tomatoes, mushrooms, mushrooms, agaric, garlic, ginger, raisins, kiwi fruit, banana, litchi, longan, apple, hawthorn, persimmon, scallops, dried fish, kelp, vinasse, chrysanthemum, rose dry food processing, etc. The productivity is high and with low consume.

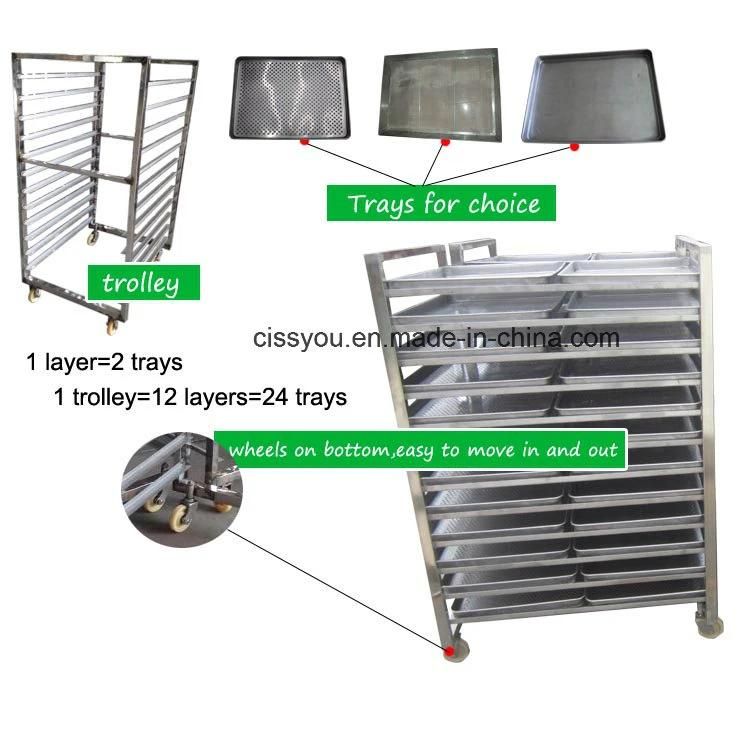

There are trolleys with shelves inside the dryer and many plates on the shelves. You can put your fish in the plates, and then put the plates on the shelves. There are wheels on the trolleys you can push them out of the dryer to put on fish.

The inner wall, the dryer and the plates are stainless.
Temperature and humidity control precision of temperature control in curing barn: accuracy ± 2 degrees Celsius, temperature automatic temperature control.



This Decktop Digital Display Drying Oven machine is made by a low noise anti-high temperature axial flow fan and an automatic control temperature system. The whole circulation system is fully enclosed to make that the heat efficiency of the drying machine increases from traditional 3%-7% to 35%-45%. The highest heat efficiency can reach 50%. This saves lots of energy for our country and increases the economic benefits.

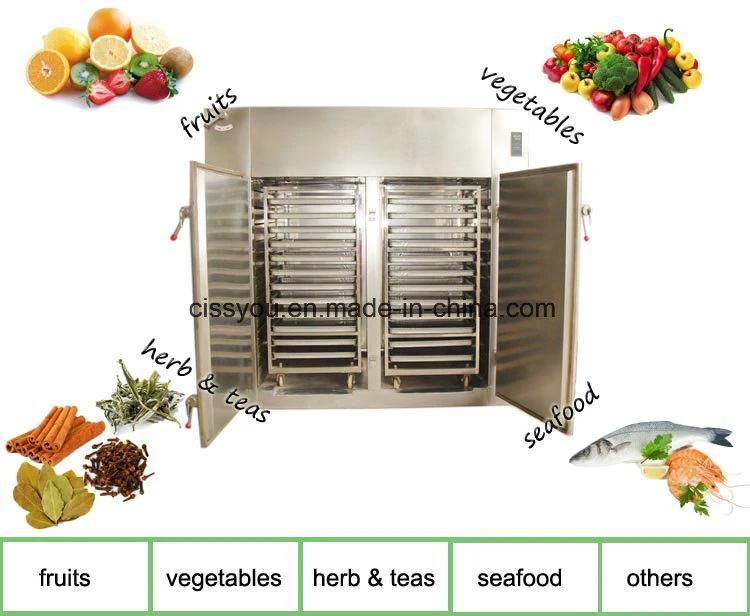

This  Decktop Digital Display Drying Oven is applied to fruit, vegetable, seafood, meat, side product, light industries, heavy dustries and so on.



Characteristic:


1) Most of the hot air is circulated in the Decktop Digital Display Drying Oven By using the forced



ventilationfuntion, there are adjustable air distribution inside the oven. The materials can be dried uniformly.



2) Heating source: electricity, steam, far infrared of steam and electricity.



3) Temperature allowed with this Decktop Digital Display Drying Oven machine: steam heat 50°C-260°C



4) automatic control system and computer control system for your choice.



5) If you have special request, we also could customize the machine  for you.

Model	Number of Trolley	Number of  Plate	Motor	Area of the plates	Productivity (fresh)	Dimension (m)
WSHG-1	1	24	9kw	5.76m²	50kg/batch	1.55*0.8*2.2
WSHG-2	2	48	12kw	11.52m²	100kg/batch	2.1*1.1*2.3
WSHG-4	4	96	18kw	23.04m²	200kg/batch	2.1*2*2.3
WSHG-6	6	144	22kw	34.56m²	300kg/batch	2.6*2.1*2.3
WSHG-8	8	192	30kw	46.08m²	400kg/batch	4*2*2.3*2.62
