• Model NO.：KLD*SJ
• Operation：Continuous
• Energy：Heat Sterilization and Microwave
• Property：Physical Sterilization
• Type：Microwave Sterilization Equipment
• Name：Nutmeg Celery Saffron Kalonji Dalchini Oregano Pow
• Application：Food, Medicine, Chemical
• Sterilization Mode：Thermal Effect & Non-Thermal Effect
• Control System：PLC
• Microwave Frequency：2450 MHz ±50 Hz
• Power：10 Kw-200 Kw, Customize
• Machine Material：SUS
• Voltage：220V, 380V, 415, Customize
• Feature：Efficient & Significantly Effect
• MOQ：1 Set
• Warranty：1 Year
• Function：Sterilization
• Transport Package：It Is Usually Packed in Plastic Film, We Also Can
• Specification：Customized
• Trademark：KLD
• Origin：China ( Mainland ) Shandong
• HS Code：843880000
• Production Capacity：120-2500 Kg,H ( Customized )

Basic Info.

Model NO. KLD*SJ Operation Continuous Energy Heat Sterilization and Microwave Property Physical Sterilization Type Microwave Sterilization Equipment Name Nutmeg Celery Saffron Kalonji Dalchini Oregano Pow Application Food/ Medicine/ Chemical Sterilization Mode Thermal Effect & Non-Thermal Effect Control System PLC Microwave Frequency 2450 MHz ±50 Hz Power 10 Kw-200 Kw/ Customize Machine Material SUS Voltage 220V/ 380V/ 415/ Customize Feature Efficient & Significantly Effect MOQ 1 Set Warranty 1 Year Function Sterilization Transport Package It Is Usually Packed in Plastic Film, We Also Can Specification Customized Trademark KLD Origin China ( Mainland ) Shandong HS Code 843880000 Production Capacity 120-2500 Kg/H ( Customized )

Product Description

Nutmeg Celery Saffron Kalonji Dalchini Oregano Powder Sterilization Machine

Product Overview Principle of microwave sterilization:

1. Thermal effect

Under the action of the microwave field, the molecules of the microorganisms in the product oscillate at a high frequency, which produces a thermal effect. The rapid rise in temperature causes the protein structure to change, thereby losing activity, causing the bacteria to die or be severely disturbed and unable to reproduce.

2. Non-thermal effect

Microwave by causing the microorganisms in the product to produce various physiological changes, biochemical changes and functional changes, and destroy the growth environment of microorganisms in the product, and relax, break, and recombine hydrogen bonds in the DNA and RNA molecular structure of microbial cells, induce gene mutations and chromosomal aberrations, ect , to stop let them die.

 Application of the microwave machinery:

 This type of machine can be applied to meat, meat products, poultry products, aquatic products, fruits, vegetables, canned foods, milk, dairy products, crops, puddings, bread and other foods.  Equipment structure diagram:

  Detailed pictures:

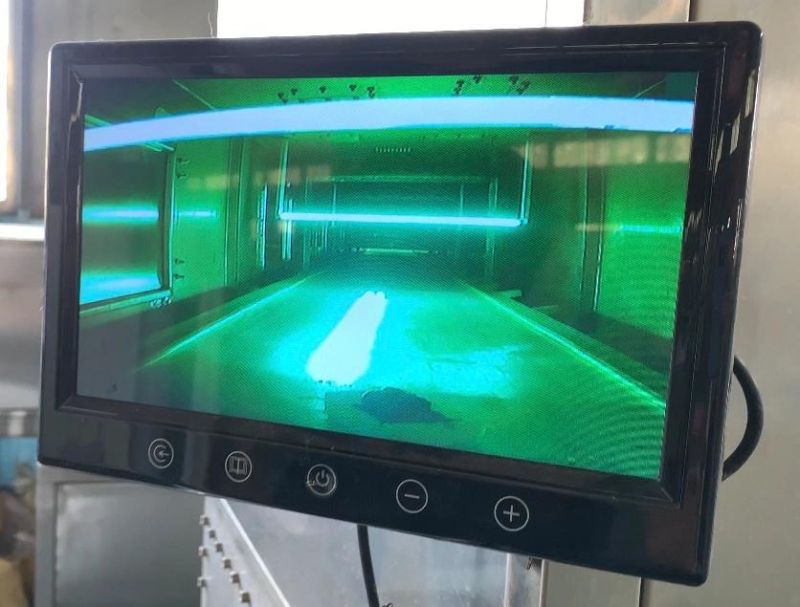

 Adopt high-definition color display screen, workers can observe the inside of the tunnel at any time.

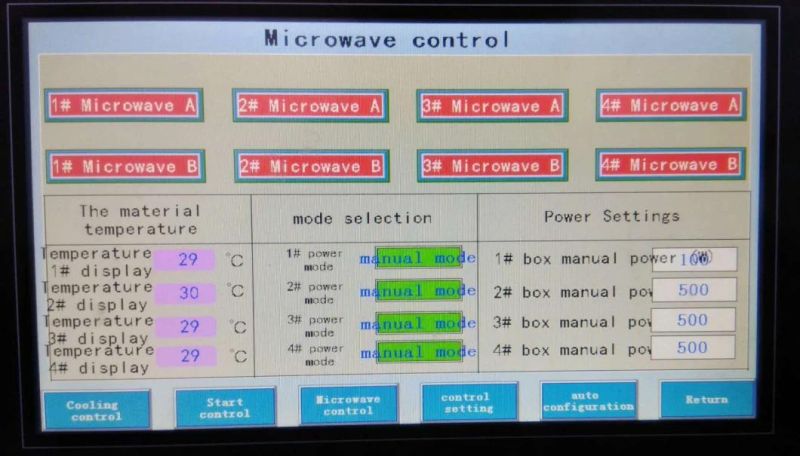

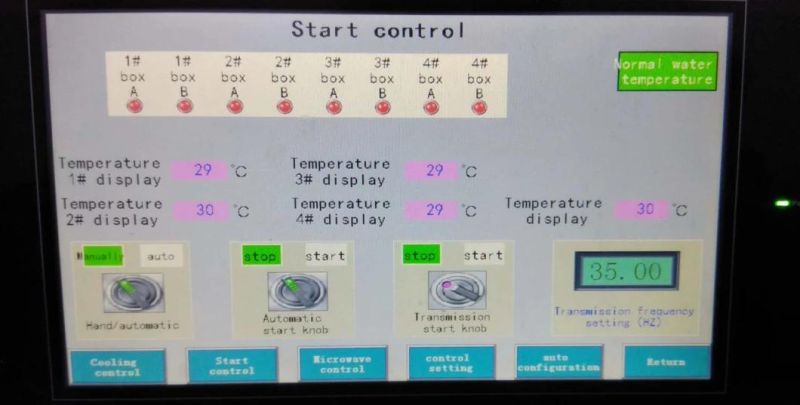

  Adopt Programmable Logic Controller (PLC) and sensitive touch screen make the operation of the machine simple and easy.
  There are two kinds of operating mode, can be setted in the operating system, automatic mode and manual mode. In the automatic mode, workers only need to check the operation of the equipment without operating the equipment, which can greatly reduce labor costs.

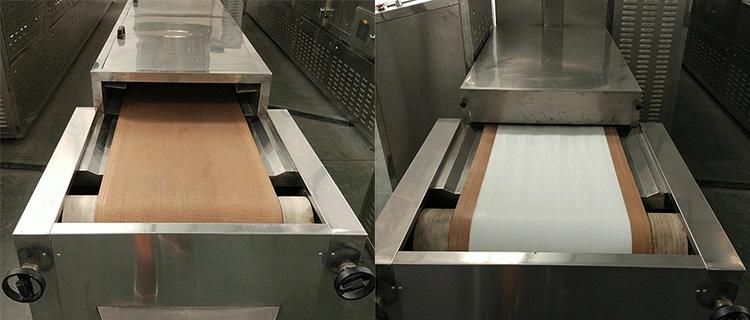

  The conveyor belt and opening can be selected according to the characteristics of raw materials.
  Water-cooled magnetron for continuous non-stop operation.

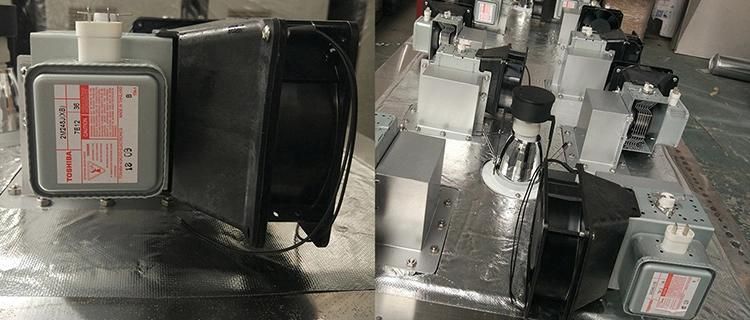

  This is air-cooled magnetron, can not work without interruption, but the price is lower than water-cooled magnetron. This type of magnetron is suitable for low power machine, or the areas with low ambient temperature.

Features and advantages
 Features and advantages of the microwave sterilization machine:

1. Efficient. Microwave can make the product produce heat effect very fast, thus killing microorganisms.



2. Good sterilization effect. Microwave uses both thermal and non-thermal effects to perform deep-level sterilization at the same time inside and outside the product, making sterilization more thorough.



3. High quality of finished product. Microwave sterilization can keep the product's color, fragrance, taste, physical appearance, and nutritional components, etc, to the maximum.



4. Environment friendly. Microwave sterilization will not produce pollution and pollution residues, so it will not affect the environment.



5. Convenient and fast. Microwave can penetrate most of the packaged items. It can sterilize the product after packaging, reduce labor intensity. This can also avoid secondary infection to the product caused by the environment.



6. Easy operation: The operation is simple, stable, safe and friendly.


Machine Parameter


Model	Installed Power (KW)	Production Capacity (kg/h)	Dimension (mm)
KLD-10SJ	10	100-150	7010*840*1750
KLD-20SJ	20	190-240	9350*840*1750
KLD-30SJ	30	300-380	11690*840*1750
KLD-40SJ	40	390-500	10520*1060*1750
KLD-50SJ	50	500-630	11690*1060*1750
KLD-60SJ	60	600-750	12860*1060*1750
KLD-70SJ	70	700-870	14030*1060*1750
KLD-80SJ	80	800-1000	12680*1200*1750
KLD-100SJ	100	1000-1250	15200*1200*1750
KLD-150SJ	150	1500-1850	21050*1200*1750
KLD-200SJ	200	2000-2500	25050*1200*1750

FAQ

Q: What bacteria can this machine sterilize?



A: Including but not limited to Mold, E. coli, Yeast, Salmonella, Coliform, etc



Q.What's the power source of the machine?



A: Eletricity



Q. What's the main matrial of the machine?

A: SUS



Q: What's the voltage of the machine?



A: The voltage can be designed base on your local voltage.



Q: What's the demension of the machine?



A: Machines with different power have different dimension. Bigger power, bigger dimension.


Company Information

Jinan Kelid Machinery Co., Ltd.

We are a food producing and processing machinery supplier with many years experiences. We are committed to providing our customers with high grade machinery and ihtegrated services. Our main products include Puffed snacks/Core filling snack production line, Corn flakes/Breakfast cereals production line, Pasta/macaroni production line, Kurkure/Cheetos/ production line, Nutrition rice/Artificial riice production line, Nutrition powder/Modified starch production line, Breadcrumb production line, Instant noodles production line, Cereals bar production line, Pet food/Fish feed production line, Soya protein production line and Microwave drying&sterilization machine. Look forward to working with you!

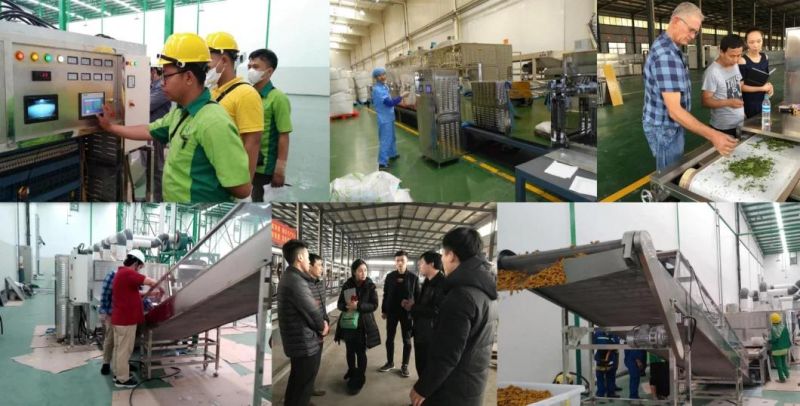

Part Of Client Case
