• Model NO.：HT-QX400
• Transport Package：Fumigation-Free Wooden Case
• Specification：On The Specification
• Trademark：HENTO
• Origin：Henan, China(Mainland)
• Production Capacity：1.5t,H

Basic Info.

Model NO. HT-QX400 Transport Package Fumigation-Free Wooden Case Specification On The Specification Trademark HENTO Origin Henan, China(Mainland) Production Capacity 1.5t/H

Product Description

High Washing Rate Aloe Vera Processing Machine / Aloe Vera Cutting Machine / Fruit And Vegetable Cleaning Machine1.Product Description

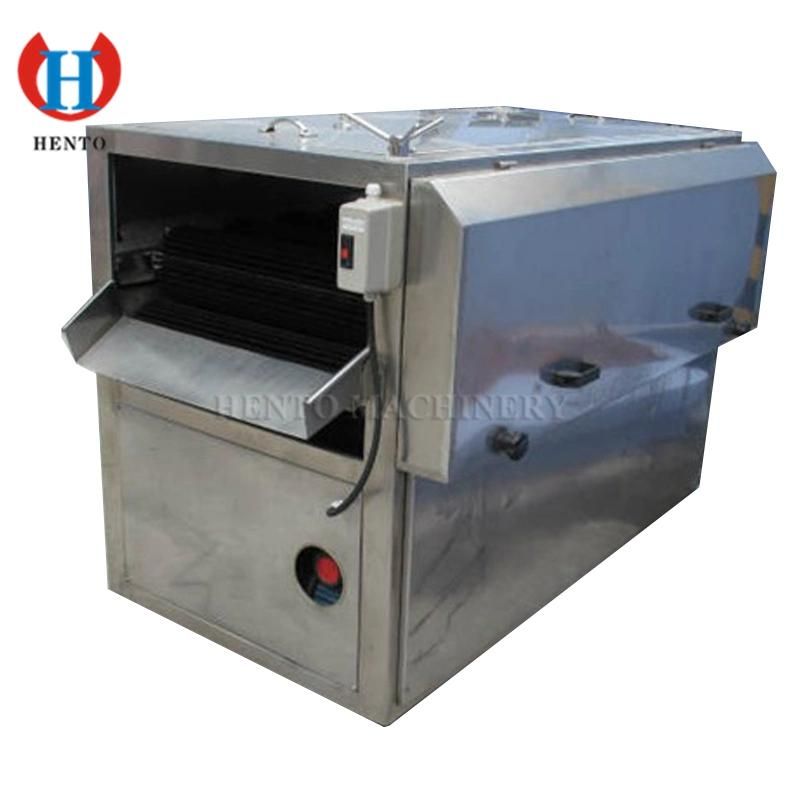

 Aloe Vera Brush Washing Machine:This machine is suitable for diameter plate of fruit and vegetable cleaning. Example: Aloe apples, pears, oranges, mango fruit surface scrub. Main structure and working principle The machine by artificial feeding or promotion on the material into the machine, thematerial between the brush up and down a stick to scrub, material using the rotation of the brush, move forward, spray pipe up and down the dirt and dust on the material to wash, if the hair silk diameter on the brush rod bold, materials can be brushing, materials and under the action of water pressure, soil into the sump tank, also can according to user requirements, to filter set the water in the sink after recycling, the space between the brush up and down a stick, can be adjusted according to the different thickness of the material. Due to the machine design is advanced, the diameter of fruit and vegetable is the most ideal cleaning equipment.

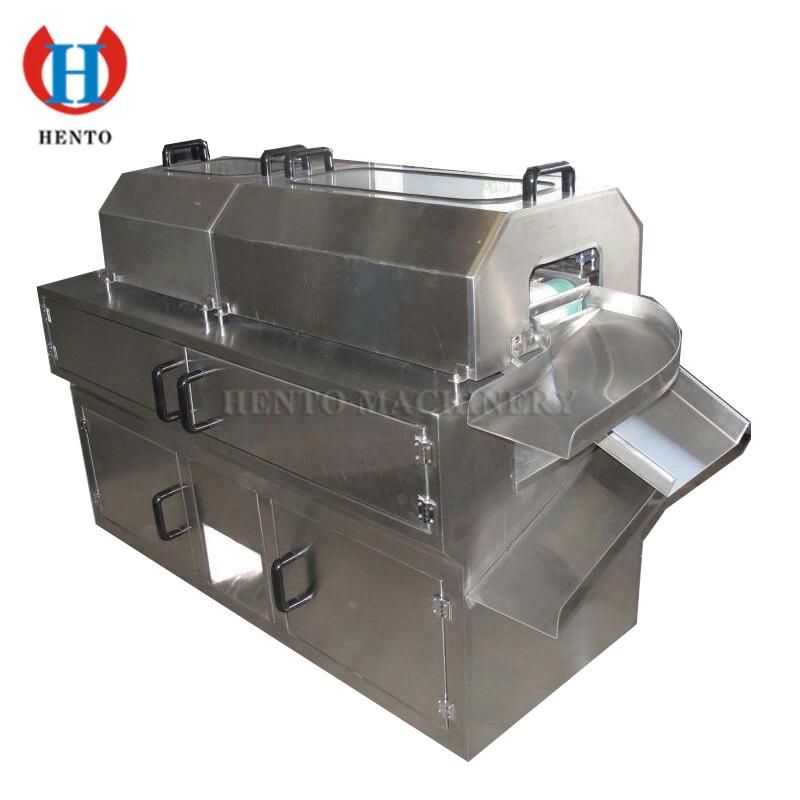

Aloe Vera Peeling Machine:This machine is mainly used for stripping with aloe vera, cactus, etc. The machine frame and engine cover is made of high quality stainless steel, light health for food grade conveyor belt conveyor belt, infinitely variable speed motor adopts frequency converter control, freely control the production speed. The machine features peeling effect is good, high yield, convenient control, etc.This machine consists of frame, conveyor belt, peeling knife, pressure device, transmission device, motor, worm gear reducer, frequency converter and other parts. Motor through a belt pulley, speed reducer, chain wheel, chain drive belt and feeding conveyor belt movement. Working principle Cactus, aloe and other materials after artificial cut off the heads into the peeling machine conveyor belt, the conveyor belt to move forward, to press pressure feeding conveyor belt material, through after peeling knife, up and down material was stripped, the skin of the pulp from the knife up and down through the middle, so as to achieve the aim of peeling.
Aloe Vera Dicing Machine:Aloe Vera Dicing Machine is mainly suitable for dicing strip materials. The whole machine rack and cover are made of high-quality stainless steel. The conveyor is foodgrade conveyor. Motor is controlled by frequency converter, then the production speed can be controlled freely. This machine has good dice cutting effect, with features of high capacity and convenient control etc.

2.Technical Parameter


Machine	Aloe Vera Brush Washing Machine
Power (kw)	1.1kw
Capacity(T/H)	1.5T/H
Material	Stainless Steel 304
Size(mm)	2250*900*1030mm
Weight	400kg



Machine	Aloe Vera Peeling Machine
Capacity	1.5T/H
Electric motor	0.75Kw,220V,1390r/min
Reduction box	WD - 3 m = 3, speed ratio 10:1
Dimensions	1700*550*1300
Weight	270kg



Machine	Aloe Vera Dicing Machine
Capacity	1.5T/H
Electric motor	220/380V 0.75kw 1390r/min
Reduction box	WD-3,m=3,speed ratio10:1
Dicing specifications	5*5mm/8*8mm/10*10mm/12*12m(One machine with two kinds of knives)
Dimension	1500×350×1200mm
Weight	200kg

3.Package & Shipping


4.Company Certificates


5.Our customers


6.Contact Us
