• Model NO.：6YL80
• Condition：New
• Customized：Non-Customized
• Shaft Speed：30-40rpm
• Motor Speed：1440rpm
• Hot Press and Cold Press：Both Available
• Colors：According to your demand
• Capacity：2-3T,D for oil seeds
• Power：5.5KW
• Residue oil in cake：Less than 6%
• Size：1320X540X1020mm
• Weight：300kg
• Transport Package：Wooden Box

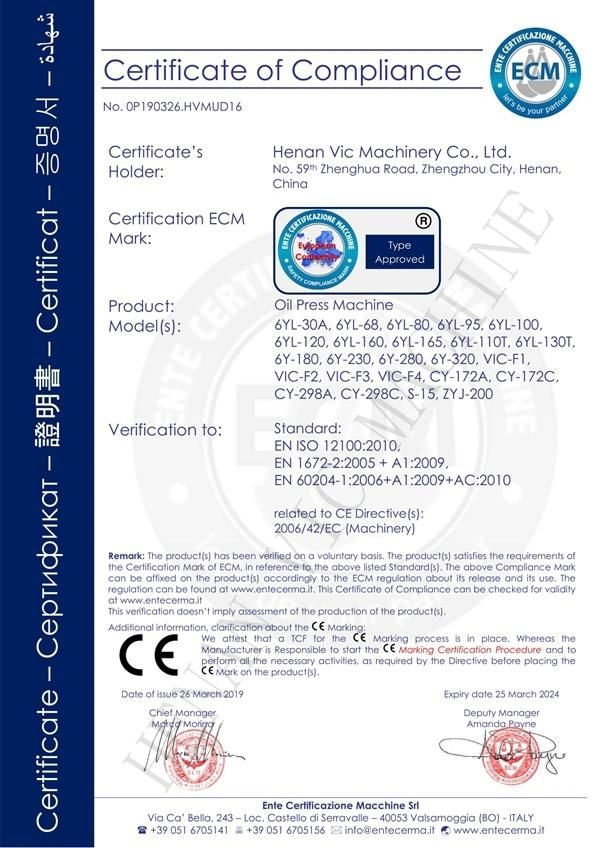

• Specification：CE
• Trademark：VIC
• Origin：China
• HS Code：84792000
• Production Capacity：3000PCS,Year

Basic Info.

Model NO. 6YL80 Condition New Customized Non-Customized Shaft Speed 30-40rpm Motor Speed 1440rpm Hot Press and Cold Press Both Available Colors According to your demand Capacity 2-3T/D for oil seeds Power 5.5KW Residue oil in cake Less than 6% Size 1320X540X1020mm Weight 300kg Transport Package Wooden Box Specification CE Trademark VIC Origin China HS Code 84792000 Production Capacity 3000PCS/Year

Product Description

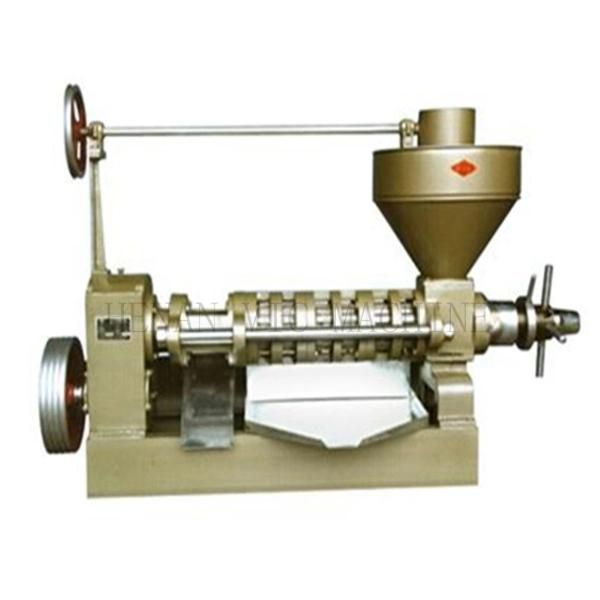

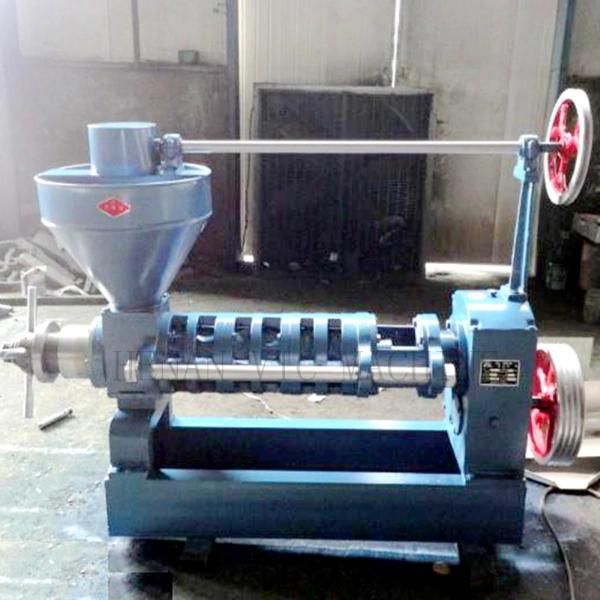

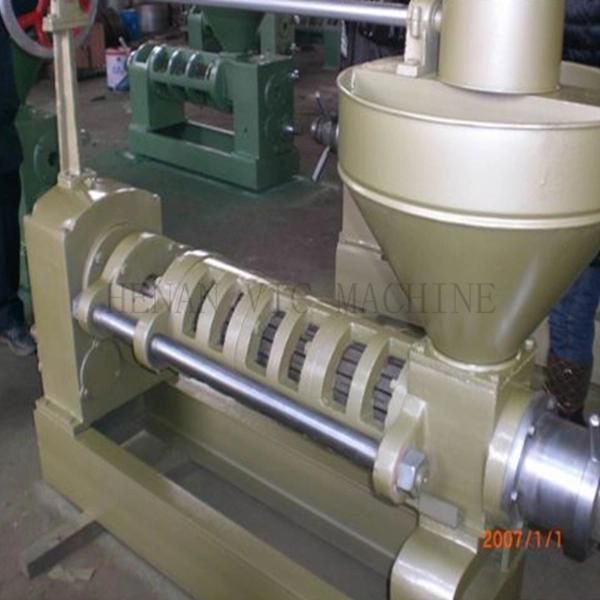

Small Capacity Screw Oil Mill For Oil SeedsApplication:
This screw oil press is an advanced oil press machinery which is widely used in pressing oil from vegetable oil seeds, such as soybean, peanut, sunflower seeds, cotton seeds, sesame, tea seeds, copra, jatropha seeds, castor seed, etc. And the product oil is for both edible and biodiesel fuel purpose. This oil press machine has advantage of high efficiency, low consumption, simple operating, stable function, easy maintainance, high productivity and high oil output.

Advantage
1.Simple and easy operation,one key to start without other operating
2.High oil yield to  the highest 97%
3.Reliable transmission systems are mostly helical gears with greater torque
4. Pure copper motors are more powerful and less failure rate
5. Reasonable design and configuration of strip and round row ensure faster oil output and higher oil yield
6. Stainless steel oil guide plate is cleaner and more sanitary
7 Advanced automatic stirring forced feeding system ensures the uniformity and continuity of feeding
8.Convenient and labor-saving adjustment and disassembly system facilitates product adjustment and maintenance

Technical data:
Model: 6YL-80 oil mill
Capacity: 2-3T/D for oil seeds
Power: 5.5KW
Size: 1320x540x1020mm
Weight: 300KG
Residue oil in cake: Less than 6%
More models

Model	Capacity(kg/h)	Power(kw)	Machine Size(mm)	Weight(kg)
6YL-68	50kg/h	5.5kw	930x490x820	150kg
6YL-68C	50kg/h	5.5kw	930x575x1055	150kg
6YL-68J	50kg/h	5.5kw	930x575x1055	150kg
6YL-80	100kg/h	5.5kw	1307x550x1102	300kg
6YL-95	200kg/h	7.5-11kw	2155x580x1250	550kg
6YL-100	200kg/h	7.5-11kw	2050x550x1180	550kg
6YL-120	300kg/h	11-15kw	2150x610x1300	700kg
6YL-130	450kg/h	15-18.5kw	2180x610x1480	800kg
6YL-160	550kg/h	18.5-22kw	2180x610x1480	900kg
6YL-165	700kg/h	22-30kw	2280x620x1680	1300kg

More picture

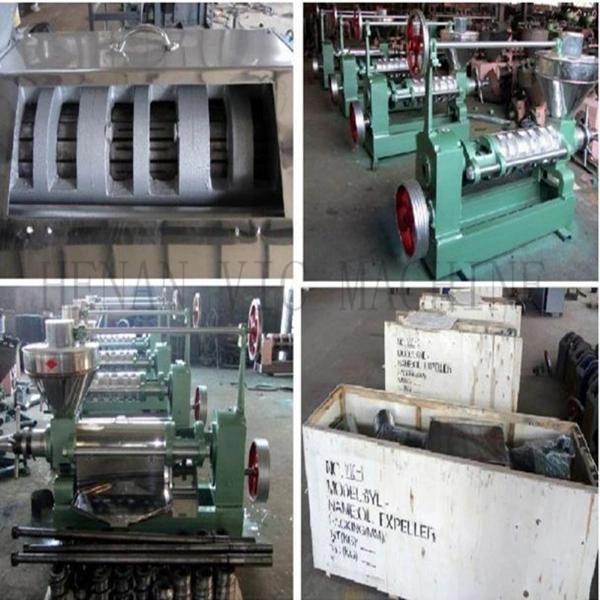

Parts

Final oil

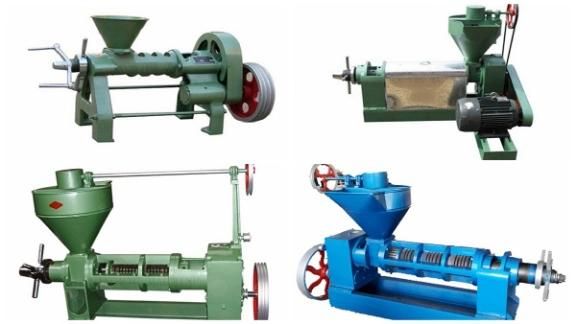

Different oil mill


Package and shipping


Shipping: We can deliver the machines to port within 7-10 days after payment.
Packing: wooden box package as international standard.
Delivery port: Shanghai port or qingdao port of china.
Warranty: one year excluding wearable parts.

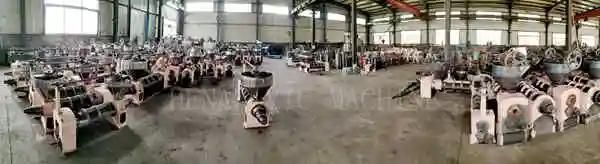

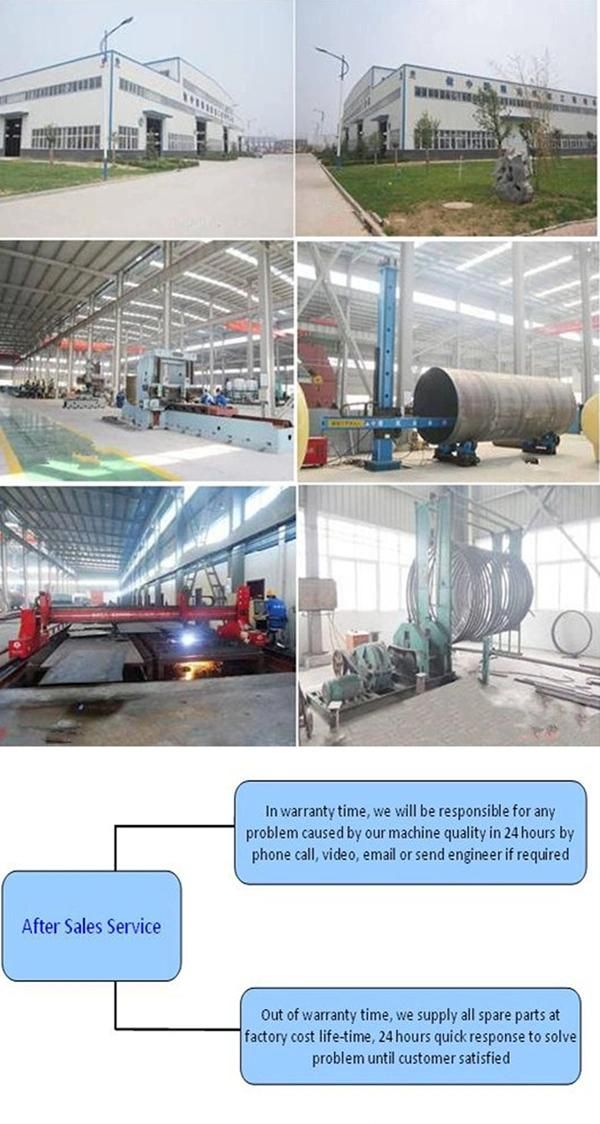

Our factory
 We also can supply comined oil press with vacuum filter and complete set of edible oil processing plant in turkey basis.
Our target is make the best qualified oil press machine and in time service for you, long-term win-win cooperation. Customers all over the world and agents are always welcome
