• Model NO.：tc
• Transport Package：Wood
• Specification：0.4CBM
• Trademark：genyond
• Origin：China
• Production Capacity：90000

Basic Info.

Model NO. tc Transport Package Wood Specification 0.4CBM Trademark genyond Origin China Production Capacity 90000

Product Description

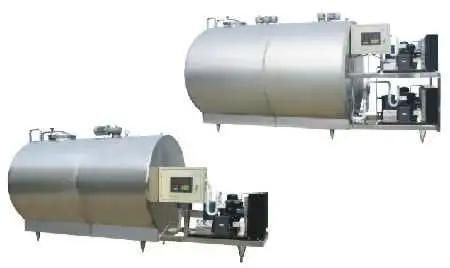

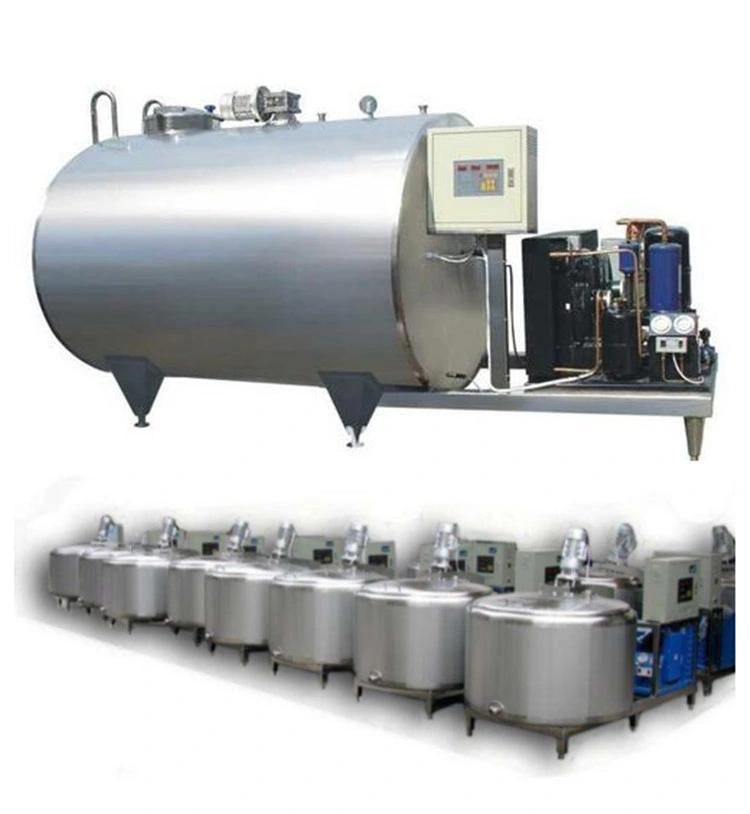

Milk direct cooling tank
Milk cooling storage tank
Milk cooling tank

Description:

The Sanitary grade Stainless steel 304 milk cooling tankis mainly used in cooling to storage milk or other liquid. It absorbs international advanced technology, adopts importing compress machine, safety and protection system, micro computer monitor, advanced technique and equipment such as polyurethane bubbling, honeycomb board evaporator. So it is the ideal cooling and storage equipment for pasture, milk station, milk factory, food factory, and beverage factory and pharmacy industry for keeping the milk raw milk in its best situation and prevents the bacteria.

This system can cooling large area of the inside pot surface, utilizing the automatic computer control system
to observe and operate, which can quickly lower the temperature to 4and keep to this constant temperature,
that prevent from the growth of the bacteria.

The refrigeration compressor unit are choose the excellent performance and energy-saving European
Maneuropcompressor, equipped with the creditable midpoint protector that will prevent the equipment from
burning out caused by over loading or system fault. The heat preservation layer utilized the new technique
of the anti-aging polyurethane blister; it owns the brilliant characteristics of heat in solutions.
The body of the Pot(vessel) make by the high quality stainless steel material 304 (OCr18Ni9),
equipped with automatic cleaning ball and mixing system.

Model: DC-500
Volume: 500L
Dimensions: 1800*1100*1650
Unit name: American Copeland
Unit power: 3P 1 set
Total power: 2.6KW
Refrigerating capacity: 6000 calories per hour
Refrigerating medium R: R22
Insulation performance (temperature) : 1 ºC / 3 h or less
Blender: 0.75KW
Stirring speed (r/min) :36
Voltage: three-phase 380V/50Hz
The tank 2 mm
Cooling plate is 0.9 mm
Outer wrapping is 1.2 mm
Insulation layer 5 cm
Insulation material: polyurethane foaming fluid
