• Model NO.：HT-200
• Condition：New
• Customized：Customized
• Transport Package：Motor Wooden Case, Suitable for Export Packing
• Specification：2*8m
• Trademark：HUATAI
• Origin：Henan Provience, China
• HS Code：84792000
• Production Capacity：20set,Month

Basic Info.

Model NO. HT-200 Condition New Customized Customized Transport Package Motor Wooden Case, Suitable for Export Packing Specification 2*8m Trademark HUATAI Origin Henan Provience, China HS Code 84792000 Production Capacity 20set/Month

Product Description

Brife Introduction of Huatai Cereals and Oils Machinery Co.,Ltd
Our belief is "Seiko Winning". Henan Huatai Factory covers an area of 100,000m², of which the workshop covers an area of over 21600 m². The headquarters is equipped with 8 standard production workshops, 2 machining workshops and 12 engineering installations. Huatai Machinery has 120 sets of various production and processing equipment, including more than 80 lathes, planers, milling machines and drilling machines, more than 10 sets of shearing equipment, 6 automatic welding machines for submerged arc welding, DC welding machines and AC welding machines. Multiple units are also equipped with various auxiliary equipment and testing equipment. Welcome to visit our factory!



Huatai Products list

1. 30~1000T/D rice bran expanding pretreatment process,solvent extracting processing equipment
2. 30~600T/D Rice bran First-grade oil refining equipment
3. Series rice bran molecular distillation refining primary oil complete equipment
4. 30~5000T/D Oil pretreatment, pre-pressing, leaching equipment
5. 50~1200T/D Grease refining equipment
6. 10~2000T/D Corn deep processing equipment
7. 10~1200T/D Palm oil, cottonseed oil refining and separation equipment
8. 30~1000T/D Biodiesel equipment
9. Rice bran oil, cottonseed oil mixed oil refining equipment

Huatai Palm oil Processing Technical
We adopt pressing craft to extract palm fruit oil, the craft is mature and perfect, design is reasonable, self- supply production mode not only save production cost but reduces environment pollution, and it benefits recycling and utilization of resource. According to actual conditions of project country, this project includes oil processing section, water treatment section and power supply section etc.
Capacity: 5~100TPH

Technical Indexes of Palm Oil Pressing Workshop
(1)Crude palm oil standard:



FFA :	<= 5 %
Moisture :	<=0.1 %
Impurity:	<=0.02 %

(2)Palm Kernel Standard :

Crushing rate:	<= 15 %
Moisture:	<=7 %
Impurity:	<=6 %

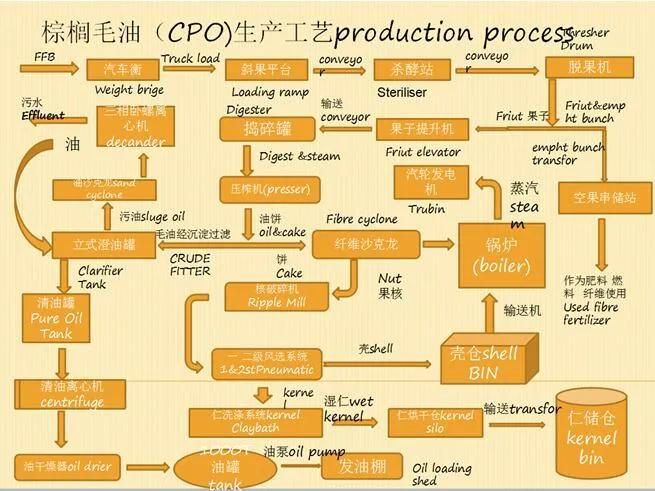

Palm Crude Oil Production process Line





Part of Palm fruit and kernel making oil equipment list

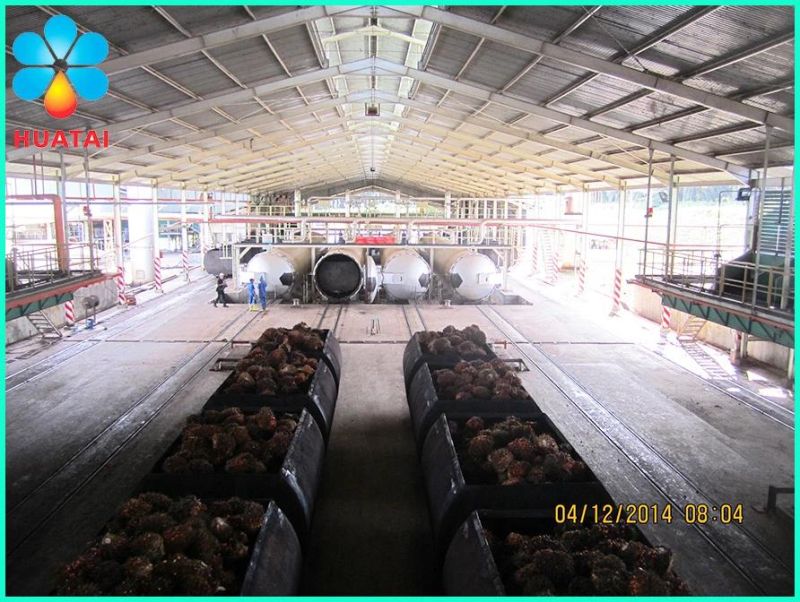

Sterilization tank: Cook the fruit bunches with high temperature and sterilization (145 ºC, 90-120minutes), easy to separate fruit from bunches, fruit becoming soft, increasing the humidity of the fruit, it is easy to extract the oil and also make the separation of the core-shell easier, preventing enzymatic decomposition to avoid free fatty acids content rising.

Fruit cages + horizational stailizers

Horizational stailizers have advantages than the workshop no need too high, and  the capacity can be large.


Vertical stailizer can save workshop area, while its volume can not be too large.

 Digester: crush the fruit into  small pieces, thus can make oil press easily.



Splitter: Separate the fruit core and fiber. Blow fiber and other lighter things outside.


Pressing Machine of Palm oil Processing Equipment: Separate the pulp and nut, get CPO and nut, press machine adopts the double screw hydraulic continuous discharging, greatly improving production efficiency.

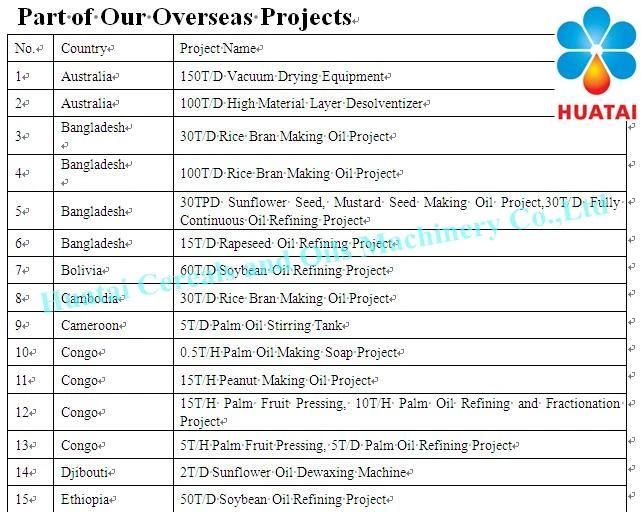

Part of Henan Huatai Cereals and Oils Machinery Oversea Projects

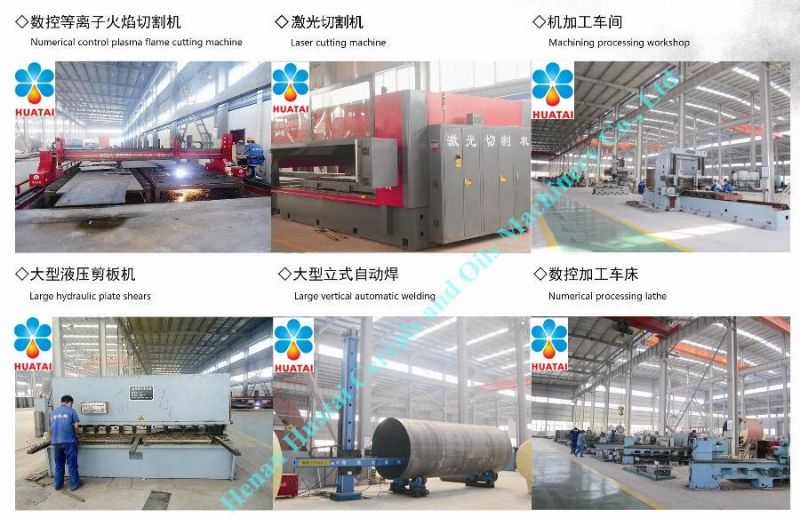

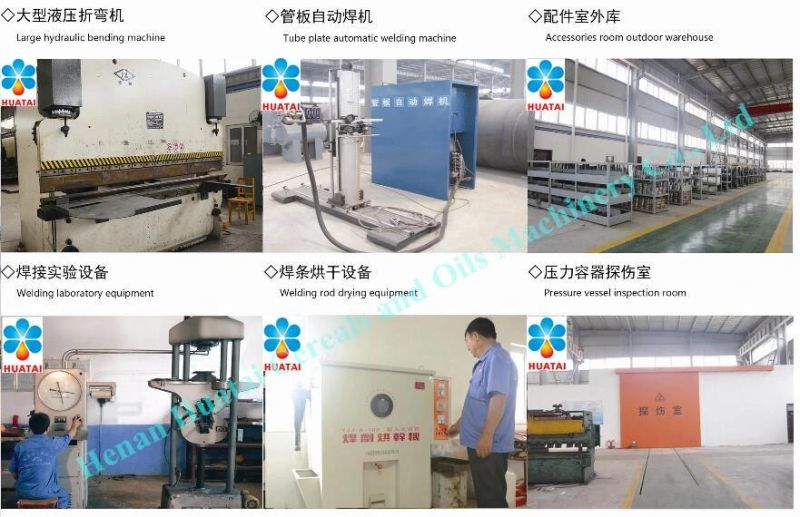

Huatai Workshop advanced processing Technology
