• Model NO.：kq400
• Power：Manual
• Connection：Welded, Quick-Installed, Threaded
• Polish：Mirror Polish, Dull Polish, Sub-Light
• Applications：Pharmacy, Beer, Food, Petroleum, Dairy Beverage
• Transport Package：Standard
• Specification：CE
• Trademark：KQ
• Origin：China
• HS Code：8479820090
• Production Capacity：10000

Basic Info.

Model NO. kq400 Power Manual Connection Welded, Quick-Installed, Threaded Polish Mirror Polish, Dull Polish, Sub-Light Applications Pharmacy, Beer, Food, Petroleum, Dairy Beverage Transport Package Standard Specification CE Trademark KQ Origin China HS Code 8479820090 Production Capacity 10000

Product Description

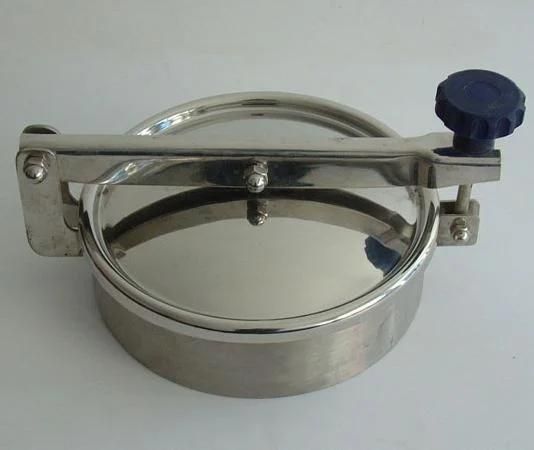

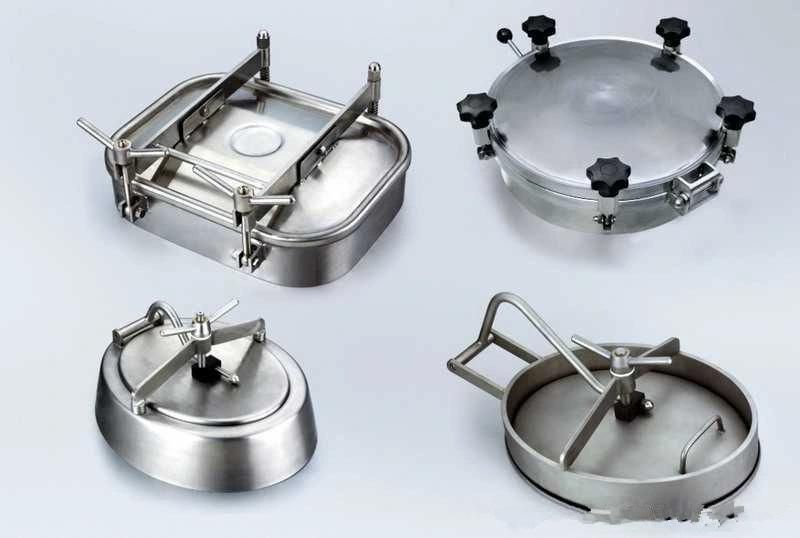

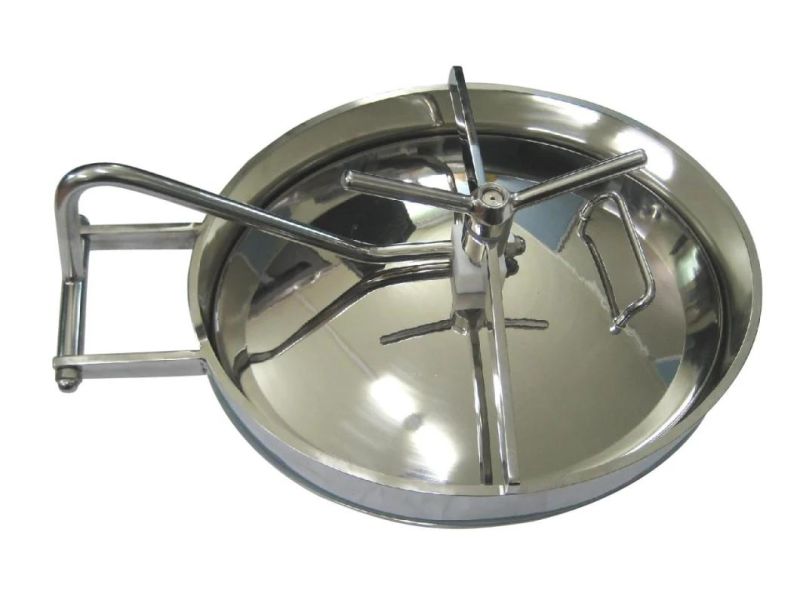

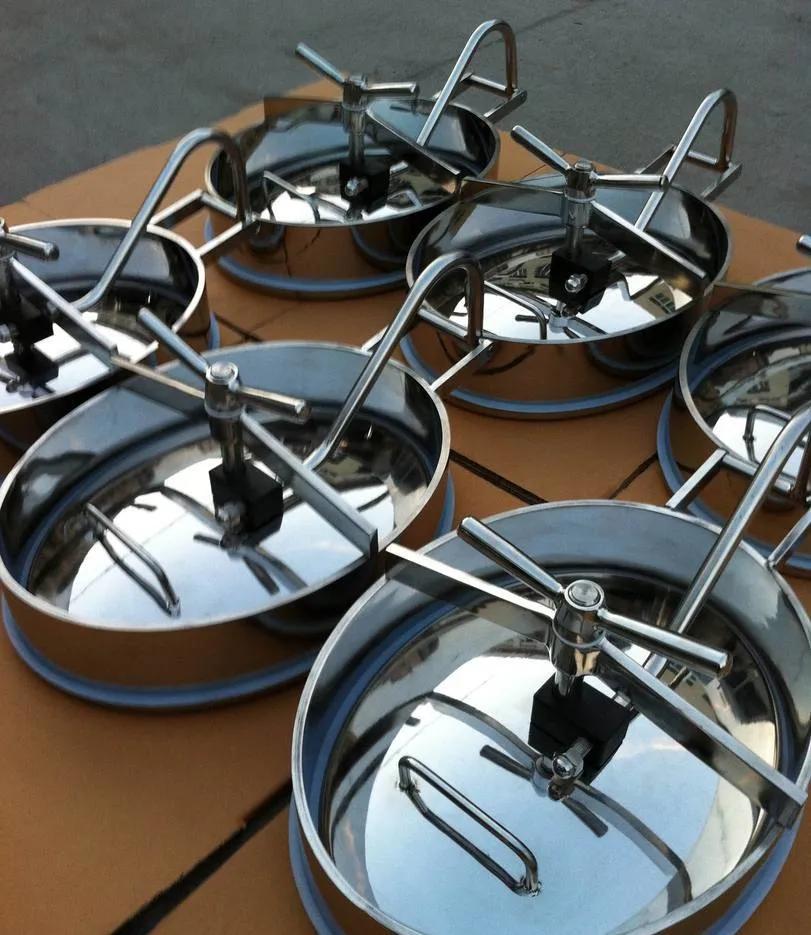

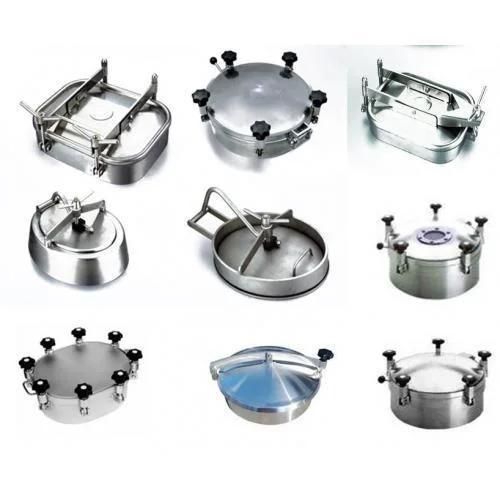

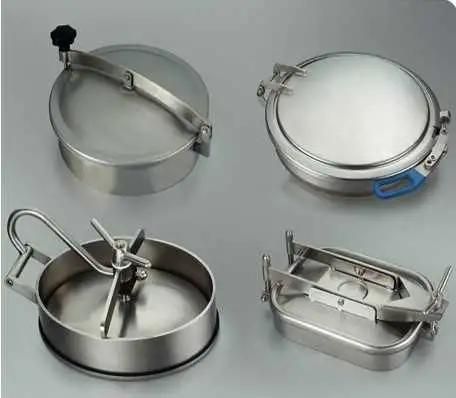

Sanitary stainless steel manhole cover
Atmospheric Pressure Type Manhole Cover Manway




1) Specification: DN400/450/500
2) Standard: DIN, SMS, ISO, 3A, BPE, CMP, IDF
3) Material: Stainless steel 304, 316L
4) Connection: Welded, quick-installed, threaded
5) Polish: Mirror Polish, dull Polish, sub-light, 240G, 400G, tumble.
6) Applications: Pharmacy, beer, food, petroleum, dairy beverage, cosmetics
Technical Data:

Intward openning manway

Available Handle:Plastic handle wheel or stainless steel handle wheel

Internal surface:Ra0.8um~0.5um

Outside surface:Mirror Polished and dull polished

Max.pressure:5.0bar

Gasket:EPDM,NBR,SILICONE,FPMIN accordance with FDA177.1600

Height:75MM,100MM,120MM,150MM.The height(H1)can be changed to 120MM,150MM,etc.The thickness can be changed according to request of customers.

Material:AISI304(1.4301)/316L(1.4404)

Specification:435mm*335mm,530mm*430mm,635mm*525mm

Connection ends:Welded

We also supply butterfly valve,ball valve,check valve,diaphragm valve,safety valve,union parts,ferrule,end cap,nut,clamp,elbow,tee,cross,reducer,sight glass,manhole cover,cleaning ball,centrifugal pump,pipe holder etc...




Advantage: Prompt quotation, competitive price, punctual delivery and guaranteed quality.
Shanghai Kaiquan Machine Valve Co., Ltd., located in the South of Shanghai, is a modern enterprise which integrates scientific research and production.We are one of the few manufacturers which are capable of producing high-precision stainless steel sanitary equipment and pipeline connection parts. Our products adopt production craft and technology from the EU.Meanwhile, we import foreign advanced numerically controlled machine tools and other process/inspection units.
Atmospheric Pressure Type Manhole Cover Manway
