• Parts 1：Mash,Lauter Tun + Boil Kettle + Whirlpool Tun
• Parts 2：Mash(Kettle) Tun + Lauter Tun + Boil Kettle,Whirl
• Parts 3：Hot Water Tank for Option
• Parts 4：Lauter Tun with Milled False Bottom, VFD Motor, Sp
• Parts 5：Mash Tun with Electric Heated or Steam Jacket.
• Parts 6：Plate Heat Exchanger
• Parts 7：Sanitary Centrifugal Pump
• Parts 8：Digital Control Panel or PLC Control System
• Warranty：2 Years
• Drawing：Provided Before Production, Customized
• Transport Package：Iron Frame + Wooden Box
• Specification：300L-20000L
• Trademark：Cassman
• Origin：Jinan
• HS Code：8438400000
• Production Capacity：50000PCS,Year

Basic Info.

Parts 1 Mash/Lauter Tun + Boil Kettle + Whirlpool Tun Parts 2 Mash(Kettle) Tun + Lauter Tun + Boil Kettle/Whirl Parts 3 Hot Water Tank for Option Parts 4 Lauter Tun with Milled False Bottom, VFD Motor, Sp Parts 5 Mash Tun with Electric Heated or Steam Jacket. Parts 6 Plate Heat Exchanger Parts 7 Sanitary Centrifugal Pump Parts 8 Digital Control Panel or PLC Control System Warranty 2 Years Drawing Provided Before Production, Customized Transport Package Iron Frame + Wooden Box Specification 300L-20000L Trademark Cassman Origin Jinan HS Code 8438400000 Production Capacity 50000PCS/Year

Product Description

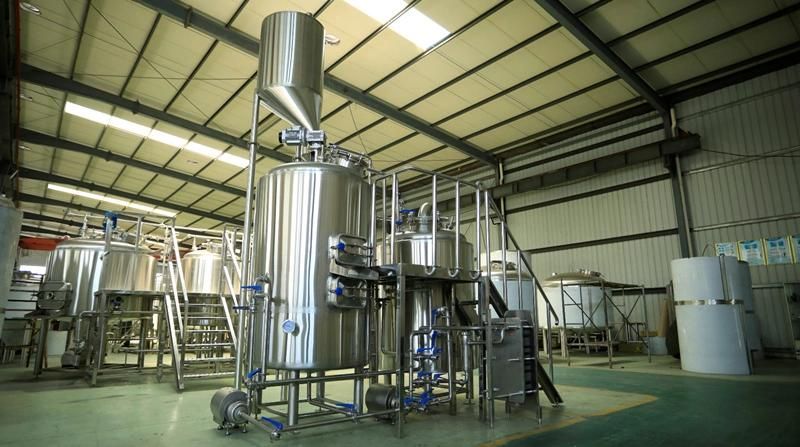

Cassman 500 Liter Micro Brewery System Beer Brewing Equipment

1. 500L electric heating brewhouse system description:

One tank for lauter tun,another tank for mash/kettle/whirlpool.
With wort pump,frequency converter,plate heat exchanger,hop filter,wort hoses,control system and other necessary accessories.
Accept customization.





2. 300L electric heating brewhouse system parameters:

Lauter tun:

Lauter tank with rake system and false bottom
• Working capacity:200L(+25% Head space)
• Interior Shell:SUS304 Stainless Steel,thickness: 3.0mm;
• Exterior Shell:SUS304 Stainless Steel,thickness: 2.0mm;
• 100% TIG welding with pure argon gas shield
• Interior Finish: Pickling passivation
• Insulation:Polyurethane-thickness:80mm.
• Heating: Electricity
• Grain rake with motor and turbine reducer,
• The motor with Frequency converter
• Full size stainless steel top mounted man way
• Side mounted grain outdoor with grain chute
• Laser cutting V-wire False Bottom/Sieve plate,with handle
• Plate thickness:0.7 mm, form:Strip-shaped holes
• 360°coverage CIP spraying ball with 2 pieces
• Easy clean and detachable sparging spray ring
• PT100 temperature sensor
• Adjustable support legs 4 pieces.

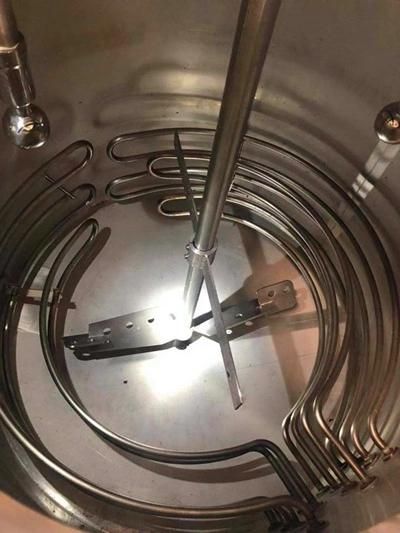

Mash/kettle/whirlpool:

Mash/Wort boiling and whirlpool, heated by electric, with Tangential whirlpool inlet
• Working capacity:200L(+25% Head space)
• Interior Shell:SUS304 Stainless Steel,thickness: 3.0mm;
• Exterior Shell:SUS304 Stainless Steel,thickness: 2.0mm;
• 100% TIG welding with pure argon gas shield
• Tangential whirlpool inlet
• Interior Finish: Pickling passivation
• Insulation:Polyurethane-thickness:80mm.
• Heating way: electricity
• Level gauge
• Full size stainless steel top mounted man way
• 360°coverage CIP spraying ball with 2 pieces
• PT100 temperature sensor
• Adjustable support legs 4 pieces.

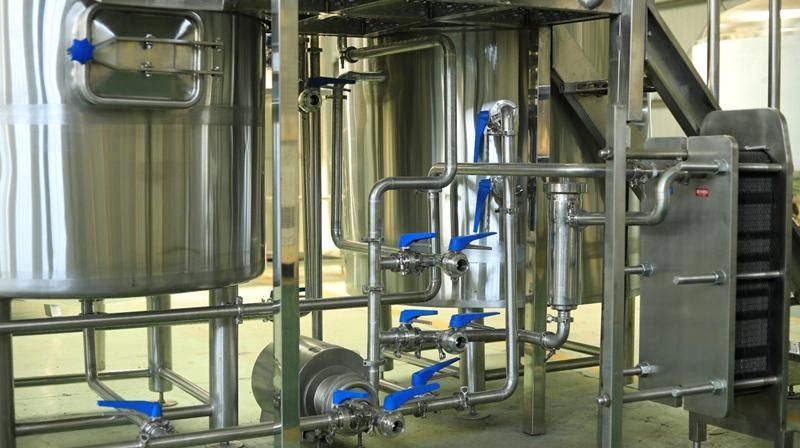

3. Brewhouse system details:

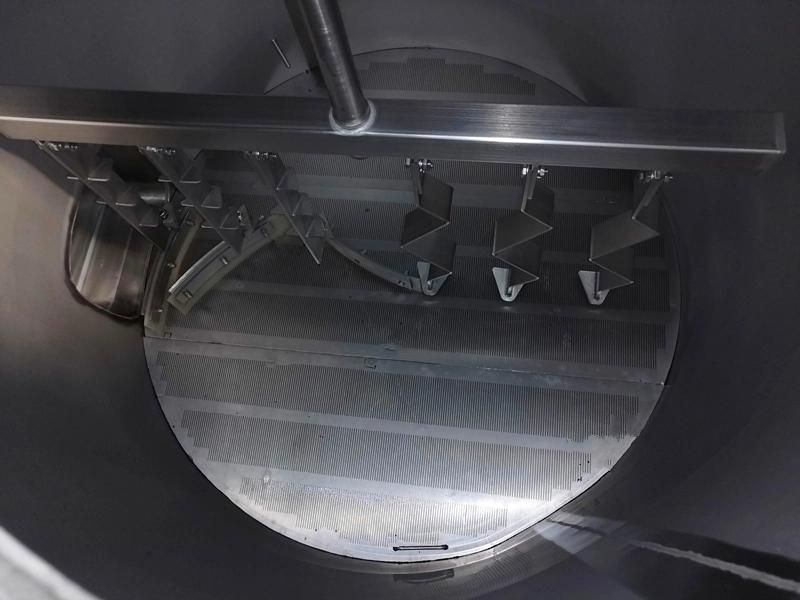

   Lauter tun

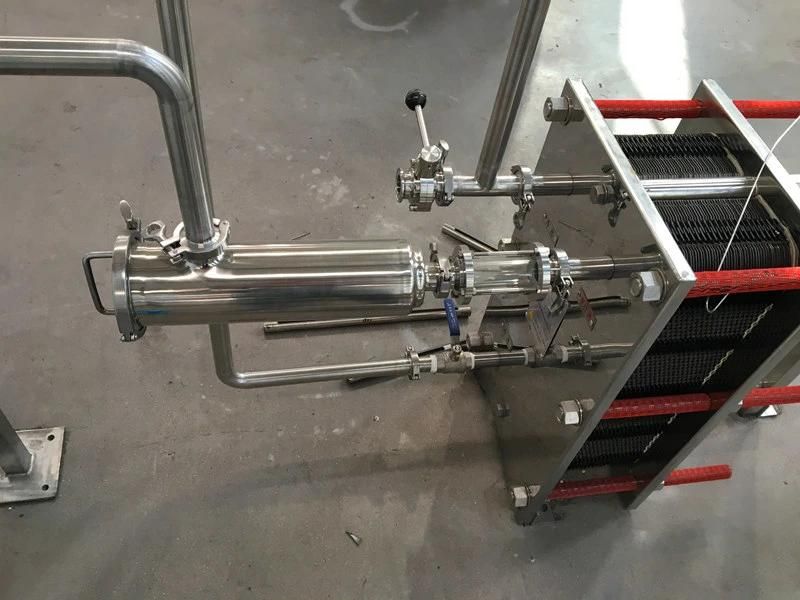

Heat exchanger and hop filter
