• Model NO.：CQ
• Capacity：0.5-2.5ton,Class
• Weight：1000-6200kg
• Power：9-28kw
• Material：Stainless Steel
• Color：Silvery
• Transport Package：Wooden Case
• Specification：CE, ISO9001: 2008
• Trademark：tgmachine
• Origin：Shanghai
• HS Code：84381000
• Production Capacity：1 Set,2 Monthes

Basic Info.

Model NO. CQ Capacity 0.5-2.5ton/Class Weight 1000-6200kg Power 9-28kw Material Stainless Steel Color Silvery Transport Package Wooden Case Specification CE, ISO9001: 2008 Trademark tgmachine Origin Shanghai HS Code 84381000 Production Capacity 1 Set/2 Monthes

Product Description

Application:

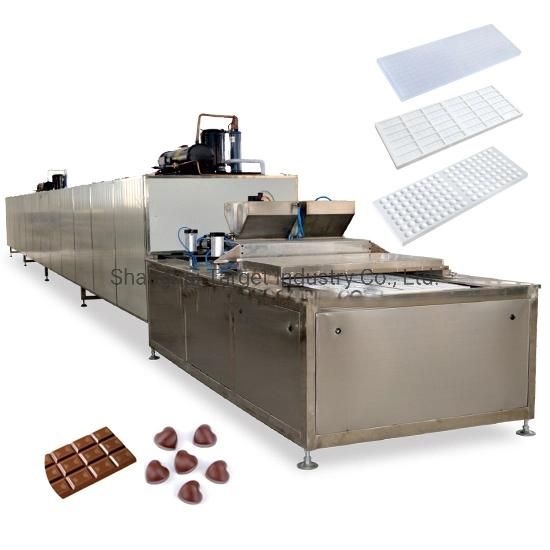

The moulding line is for chocolate deposit forming. The whole process is fully automatic including depositing,mould plate vibrating,cooling,demoulding,conveying and plate heating.You can choose one head,two heads or three heads moulding line for different products.The line is suitable for pure chocolate,center filled chocolate,two color chocolate,four color chocolate,amber or agate chocolate,etc.

Technical Parameters:

Model Project	Q110	Q111	Q112	Q113
Capacity ton/class	0.5~1.5	0.8~2.5	0.8~2.5	0.8~2.5
Total power lncluding freezer	9	21	23	28
Refrigeration quantity kcal/hour	Don't have	21800	21800	21800
Mould plate size mm	275×175×30	280×200×30	280×200×30	280×200×30
Mould plate quantity (m)	270	270	380	420
Weight (kg)	1000	4800	5800	6200
Outside dimensions mm	3600×725×1560	17010×1010×1330	17060×1005×1870	18600×1200×2400

After-sale services for all the customers
a. Free training of machine installation, operation and maintenance will be provided;
b. Some spare parts will be sent together with the machine for free and some spare parts are always at favorable price for regular customers;
c.Technical support will be offered by call, email or video etc;
d.If necessary, our engineer will go to your factory for machine installation, adjustment or maintenance.

Wooden packing
1.Product production is completed, by the quality inspection department to check
2.After inspection qualified, clean for whole machine
3.Packing: a. Inside the machine put desiccant b. Add 6 cm thick foam plate around the machine, Then, winding stretch film for reinforcement, and combined with bubble wrap c. On wood packaging on the outside of the machine, then use metal reinforcement with steel
4.Container:according to different products for reinforcement
